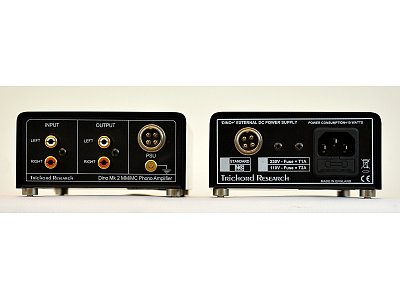

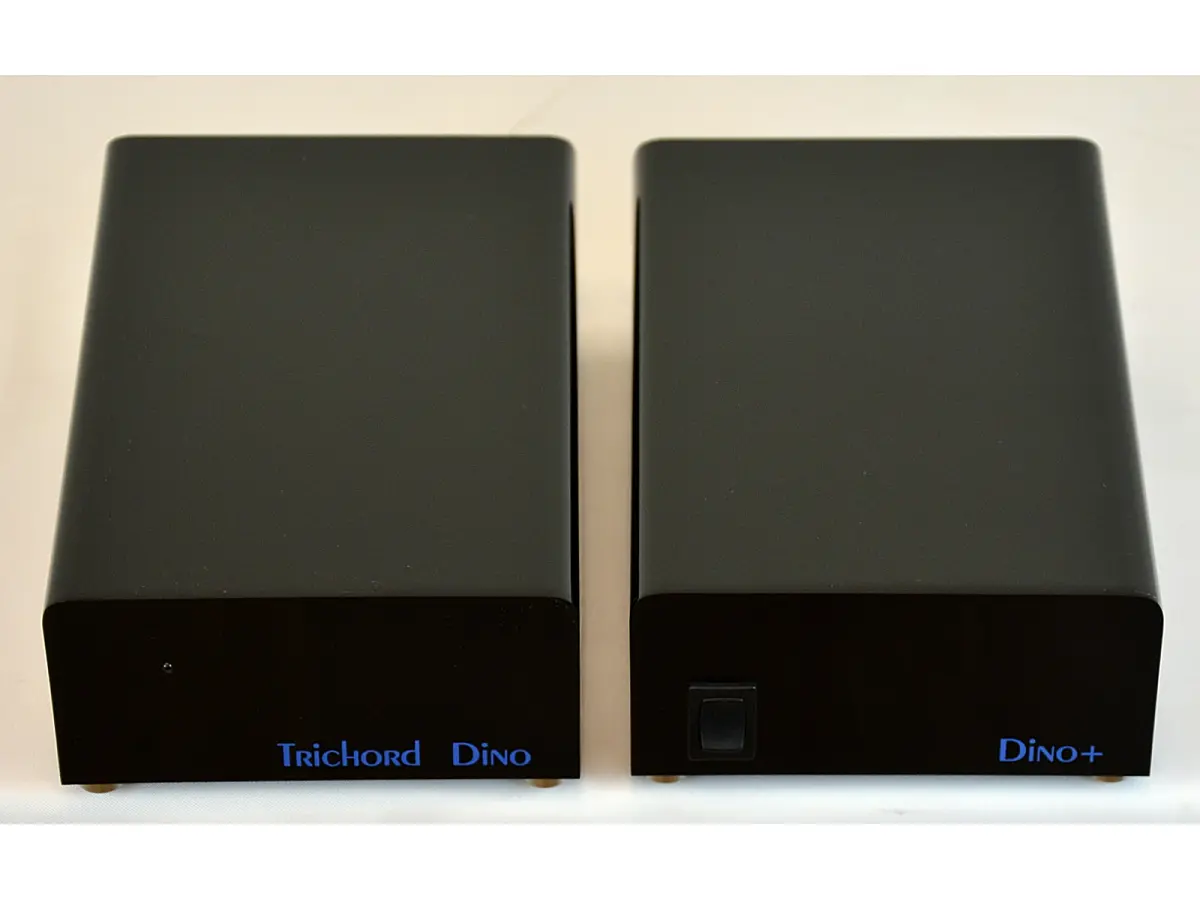

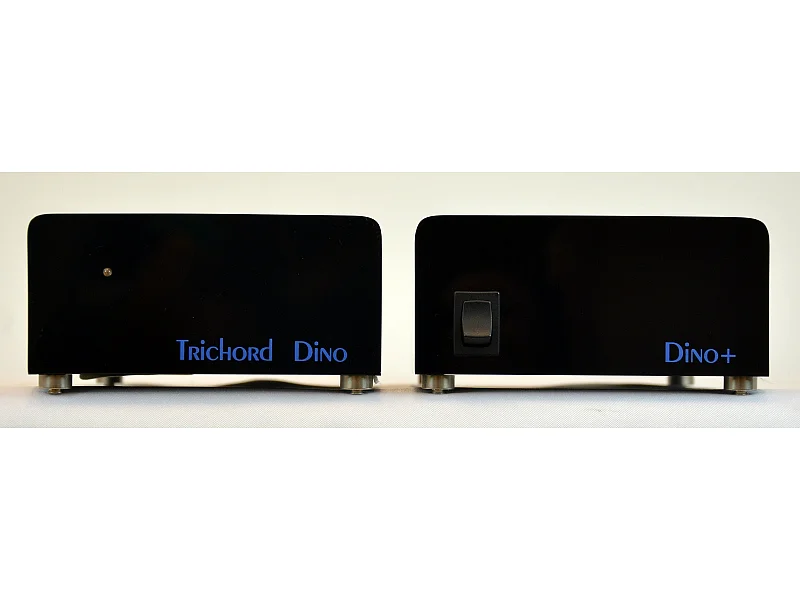

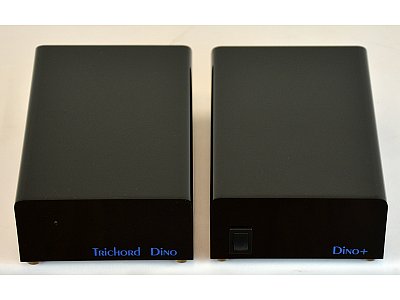

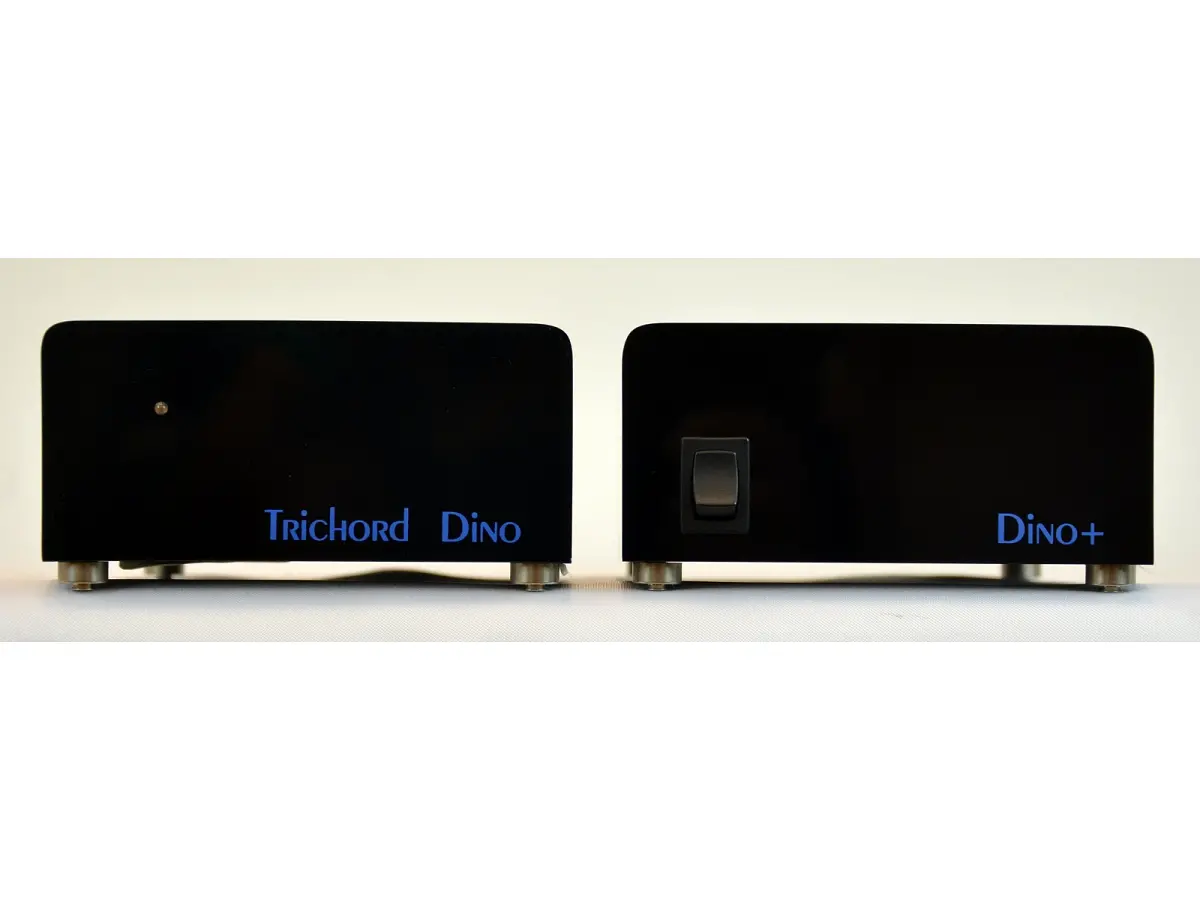

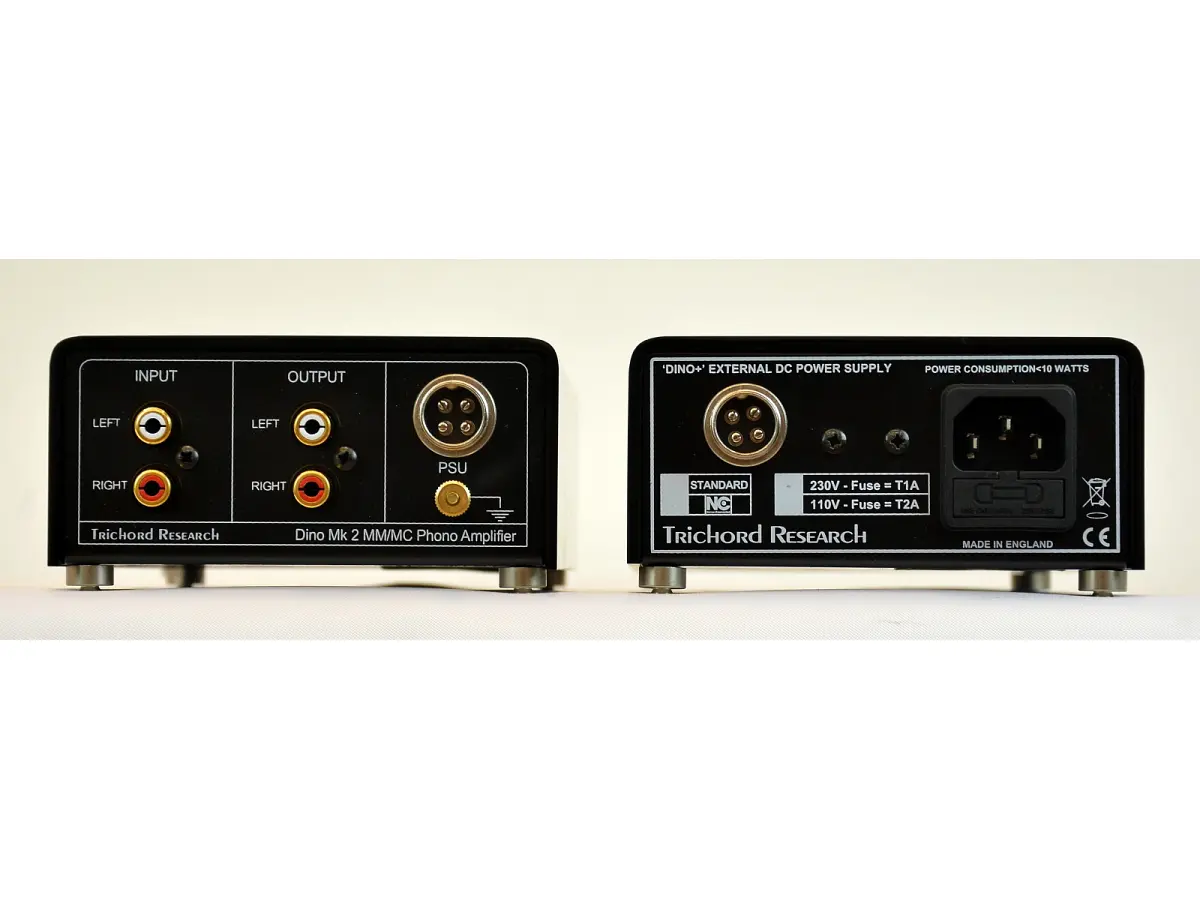

TRICHORD DINO + DINO+
Pre phono with external power supply
Code: 22459368
All our products are covered by Italian warranty.
Second-hand, in good condition, without scratches. No original packages.
Pre phono with external power supply
Trichord Dino Pre phono
Specifications
Loading resistance: 33, 100, 1k or 47k ohms
Loading capacitance: 1.1nF (MC), 100pF (MC)
Gain: 48, 52, 63, 70 or 74dB
RIAA characteristics: 20Hz to 20kHz
AC supply: 0-17V, 0-17V 50/60Hz
DC supply: 0-22V, 0-22V
Dimensions: 130 x 58 x 112mm
Trichord Dino+ External power supply
Dino+’
DC Power Supply ‘Dino+’ Power Supply The ‘Dino +’ Power Supply unit is
made up of two completely independent and electrically isolated dc
supply circuits, one for the positive voltage rail and one for the
negative. The specially made low noise audio 80VA toroidal transformer
is followed by two independent bridge rectifiers. These are built with
discrete ultra fast soft recovery diodes for low RF generation. The
bridges are then followed by RC/RC filtering using four high
performance, low ESR 1800uF Panasonic capacitors. Two voltage regulators
provide solid and stable supply voltages. This level of filtering and
regulation provides you with a substantial increase in performance over
the Toroidal supply. Solid imaging and depth to the music are the main
benefits. Power is delivered from the ‘Dino+’ to the phono stage via a 4
way PTFE insulated, silver plated copper lead. This lead is
upgrade-able to our ‘High Performance Interconnect Lead’. ‘Never
Connected Dino+’ DC Power Supply The NCPSU has completely different
electronics to the standard ‘Dino+’ power supply.. Instead of an
oversized toroidal transformer, there is a PCB mounting variety followed
by our revolutionary noise reduction circuitry that is called ‘Never
Connected’. Although the regulation circuit is physically connected to
the incoming mains, it is disconnected electrically. A monitoring
circuit detects the portion of the sine wave that is charging the first
of a pair of electrolytic capacitors. Once this first capacitor is fully
charged, the diode bridge rectifier turns off and a MOSFET switching
circuit transfers the charge from the first cap to the second. This
cycle is repeated continuously. At no point in time is the regulation
circuitry electrically connected to the incoming rectified mains – hence
the term ‘Never Connected’. The overall result is a large and
measurable reduction in mains borne noise. This dramatic reduction of
mains borne noise enables the Dino phono circuit to give of its very
best. As with the ‘Dino+’ PSU power is delivered to the phono stage via a
4 way PTFE insulated, silver plated copper lead. This lead is
upgrade-able to our ‘High Performance Interconnect Lead’.
