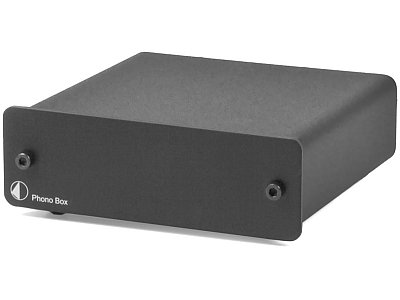

PROJECT PHONO BOX

MM/MC Phono preamp with line output

Features

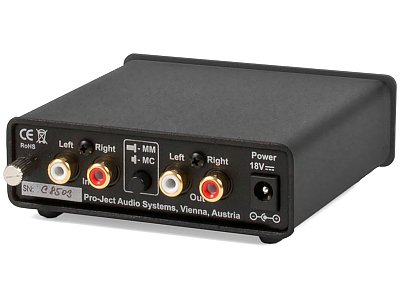

Preamplifier for MM or MC with switch on rear panel
Best buy classic
DC power supply (< 1 watt standby power)
Precise RIAA equalisation
Low noise ICs
Output stage with ultra-low impedance
Gold-plated RCA sockets
Small size for installation near recordplayer

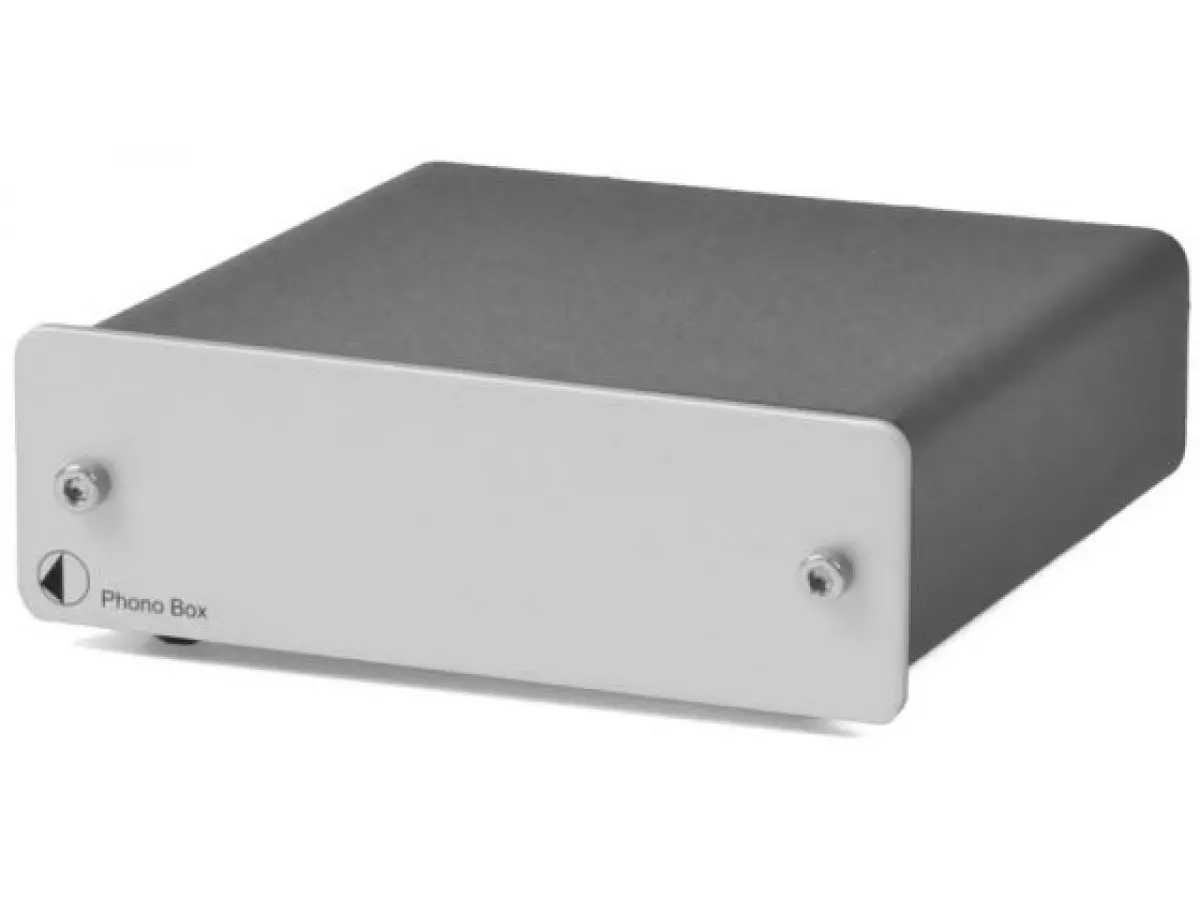

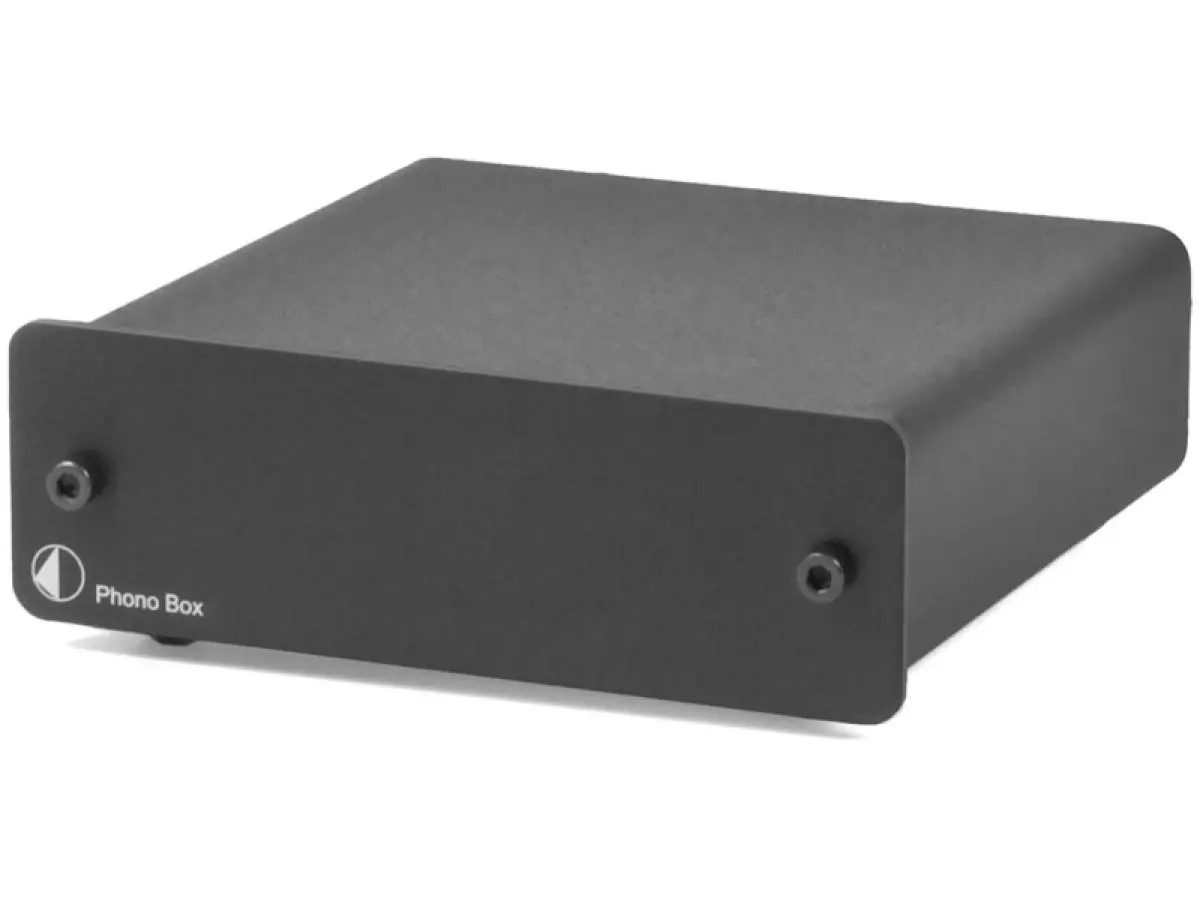

Faceplate available in black and silver

Technical Specifications
Input impedance, MM     47 kohms/120 pF
Input impedance, MC     100 ohms / 120 pF
Gain, MM     40 dB
Output voltage typically     300 mV/1 kHz at 3 mV/1 kHz (MM input)
Gain, MC     60 dB
Output voltage typically     300 mV / 1 kHz at 0,3mV/1 kHz (MC input)
Max. output     9.5V (1kHz)
Noise floor, MM     94 dBA
Noise floor, MC     75 dBA
THD, MM     0,01%
THD, MC     0,05%
RIAA-equalisation curve accuracy     20 Hz - 20 kHz / max. 0,5 dB
Outboard power supply     18V / 200 mA DC, suitable for your country's mains supply
Standby power consumption     < 1 watts
Dimensions W x H x D     103 x 36 x 104 (115 mm with sockets)
Weight     570 g
