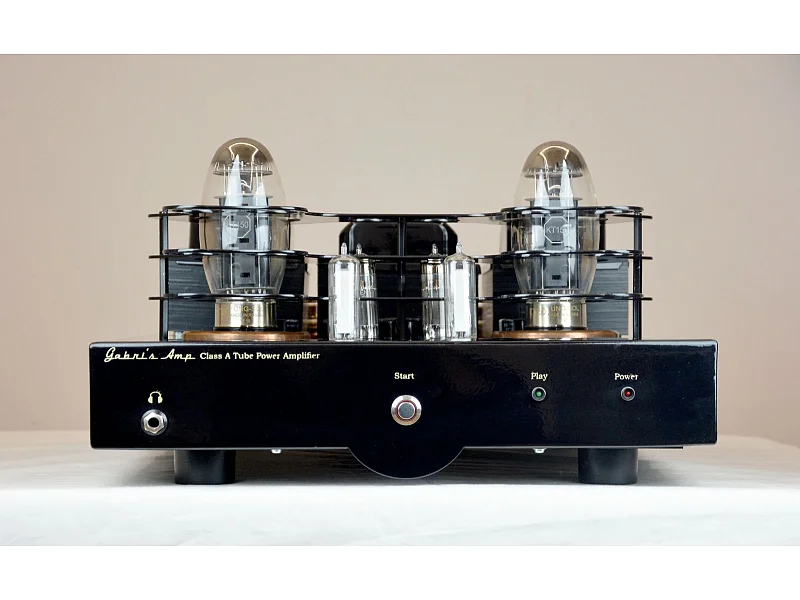

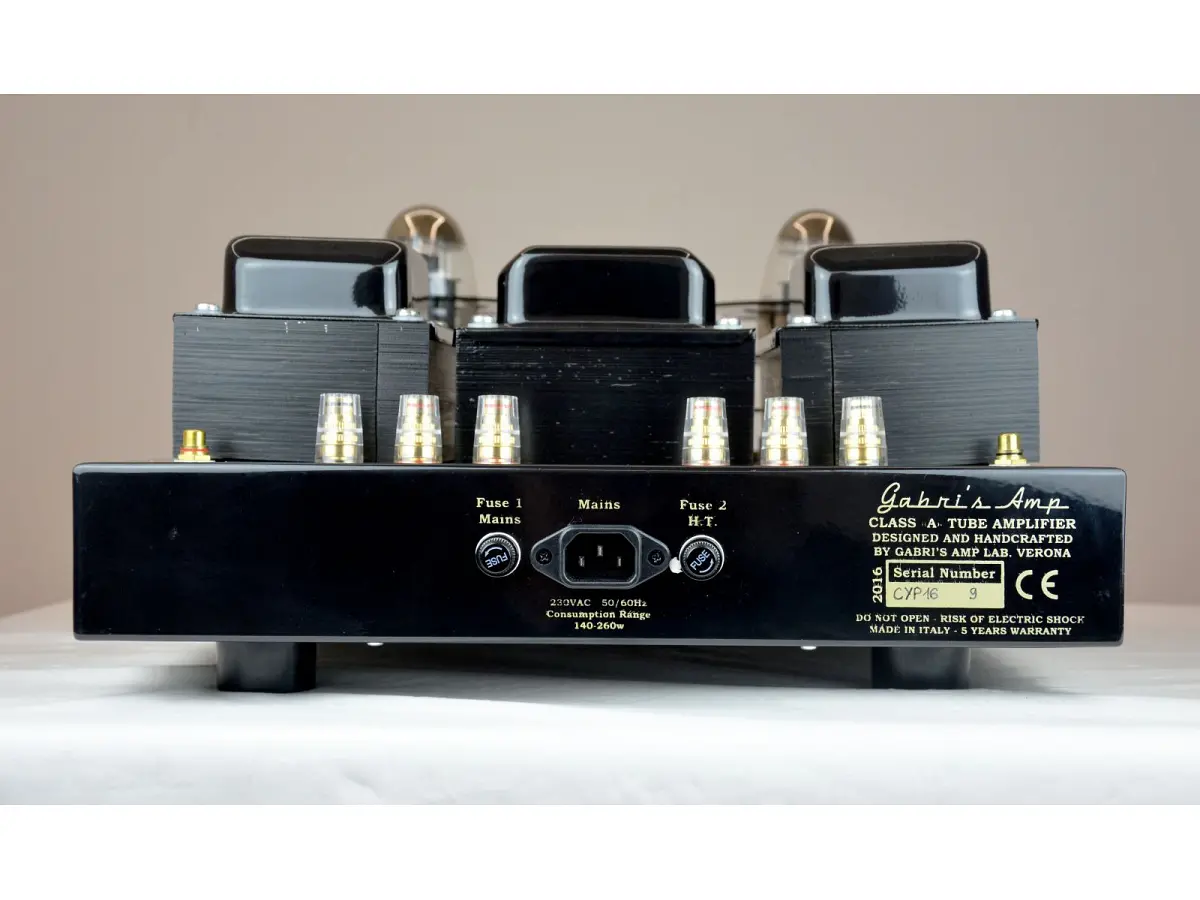

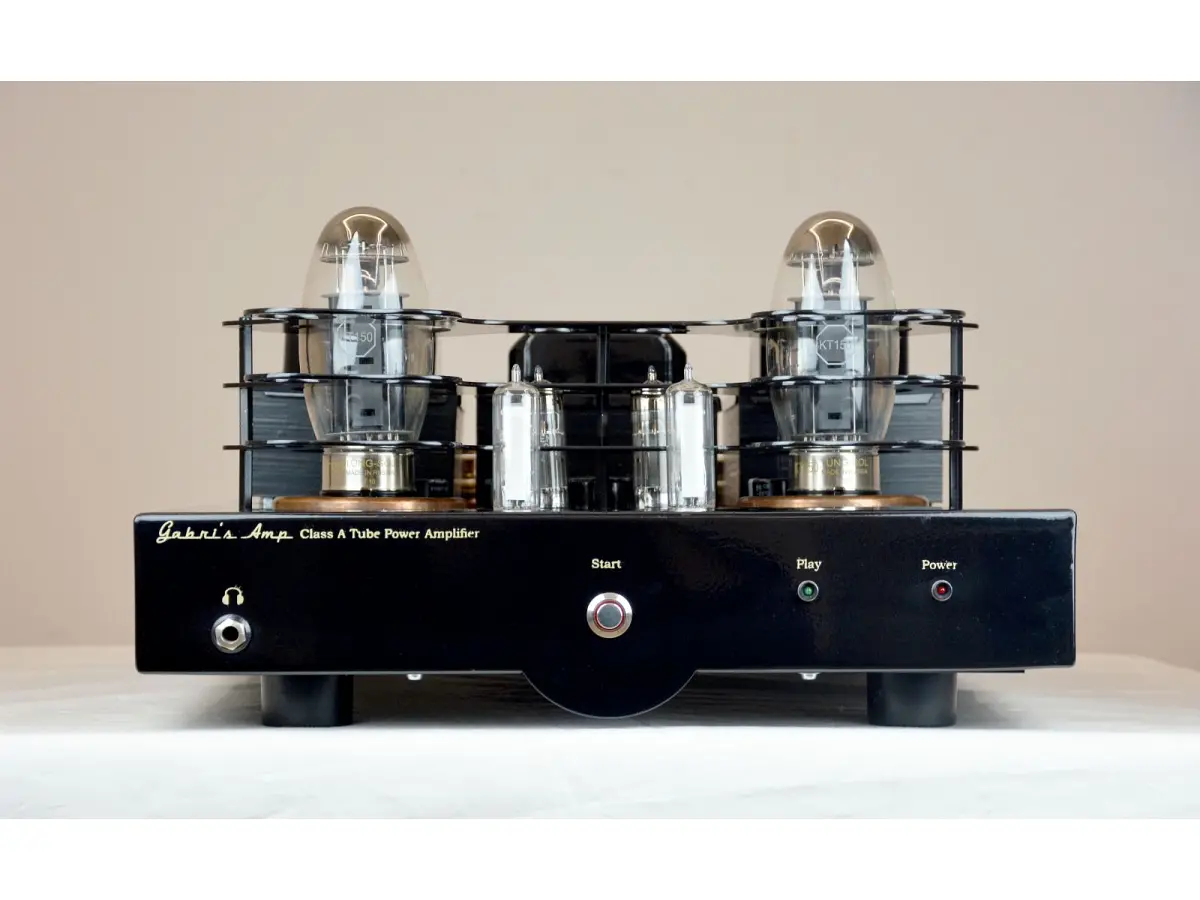

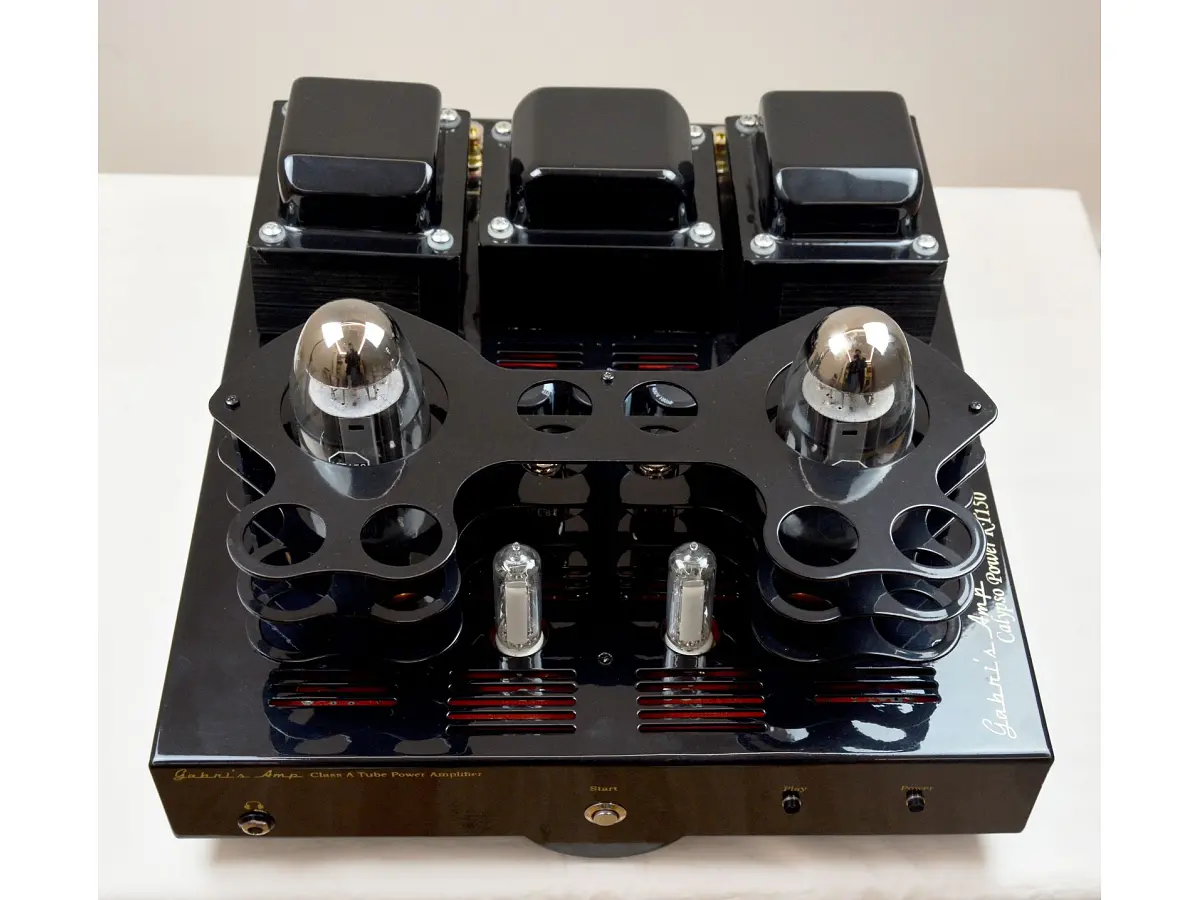

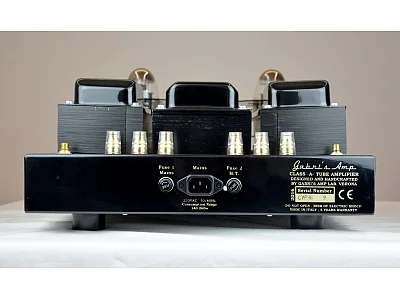

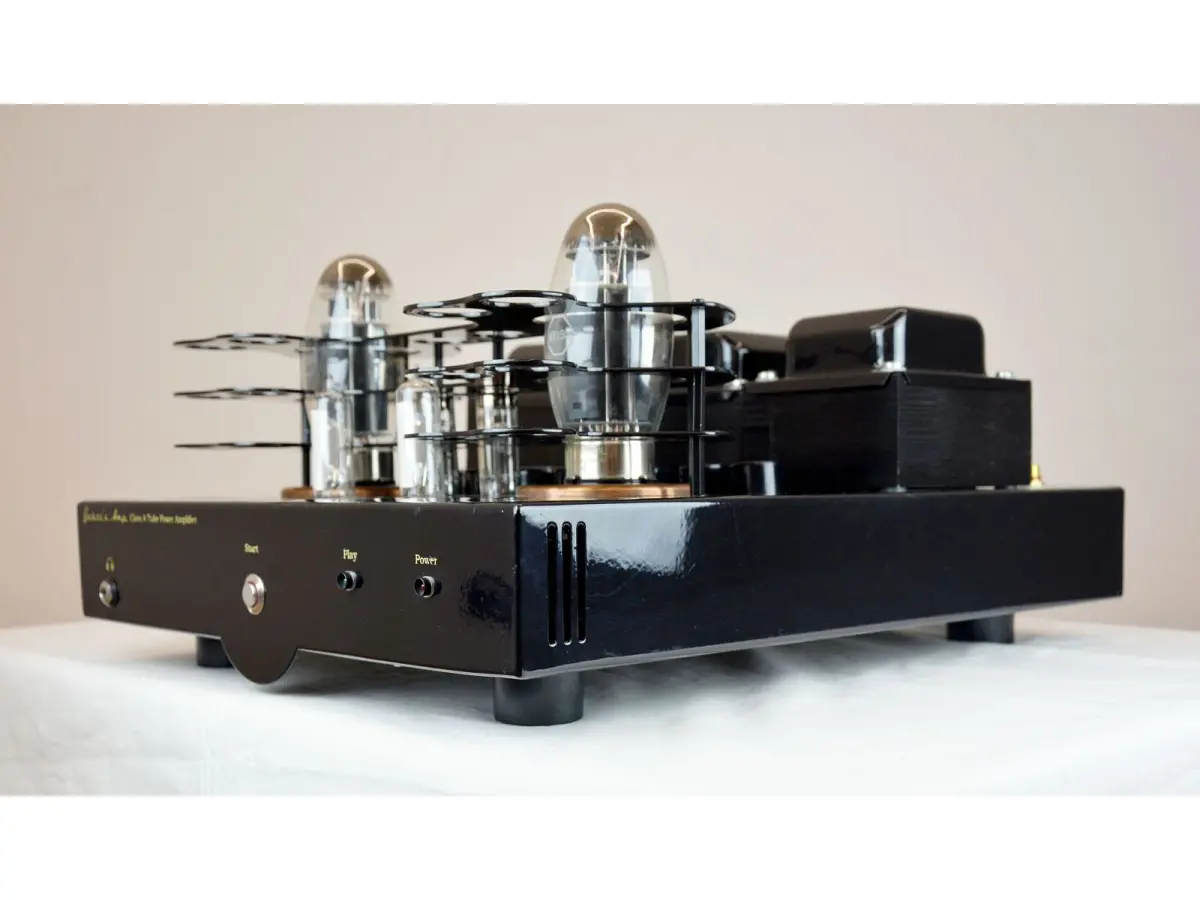

GABRI'S AMP CALYPSO KT150

Second-hand. In good conditions. Shows minor signs of wear as seen in the photos. Comes with a manual, without the original packaging.

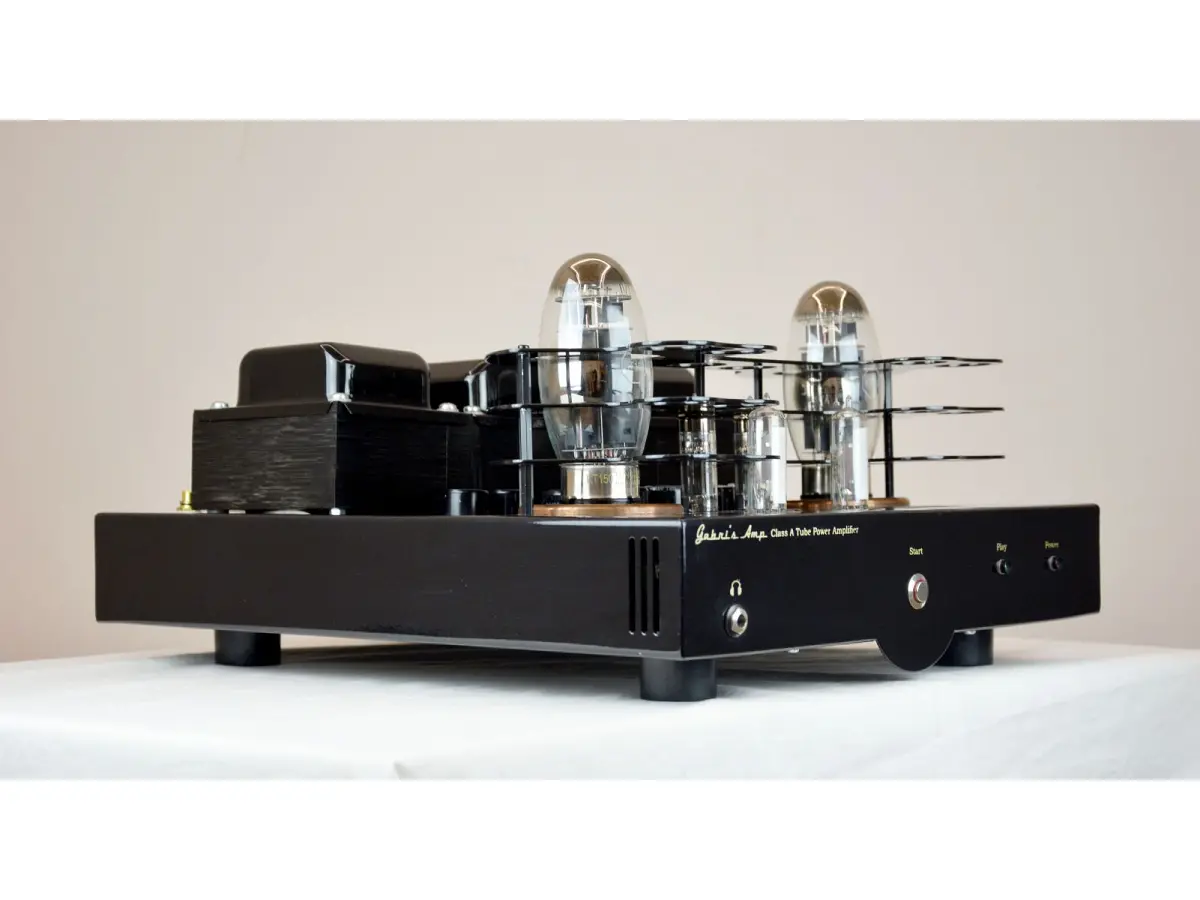

The Gabri's Amp Calypso KT150 is a tube power amplifier featuring the renowned Tung-Sol KT150 tubes, known for their high power dissipation and linearity.

This amplifier operates in Single-Ended mode, delivering an output power of 25 watts per channel in Class A on an 8-ohm load.

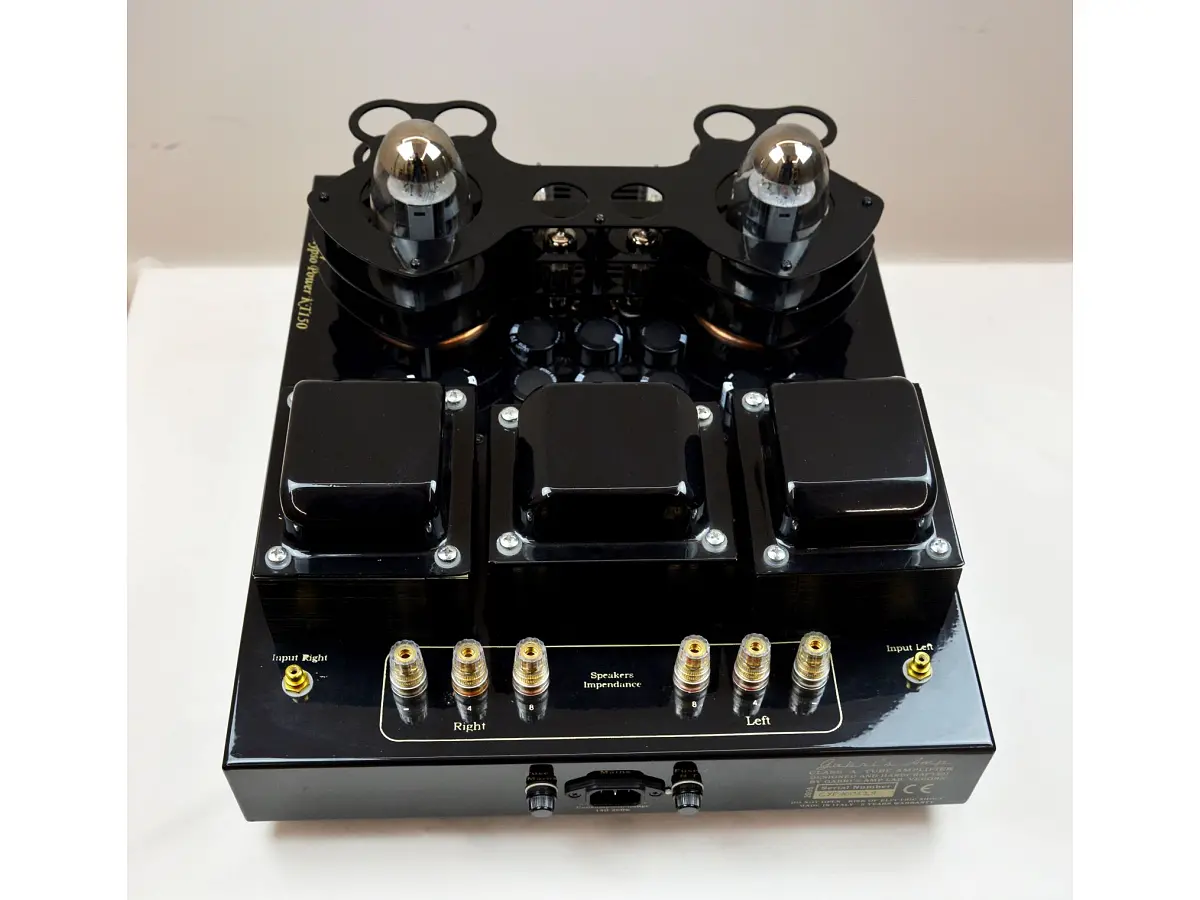

The Calypso KT150 is equipped with four inputs, including one specifically dedicated to phono for turntables with MM cartridges, utilizing NOS tubes to ensure an authentic sound reproduction. The output transformers are designed with a dual-section layout, allowing selection between 4-ohm and 8-ohm impedances, ensuring optimal compatibility with a wide range of speakers.

Thanks to its substantial power reserve, the amplifier can efficiently drive even less sensitive or more demanding speakers while maintaining precise control and superior sound quality. The versatility of the Calypso KT150 allows it to be used both as an integrated amplifier and as a power amplifier, thanks to a volume control that facilitates adaptation to different setups.

The refined design and high-quality craftsmanship reflect the manufacturer’s dedication to creating a product that not only meets sonic expectations but also serves as a distinctive element in any high-end audio system.

Technical specifications:

• Configuration Name: Single Ended Class "A"
• Output Power (Stereo/Mono): 30W + 30W
• Number of Inputs: 1 RCA Input
• Input Sensitivity: 1V
• Input Impedance: 10 ΚΩ
• Frequency Response: 30Hz-22KHz (Max Power) - (20Hz-20KHz at 10W)
• Signal-to-Noise Ratio: 98 dB
• Distortion: 1%
• Output Impedance: 40-80 connector
• Headphone Output: 1000-6000Ω (power 50mW)
• Dimensions: 380mm x 460mm x 210mm
• Weight: 22 Kg
• BIAS: Manual (internal)
• Power Tubes: KT150 (x2)
• Driver Tubes: PCL82 (x2)
• "VuMeter" Tube: UM84 (aesthetic function)
• Operating Voltage: 220V-240V
• Power Consumption: 140W-180W
