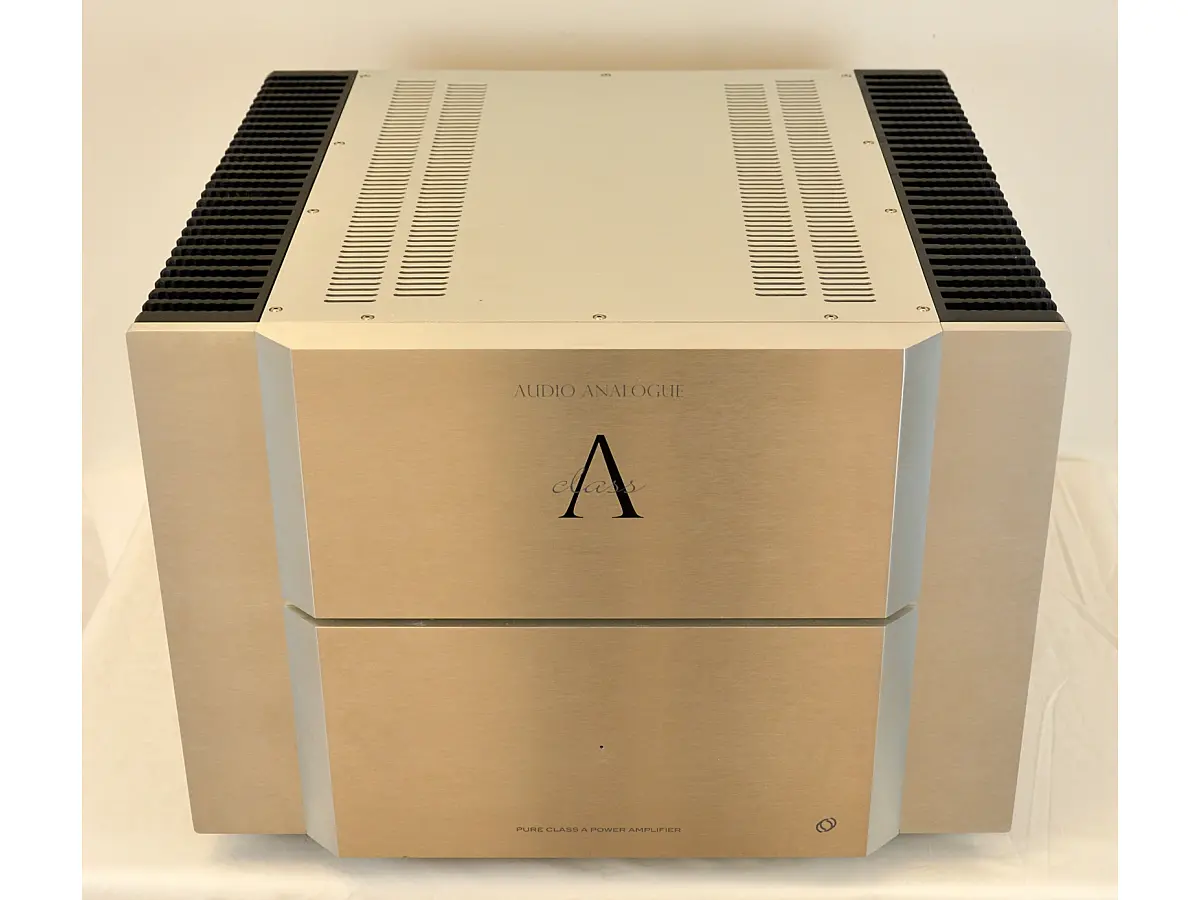

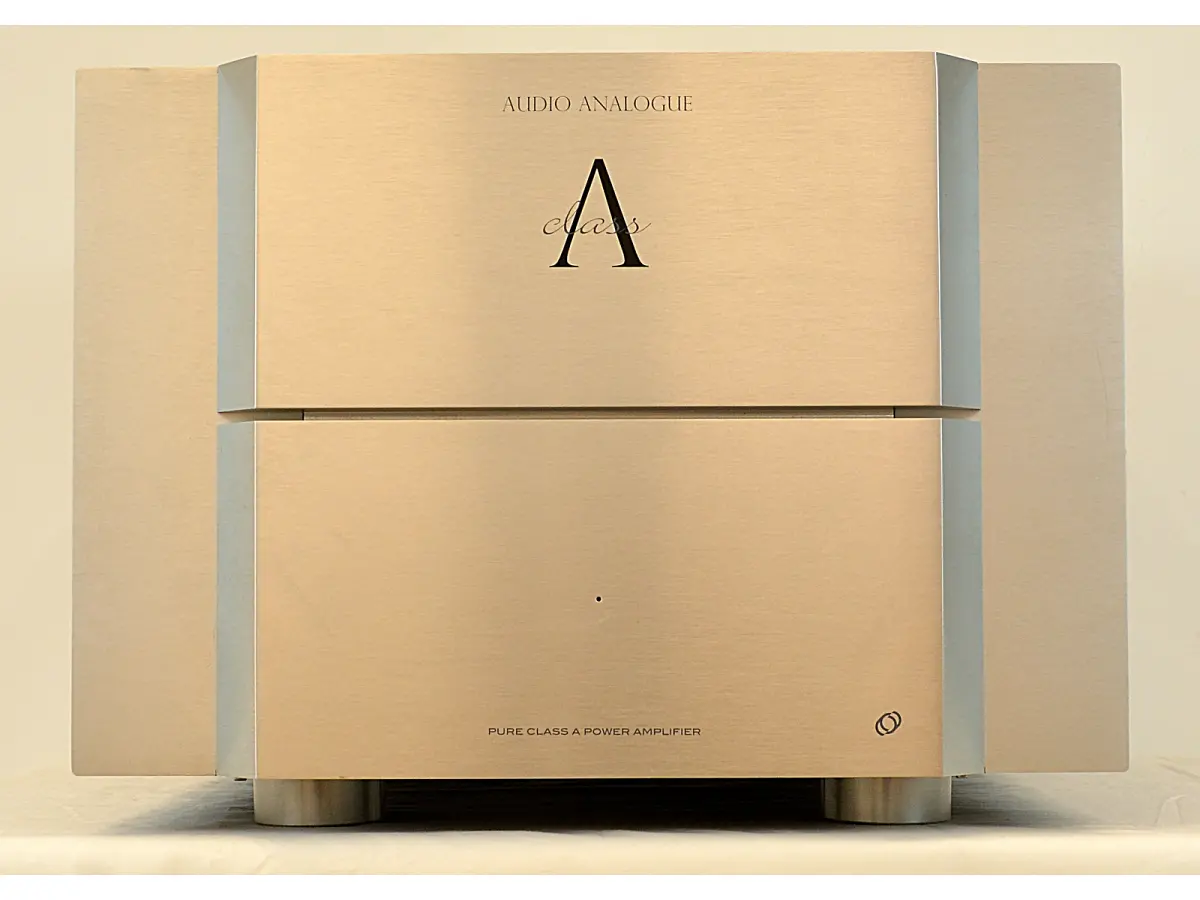

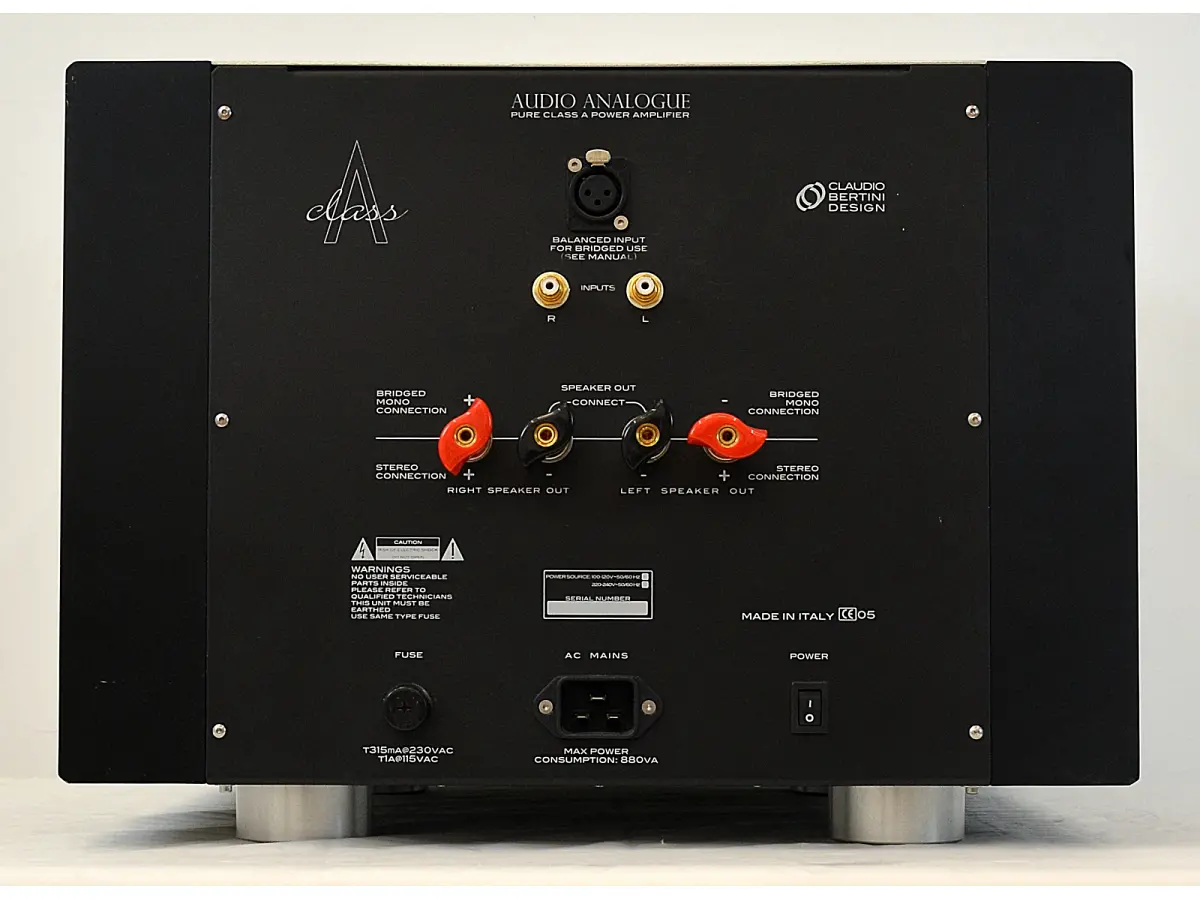

AUDIO ANALOGUE CLASS A

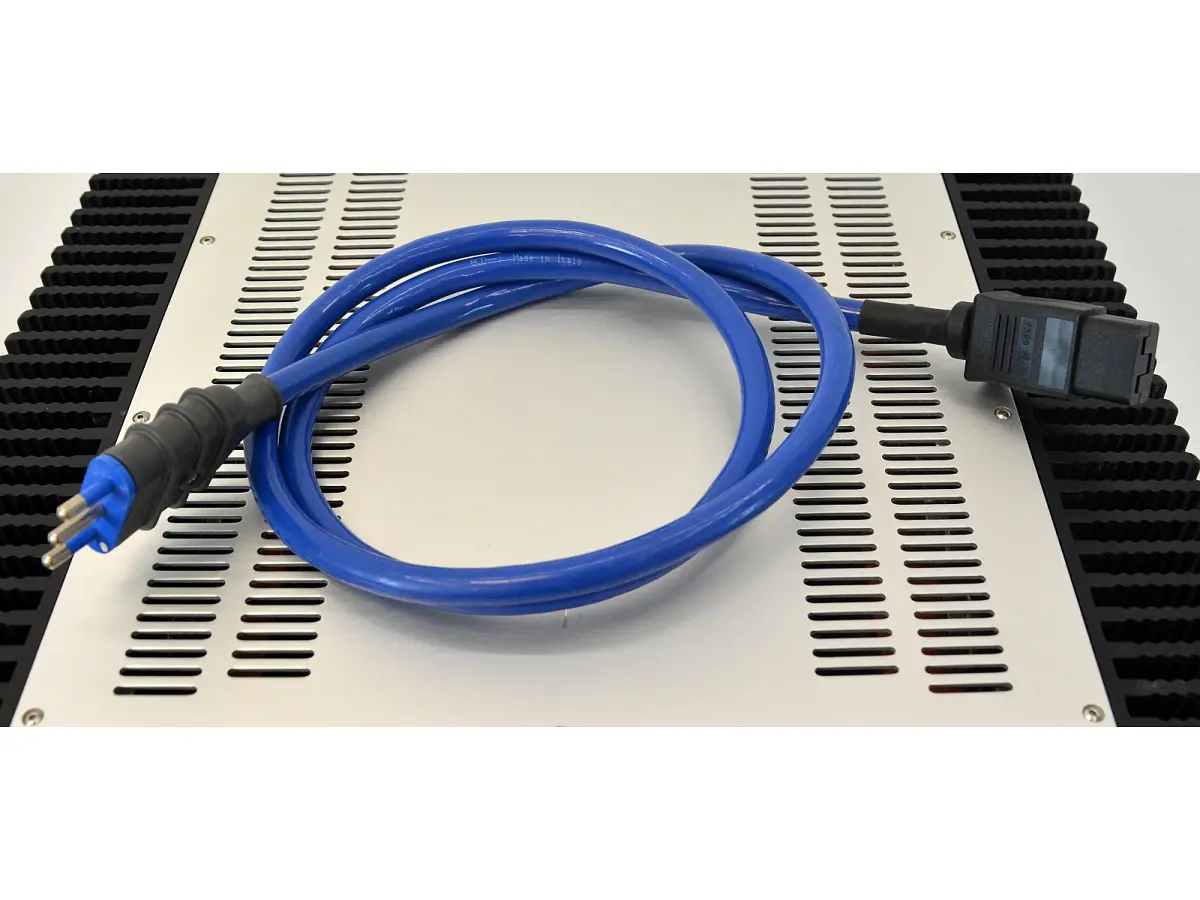

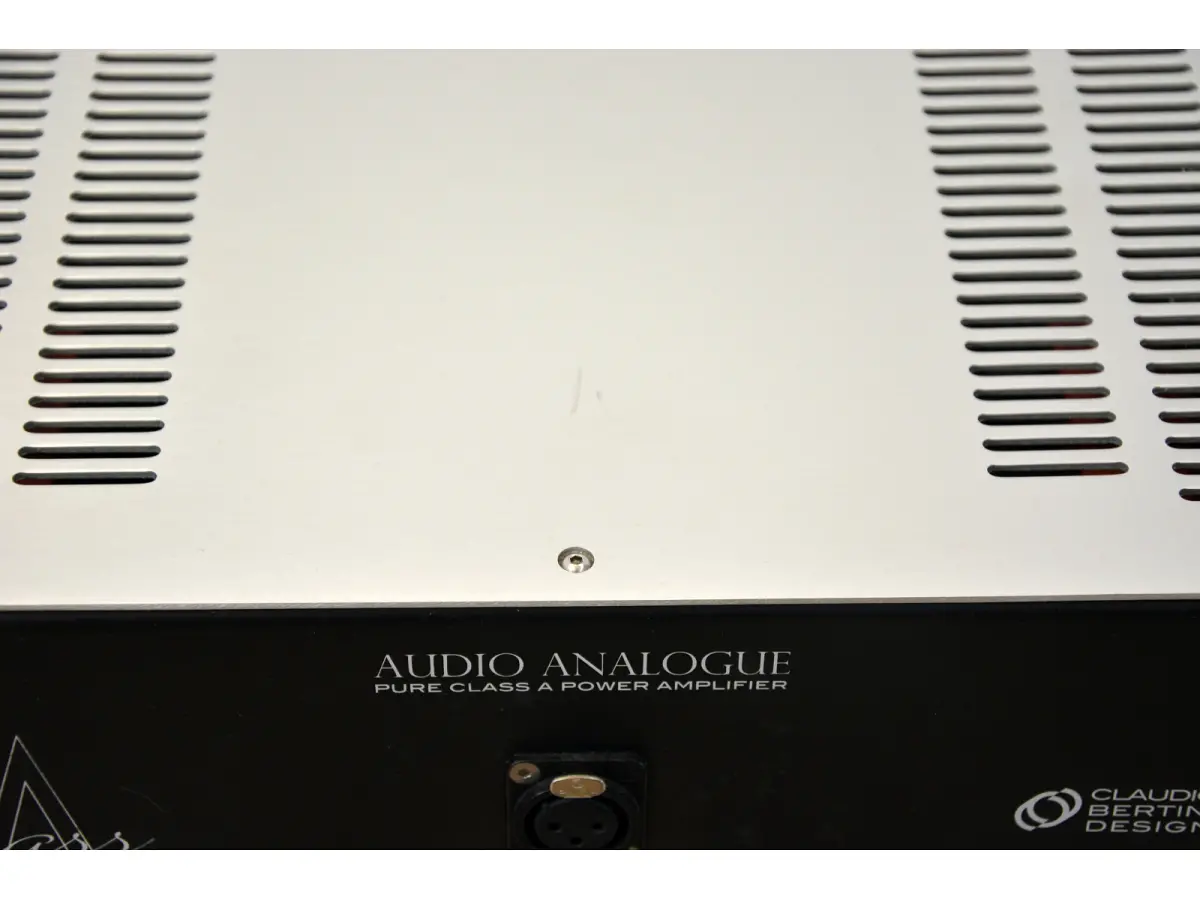

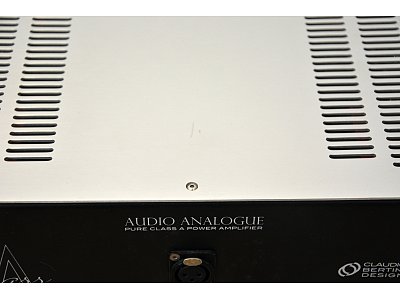

Second-hand, in good condition, it has a small scratches (see pictures). Equipped with power cable and original wood crate.

Power amplifier

Two toroidal, 400VA transformer, one per channel. Dual mono design. Pure class A operation up to 50W @ 8 Ohm. Only double-sided metallized polypropylene film capacitor in the critical points. The internal stages are DC coupled and the offset is reduced by means of an integrating amplifiers. High current capability. The protection and control sections are galvanically insulated from the analog sections to minimize the digital noise. No mains fuse. The mains current is measured at the input of the transformer (with a current probe) and in case of malfunctions it's shutted off. The voltage of both channel is measured by means of optocoupler to avoid any ground loop. The DC offset on the output (loudspeakers) is also monitored by means of optocouplers. The protections are realized with a PLD (Programmable Logic Device), more fast and reliable compared to a microcontroller.

Technical features
Channels: 2
Power on 8? load: 50W classA(200W bridged mode)
Power on 4? load: 100W
Power on 2? load: 200W
THD + N (1W, 8Ohm 1 KHz): 0,02 %
Slew Rate: 50 V/?s
Frequency Response(Att. 0dB, -3dB band): 1 Hz - 160 KHz
Input Noise(Band limits 0Hz-80kHz/A-weighted): -130 dB
SNR: > 100 dB
Dimensions(HxWxD): 320 x 445 x 460 mm
Weight: 61.5 Kg
