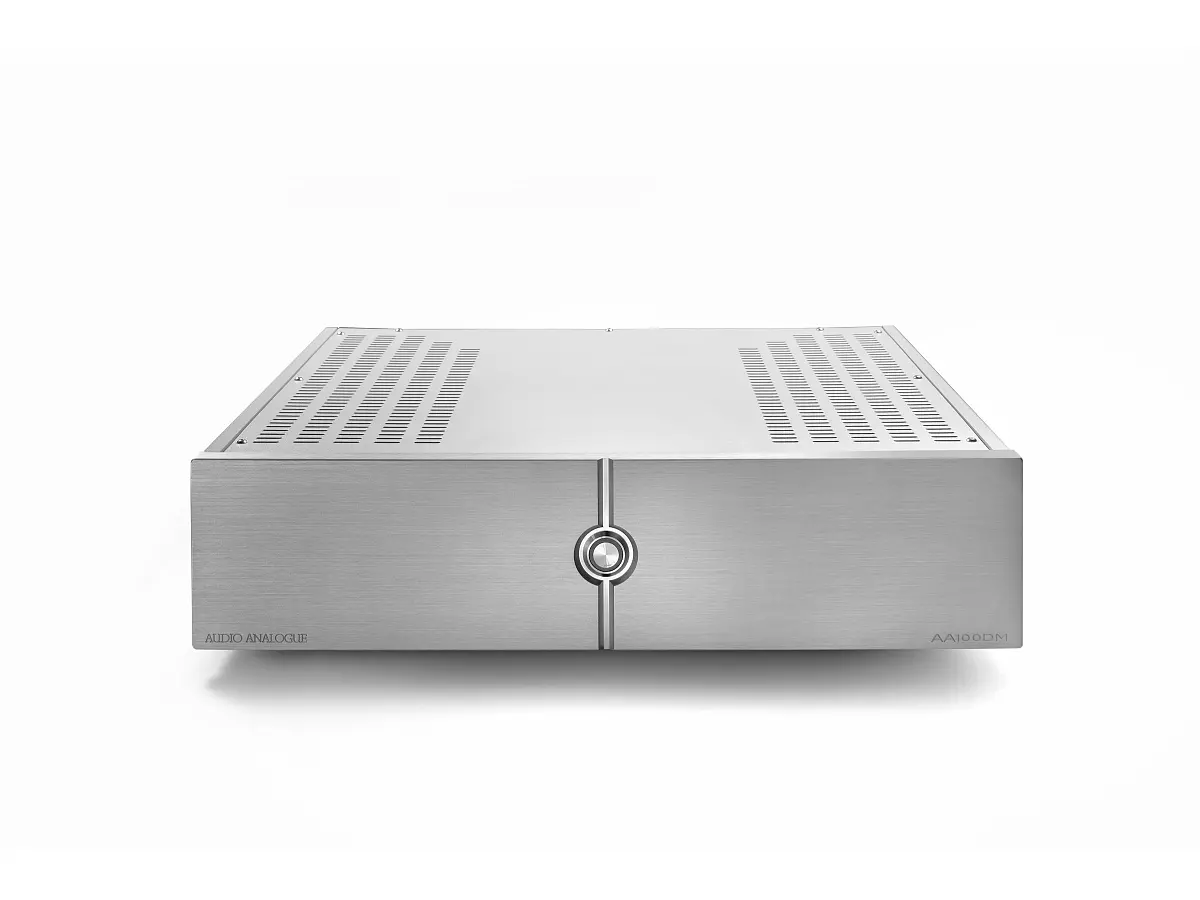

AUDIO ANALOGUE AA100DM

100W Stereo Power Amplifier in Class AB.

The AA100DM power amplifier represents the latest evolution of the PureAA line, a device designed to deliver exceptional sound performance and unparalleled versatility. Derived from the circuitry of the iconic Puccini Anniversary, the AA100DM stands out for its increased output power, reaching 100W per channel, while maintaining the same musicality and drive capabilities even under the most demanding conditions.

Thanks to its fully balanced configuration and global negative feedback-free circuit, this amplifier ensures superior performance in all situations, offering a linear response without distortion. Not only is its ability to drive demanding loads exceptional, but its dual-mono discrete component circuitry, enhanced with military-grade resistors and polypropylene capacitors, guarantees uncompromising musical performance. The AA100DM is perfect for those seeking a powerful amplifier with musical refinement, ideal for any application, from home hi-fi systems to more professional uses.

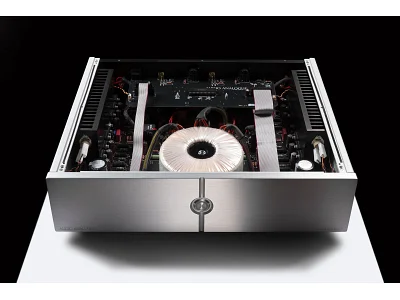

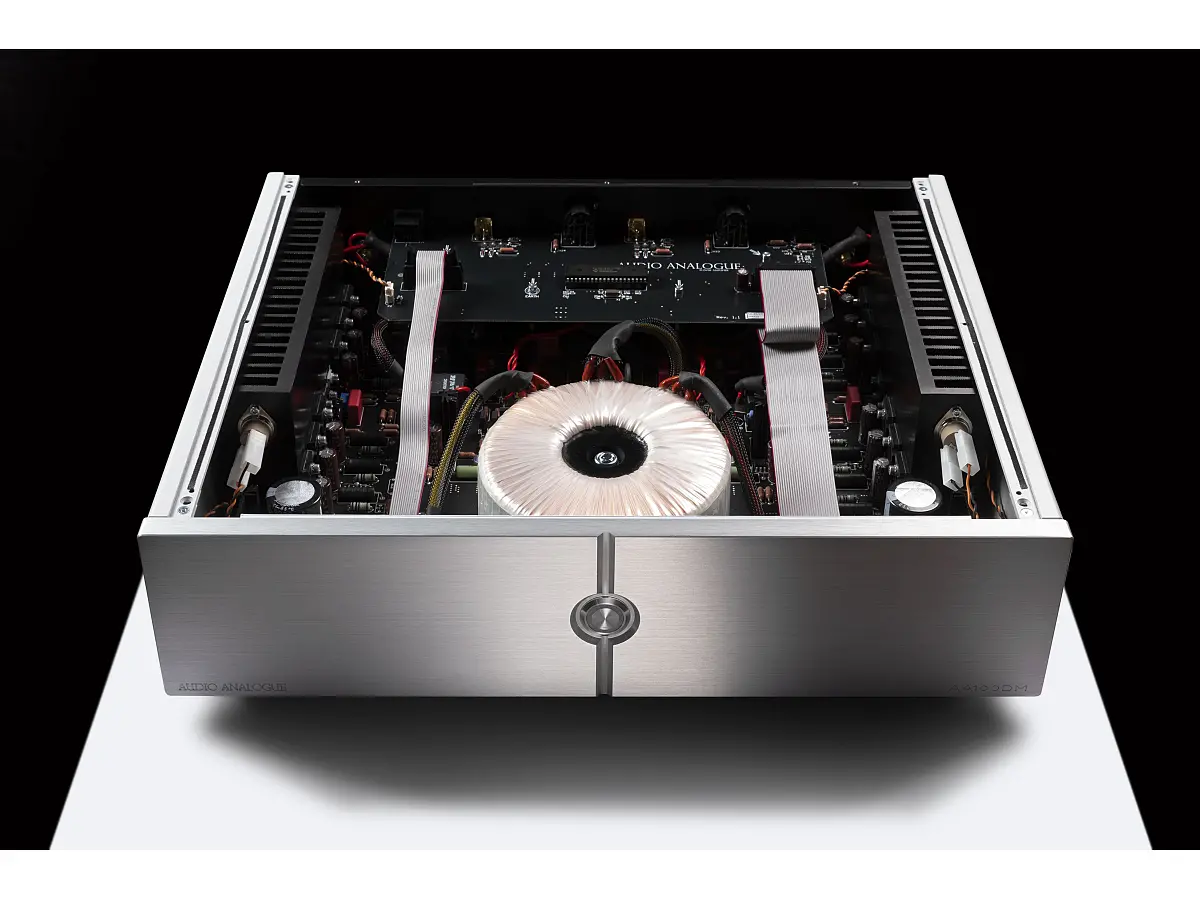

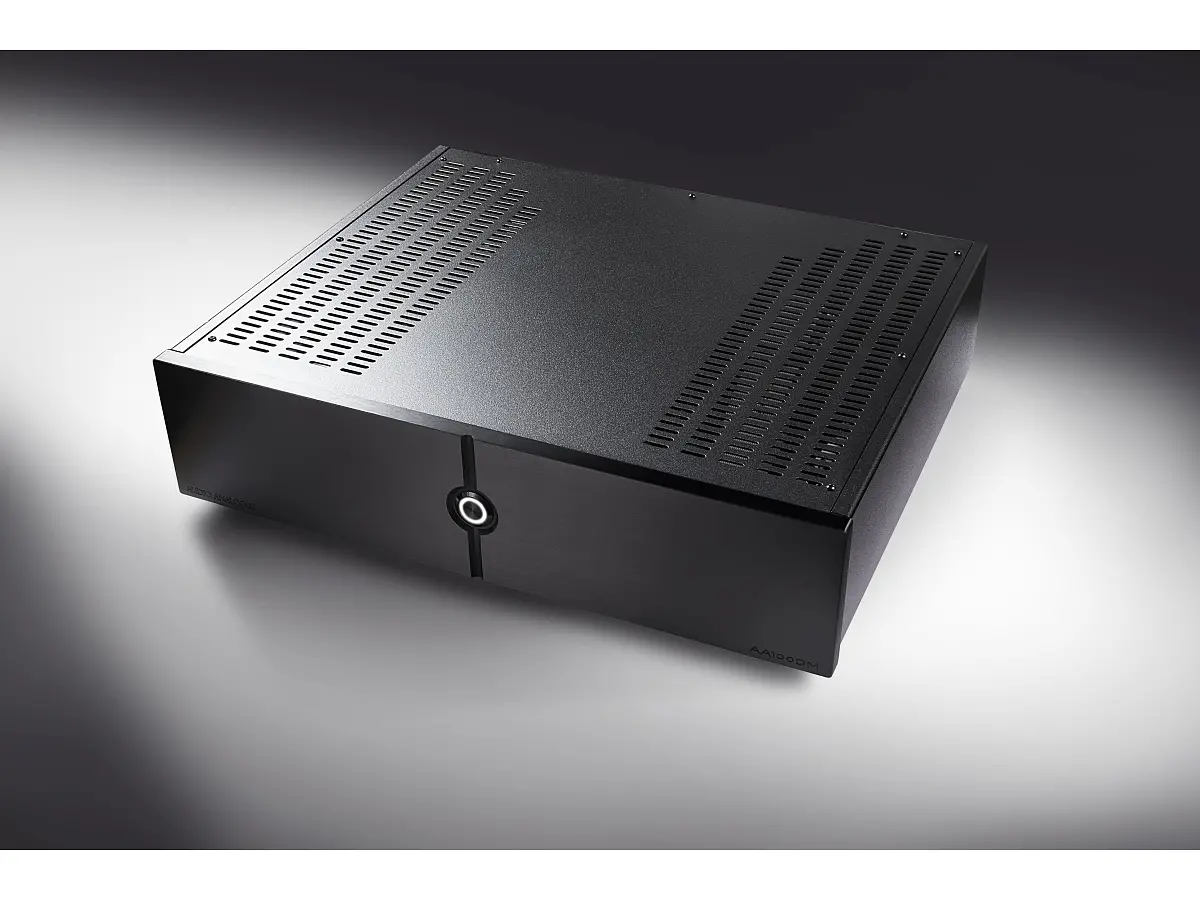

The AA100DM is a fully balanced amplifier with no global feedback, designed to provide stable and reliable performance, even with difficult loads. With a 760VA transformer and six pairs of On-Semiconductor final transistors (three per channel), it offers power and precision in any situation. The bridge mono configuration, with a dedicated connection kit, allows users to fully harness the amplifier’s power, achieving truly exceptional performance. Available in natural aluminum or satin black finishes, it integrates seamlessly into any environment.

Every component of the AA100DM is selected to ensure impeccable sound quality, from military-grade resistors to polypropylene capacitors, and pure 7N OCC copper conductors for internal wiring. Gold-plated output connectors complete the picture, ensuring lossless signal transmission. The AA100DM is the ideal amplifier for those seeking superior sound performance and high-quality construction.

Technical Specifications:

• Channels: 2
• RCA Inputs: 1
• XLR Inputs: 1
• Input Impedance: 47 k?
• Gain: 26 dB
• Power at 8Ω load (one channel operating):
  • 100W @ 1% THD
  • 400W in Mono
• Power at 4Ω load (one channel operating):
  • 200W @ 1% THD
  • 700W in Mono
• Power at 2Ω load (one channel operating): 320W @ 1% THD
• Sensitivity: 1.4 VRMS for 100W at 8Ω
