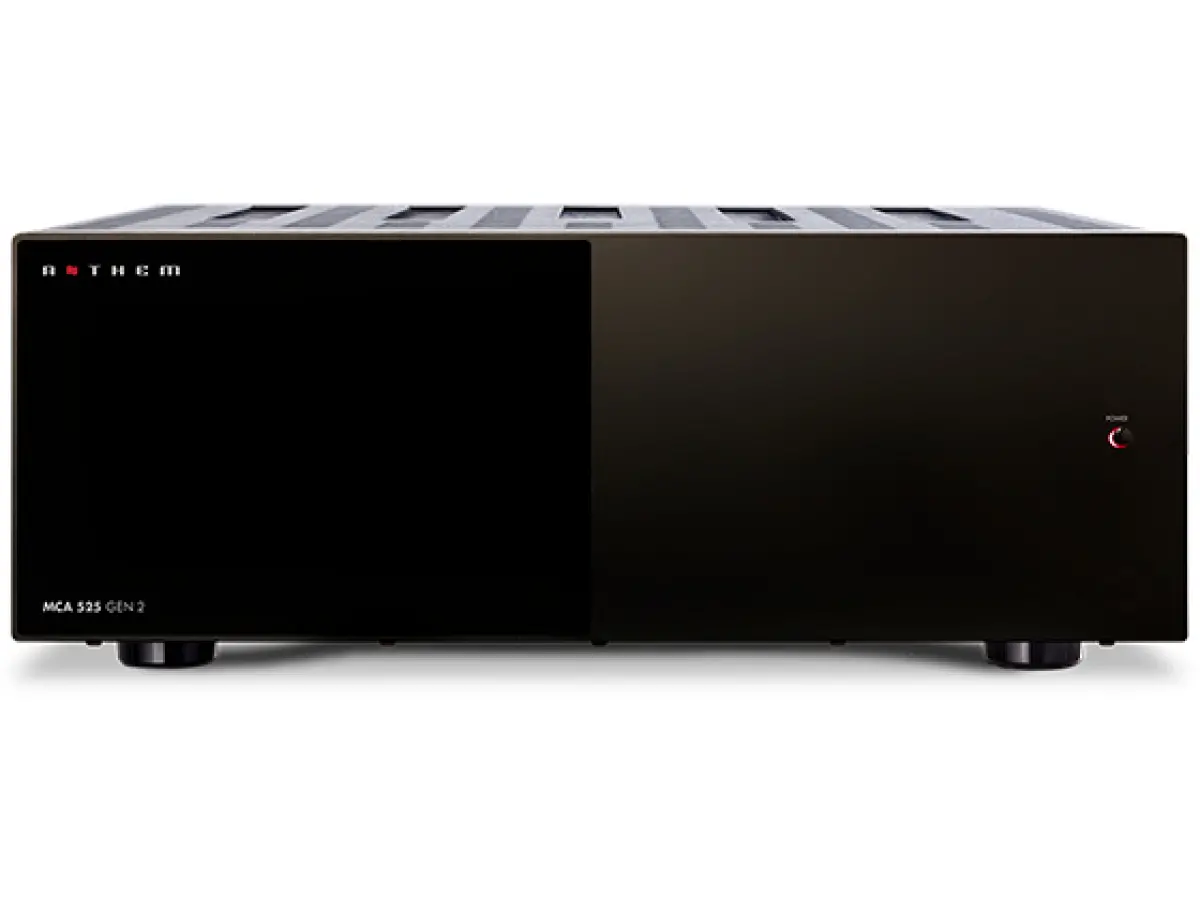

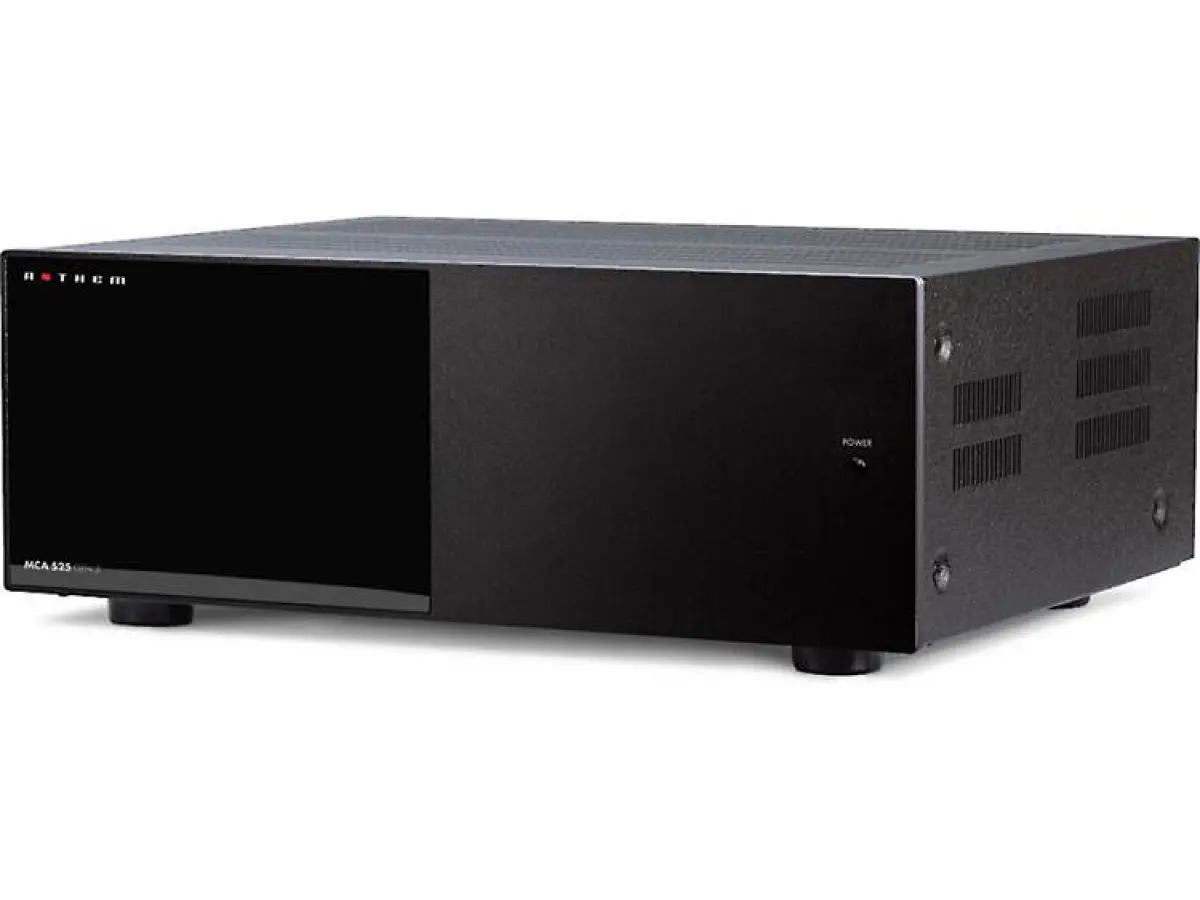

ANTHEM MCA 525 V2

Multichannel muscle for your home theater
The Anthem MCA 525 is 61 pounds' worth of multichannel muscle. When Anthem visited Crutchfield to demo their line, I casually attempted to lift the MCA 525 ??? and was humbled by its heft. It will drive even power-hungry speakers to movie theater volume levels without breaking a sweat. And this well-engineered amp excels at controlling the stop-start motion of your speakers' drivers, enhancing virtually every aspect of sound quality from deep bass, to dynamics, to soundstaging.
Usually, 5-channel amps like the MCA 525 are paired with A/V preamp/processors like Anthem's superb AVM 60. But if your home theater receiver has preamp outputs ??? and many do, like Anthem's MRX Series models ??? you can easily connect the MCA 525 and use it to drive your main and surround channels. That surge of added power adds startling impact to movie soundtracks.

Inside the Anthem sound

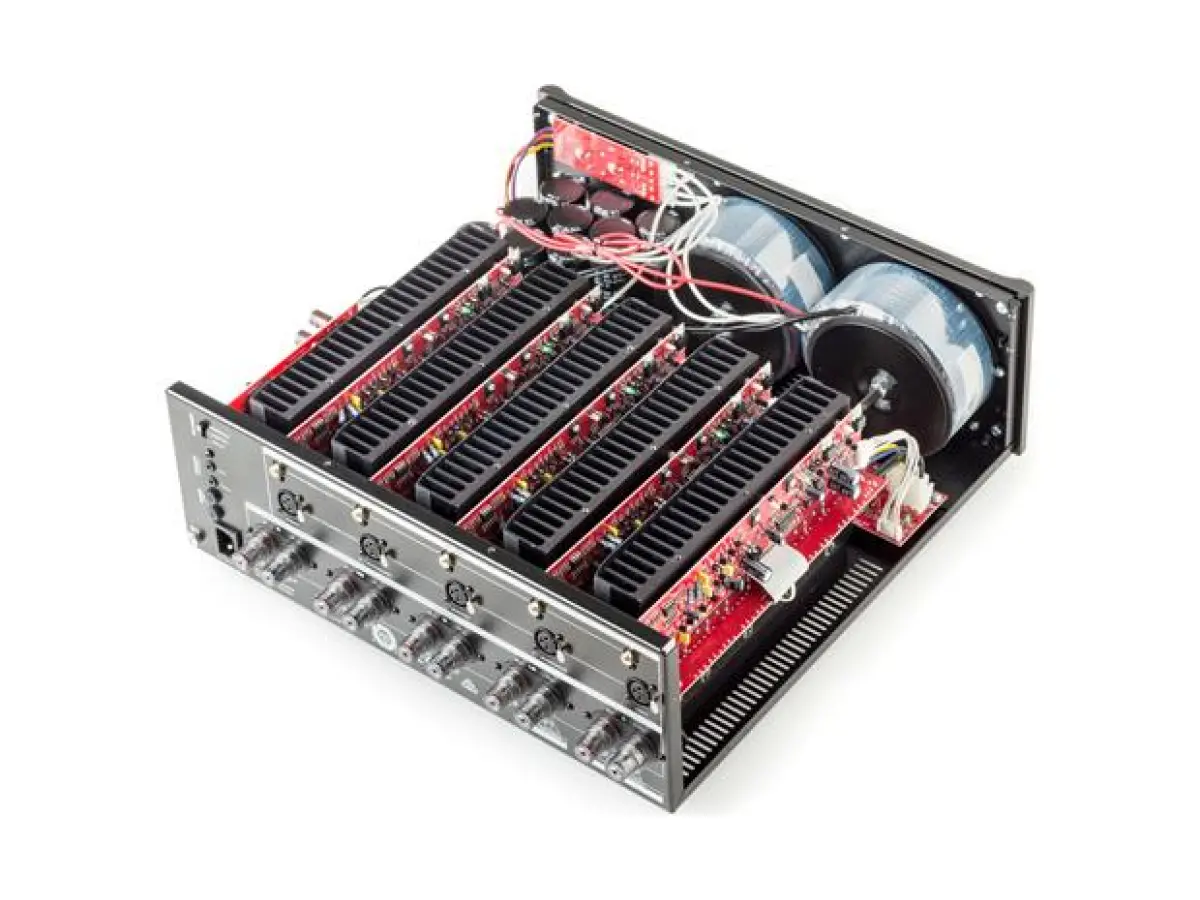

Anthem MCA 525 with top removed
The MCA 525's rated power output provides a clue to this amp's unshakeable grip on the music. It produces 225 watts per channel at 8 ohms, 400 watts into 4 ohms and an incredible 600 watts into 2 ohms!
Anthem's previous 5-channel amp used a single power supply for the front left and right channels, and another supply for the center and surrounds. The MCA 525 employs a new design, sharing its two power supplies among all channels. The result is full bursts of power ??? instantly ??? without ever compromising channel separation.
When designing their latest MCA Series amplifiers, Anthem upgraded nearly every part in the signal path in order to reduce noise and distortion. From the custom high-power toroidal transformers inside, to the re-designed speaker binding posts in back, every feature was optimized so that you'll hear clean, transparent sound emerging from an eerily quiet background.

Made in Canada, respected around the world
For more than two decades, Anthem has been making award-winning high-performance audio/video equipment for music and home theater. Anthem power amplifiers are designed, engineered, and built in Canada.

Product highlights:
225 watts per channel into 8 ohms (20-20,000 Hz) at 0.015% THD with all channels driven
400 watts per channel into 4 ohms
600 watts per channel into 2 ohms
Class AB design with 8 high-current bipolar output transistors per channel for lower distortion
dual custom low-noise, high-power toroidal transformers for stable, noise-free operation
high-quality filter capacitors and advanced power supply regulators
Advanced Load Monitoring??? technology monitors internal temperature, current, and voltage to ensure safe, uninterrupted operation
3-way on/off operation: manual, triggered, or signal-sensing auto on/off

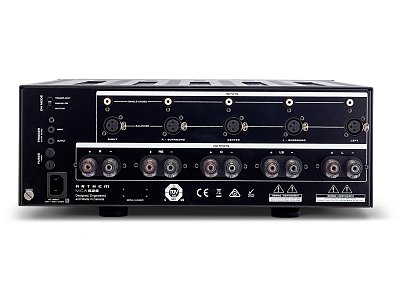

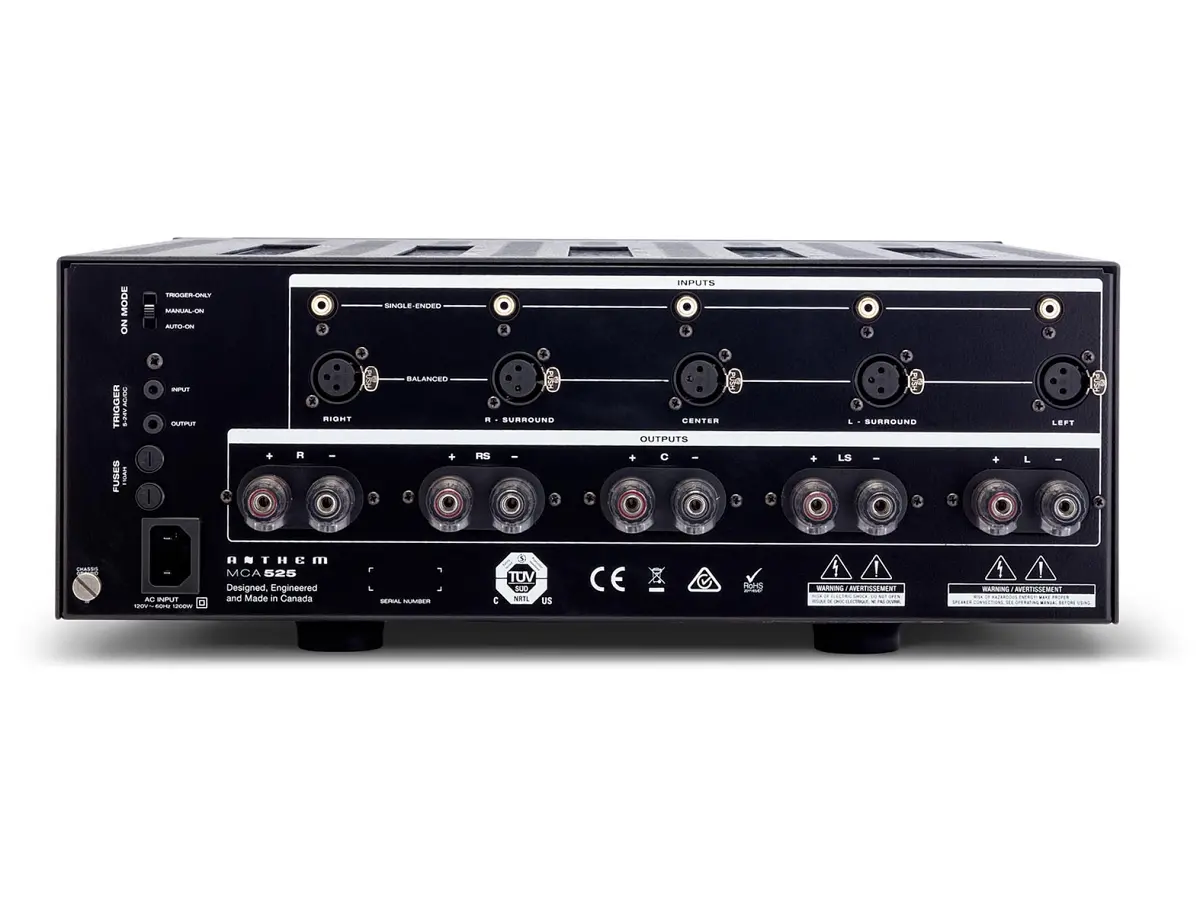

balanced XLR and unbalanced RCA inputs for all five channels
custom-designed binding post terminals accept bare wire, banana plugs, and spade lugs
3.5mm trigger in/out jacks allow the amplifier to be turned on or off remotely
detachable power cord
designed, engineered, and manufactured in Canada
total harmonic distortion: 0.015%
signal-to-noise ratio: 120 dB
17-1/4"W x 6-5/8"H x 18-1/8"D
weight: 61 lbs.
warranty: 5 years
