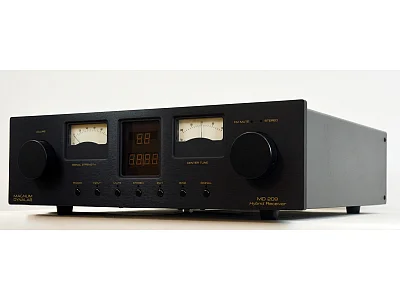

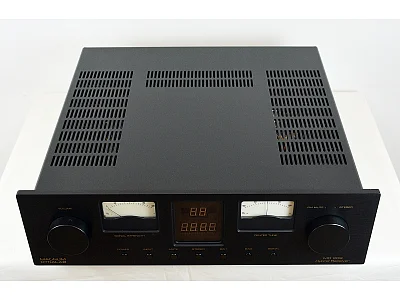

MAGNUM DYNALAB MD 209

Second-hand, in mint condition, without scratches. Supplied with its original package.

2-Channel Hybrid Audio Receiver

The Magnum Dynalab MD-209 is a high-performance hybrid stereo receiver, considered one of the best of its kind by the most demanding audiophiles. It combines a premium analog tuner with an integrated power amplifier and a modern design that embraces both digital and analog technology.

FM Tuner:
Based on an advanced analog architecture to ensure uncompromising signal quality.
Supports reception of FM stations with high sensitivity and selectivity.
Features a filtering system to reduce interference and distortion.

Hybrid Amplifier:
Uses a combination of vacuum tubes and solid-state circuits to achieve a warm, natural and detailed sound.
Output power: approximately 125 watts per channel (into 8 ohms), suitable for driving a wide range of speakers.

Digital-to-Analog Converter (DAC):
Integrates a high-performance DAC to accept digital sources (such as CD players, streamers or others).
Digital Inputs: Coaxial.

Design and Construction:
Rugged metal body to minimise vibration and improve signal isolation.
Clear, intuitive display for FM station selection and other functions.
Elegant finish, typical of Magnum Dynalab products.

Versatility:
Supports a variety of analogue and digital sources, making it an ideal centrepiece for a Hi-Fi system.
Compatible with Magnum Dynalab accessories and upgrades to further optimise the sound output.

With a line-level pre-amp output, two balanced (XLR) inputs and three single-ended analogue inputs (including a surround sound processor input for integration with multi-channel applications), plus 2 COAX digital inputs, the MD-209 has all the flexibility you need.

Sonic Performance:
The MD-209 is renowned for its ability to deliver rich, dynamic and detailed sound, thanks to its design philosophy that combines the best of traditional and modern technology. It is ideal for those seeking an immersive listening experience, especially for classical music, jazz and high-quality FM broadcasts.

A device for those who do not accept compromises, designed to last over time and offer high-level performance.

Product Features:
Hybrid-Acoustic design: tube input stage, solid-state output stage
6922 CryoTubes (input stage)
20 Sanken output transistors (10 per channel) (input stage)
Upconverting and oversampling 24-bit, 192 kHz Burr-Brown DAC
World-leading FM section with eight stages of filtration

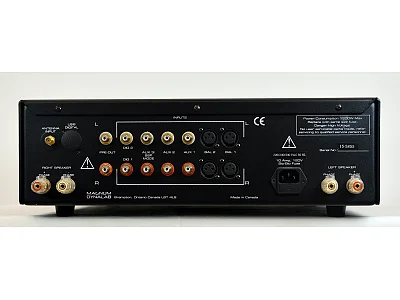

Analog Inputs: one line-level pre-amp output, two balanced (XLR) inputs, and three single-ended analog inputs (including a surround sound processor input for integration with multi-channel applications)
Digital inputs; 2 Coax
Outputs: 1 line level pre-out
Premium parts include Mundorf Supreme capacitors in the tube gain stage, Kimber Hyper-Pure cables throughout the device, WBT binding posts, and Cardas RCA connectors
Shielded torroidal transformer
650VA power supply
Eight Mundorf electrolytic capacitors (delivering a total of 80,000uF of filtration)
Audio protection board: Pproprietary circuit runs regular diagnostics
Bright LED display
Symmetrical knobs and meters
3/8"-thick functional faceplate
Product Specs

General Specifications:
Power: 125 watts in 8 ohms, 250 watts into 4 ohms
Audio Frequency Response (+/-0.1dB): 2Hz - 100KHz
Class of Operation: 50 % of gain class A, 50 % of gain class AB
Harmonic Distortion: < 0.05 % (2hz-100KHz)
Gain Control: Burr Brown
Signal to Noise Ratio: > -115dB
Total Harmonic Distortion: <0.1
Gain: 28 dB
Output devices: Sanken (bi-polar)
Input Sensitivity: 1.2 volts at full power
Input Impedance: 10K
Output Impedance: 2K
Fuse Replacement: 120V, 6.3amp slow blow OR 240V, 4 amp slow blow
Tube Specifications: 2 x 6922 Magnum Dynalab Cryovalve
Dimensions (WxDxH) cm: 48,26 x 49.53 x 16,51
Weight: 23 Kg

RF Specifications:
Usable sensitivity: (mono) 0.7 u V 9.0 dBf
50 dB quieting (mono): 2.0 u V 9.9 dBf
50 dB quieting (stereo: 2.3 u V 20.0 dBf
Capture ratio: 1.5 dB
Image rejection: 125.0 dB
Alternate channel (wide): >46.0 dB
Alternate channel (narrow): >80.0 dB
Adjacent channel (wide): 3.0 dB
Adjacent channel (narrow): 30.0 dB
THD (mono): 0.10%
THD (stereo): 0.10%
Stereo separation: 50.0 dB
AM suppression: 70.0 dB
SCA rejection: 80.0 dB
IF Rejection: 80.0 dB
19 KHz & 38 KHz component rejection: 75.0 dB
