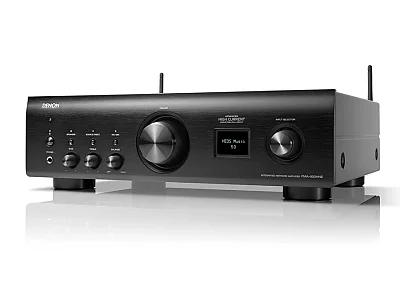

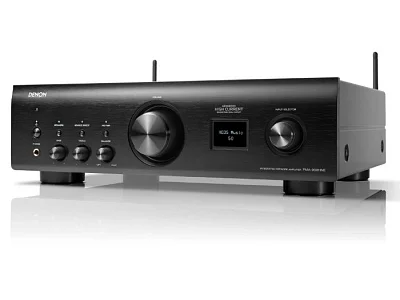

DENON PMA-900HNE

The Denon PMA-900HNE Integrated Network Amplifier, featuring Advanced High Current amplifier design, delivers superior audio from analog and digital sources. With Phono input, digital inputs for TV sound, plus network audio streaming by HEOS® Built-in, Denon PMA-900HNE upgrades your listening experience from any source.

Streaming amplifier with rich connectivity
The highest quality audio from analog, digital, and streaming sources.

Advanced High Current integrated amplifier
Engineered with premium Denon technology, this amplifier delivers 2x 85W.

Built-in music streaming
HEOS® Built-in provides access to music streaming services, AirPlay 2 and Bluetooth.

Build integrity with selected components
With more than 110-year of audio excellence, Denon products are built to last.

Streaming amplifier with analog and digital connectivity
Bring out the best from your analog, digital, and streaming sources with the Denon PMA-900HNE Integrated Network Amplifier featuring Advanced High Current amplifier design.

Advanced High Current integrated amplifier with 85W
Engineered with premium Denon amplifier technology and Advanced High Current capability, the PMA-900HNE integrated amplifier drives your loudspeakers with 85 watts of power-per-channel into 4 ohms.

Built-in music streaming via Wi-Fi, Bluetooth, and AirPlay 2 capability
The HEOS® Built-in Wi-Fi connects to your network to provide near-limitless streaming options. Listen to a wide array of online music services or connect to a smart device via AirPlay 2 or Bluetooth.

Optical and coaxial digital inputs
The PMA-900HNE features three optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24-bit to improve sound quality of your TV audio and more.


Specifications
Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%)     50W + 50W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%)     85W + 85W
Total Harmonic Distortion     0.01% (-3dB, 8ohm, 1kHz)
Power Amplifier Circuit     Advanced HC Single Push-Pull Circuit
Power Amp Output circuit Structure     Single Push-Pull with Darlington transistor
Pre Amplifier Circuit     Variable Gain Preamplifier
Volume     Electric - Controlled by Encoder
Bass Treble Mid Balance Control     Yes / Yes / No / Yes
Source Direct     Yes
Input Sensitivity: MM     2.5mV / 47 kohm
Input Sensitivity: MC     200
Signal to Noise Ratio: MM/MC     86 dB / 71 dB
Input Sensitivity: High level     105 mV / 40kohms (Source Direct Off)
Signal to Noise Ratio: High level     105dB
Treble Control     ± 8 dB at 10 kHz
Bass Control     ± 8 dB at 100 Hz

Features
Advanced HC-TR single push pull circuit     Yes
Wide range amplifier     Yes
High current dynamic power supply     Yes
Power amp discrete construction     Yes
Micro processor auto off     Yes
Solid Heat Sinks     Yes
Wi-Fi / Wired LAN     Yes / Yes
Wi-Fi     2.4GHz (11b/g/n) 5GHz (11a/n/ac)
Wi-Fi Off Mode yes

Bluetooth / aptX / NFC     Yes / No / No
Internet Radio     Yes (TuneIn)
Pandora     Yes (NA)
Sirius XM Internet Radio     Yes (NA)
Spotify Connect     Yes
Deezer Premium+ / Deezer HiFi     Yes / No (NA / EU)
QQ MUSIC     Yes (China)
Sound Cloud     Yes
Tidal     Yes (NA / EU)
Amazon Music Unlimited / Amazon Music HD / Prime Music     Yes / Yes / Yes
Napster     Yes
iHeartRadio     Yes (NA)
Mood Mix     Yes (NA / EU)
AWA     Yes(Japan)
Other     Yes
Airplay     Yes (Airplay 2)
DSD-Audio network streaming     Yes (5.6Mhz)
Lossy Formats: MP3 / WMA / AAC     Yes / Yes / Yes
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF     Yes / Yes / Yes / Yes / No
Gapless Playback     Yes
Remote APP: iDevice / Android     Yes / Yes
Sample Rate digital In     192 kHz / 24-bit
USB-A: DSD / WAV / FLAC / AIFF / ALAC     <=5.6 / 192 / 192 / No / 96
Works with Amazon Alexa     Yes
Works with Google Assistant     Yes
Works with Apple AirPlay (Siri) Yes


Others
Low Noise OELD display     Yes
Source Direct     Yes
Display: Dimmer / Off     Yes / Yes
IR Learning for TV     Yes

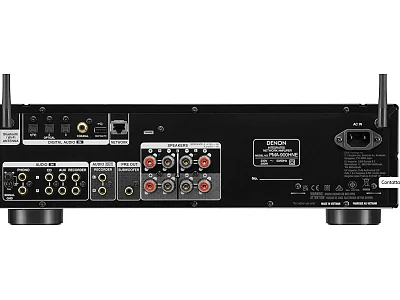

Inputs Outputs
Audio Inputs     RC-1246
Digital in: USB-B / optical / coaxial / USB-A     0 / 3 / 1 / 1
Phono Input: MM / MC     Yes / Yes
Audio Outputs
Pre-out / Main-in     Subwoofer / No
Power Amp Direct IN     No
Gold plated Cinch     Yes
Speaker A / B     Yes
Remote Control Bus in / out     Yes (Remote Out)
Headphone Out     Yes
Headphone Gain Control (low / mid / high)     No


General

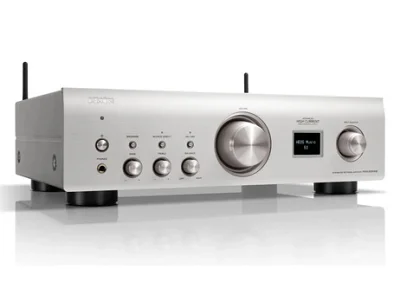

Available colors: Premium Silver / Black     Yes / Yes
Metal Front Panel     Aluminum
Power Consumption in W     200W
Standby Consumption in W     0.2W
Auto Power Off     Yes
Detachable Power Cable     Yes
Remote Control     RC-1246
System Remote Function     Yes
Maximum Dimensions (W x D x H)     434 x 376 x 131mm
17.1 x 14.8 x 5.2in
Weight     8.3kg
18.3lb
Carton Maximum Dimensions (W x D x H)     518 x 385 x 209mm
20.4 x 15.2 x 8.2in
Carton Weight (inc. product)     10.3kg
22.7lb
