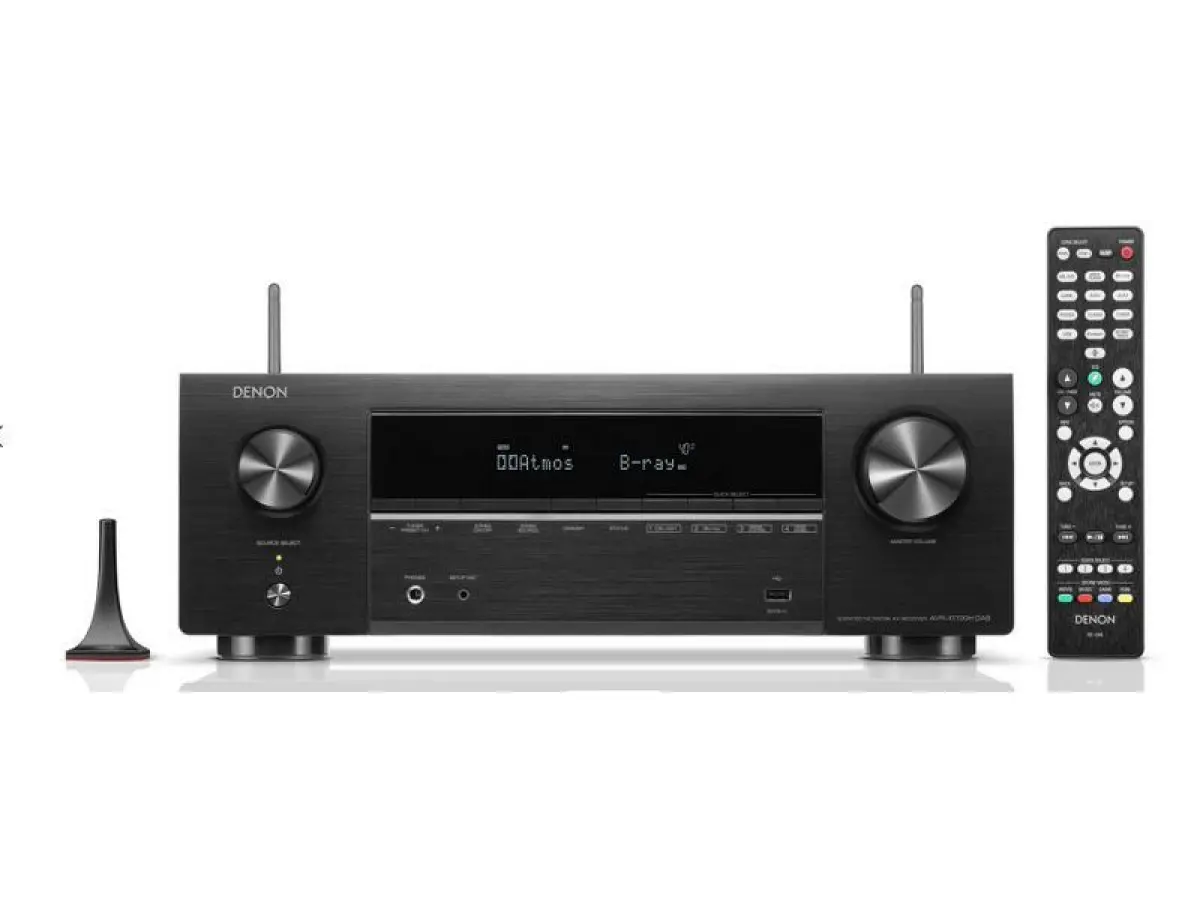

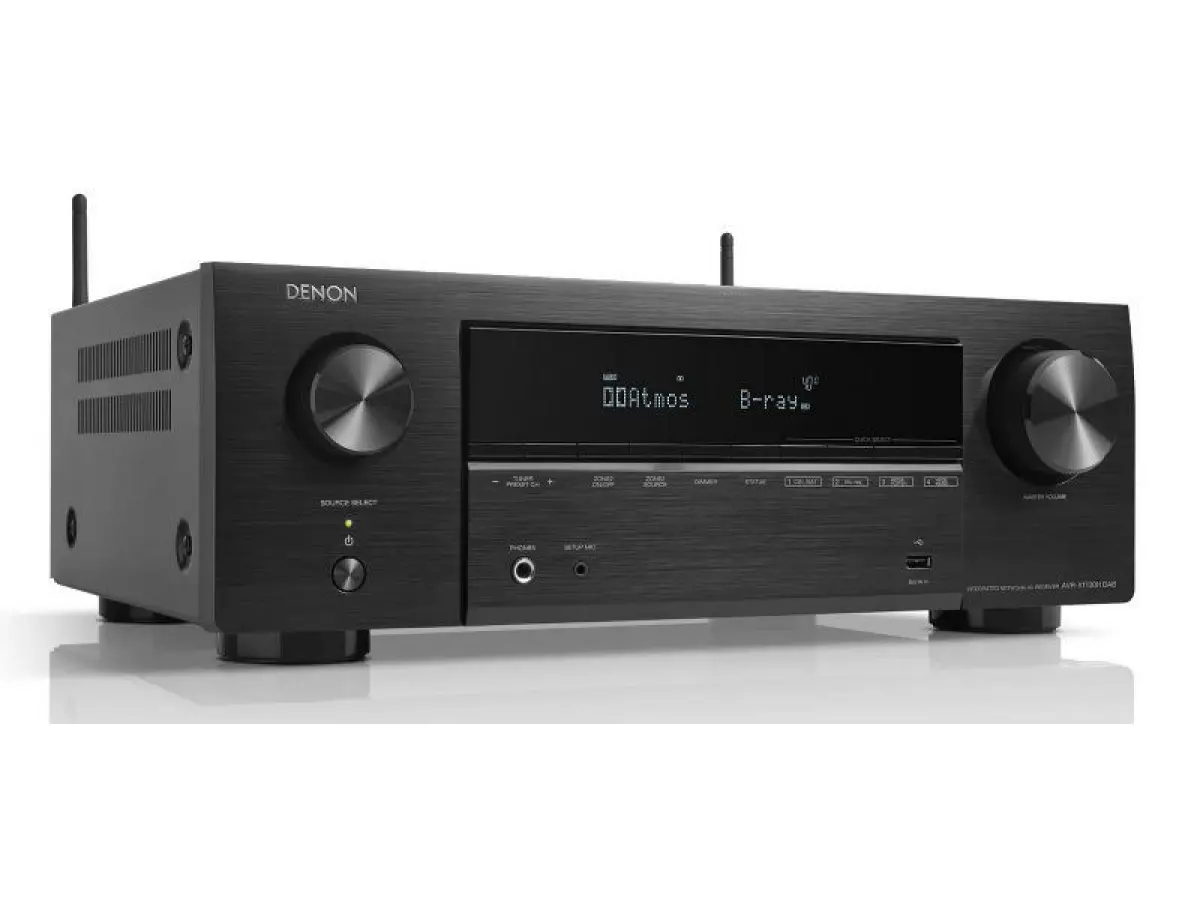

DENON AVR-X1700H DAB

7.2ch 8K AV Receiver with 3D Audio, Voice Control and HEOS® Built in

Designed for 4K or 8K setups, the AVR-X1700H delivers the ultimate 3D audio home theatre/gaming experiences and supports the latest HDMI specifications.

Technical specifications
Specifications
Number of Power Amps     7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)     80 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)     120 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)     145 W
General
Speaker impedance     4-16?/ohms
Input sensitivity     200 mV
Frequency response     10 Hz - 100 kHz ??? +1, ???3 dB (Direct mode)
S/N Ratio     98dB (IHF-A weighted, Direct mode)
FM section (Tuning frequency range)     87.5 - 107.9 MHz
Power Supply     AC 230 V, 50 Hz
Power Consumption in W     440
Power Consumption No-Sound (ECO On / Off) in W     29 W / 39 W
Weight in kg     8.6
3.5mm audio line-in connection     Yes
System Remote Control     RC-1244
Standby Consumption in W     0.1
CEC Standby Consumption in W     0.5
Carton Maximum Dimensions (W x D x H) in mm     523 x 435 x 232
Carton Weight (inc. product) in kg     10.6
vailable colors: Black / Premium Silver     Yes / No
Maximum Dimensions (W x D x H) in mm     434 x 339 x 151 mm
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
??? w/o Antenna :(W x D x H) in mm???     434 x 339 x 215 mm

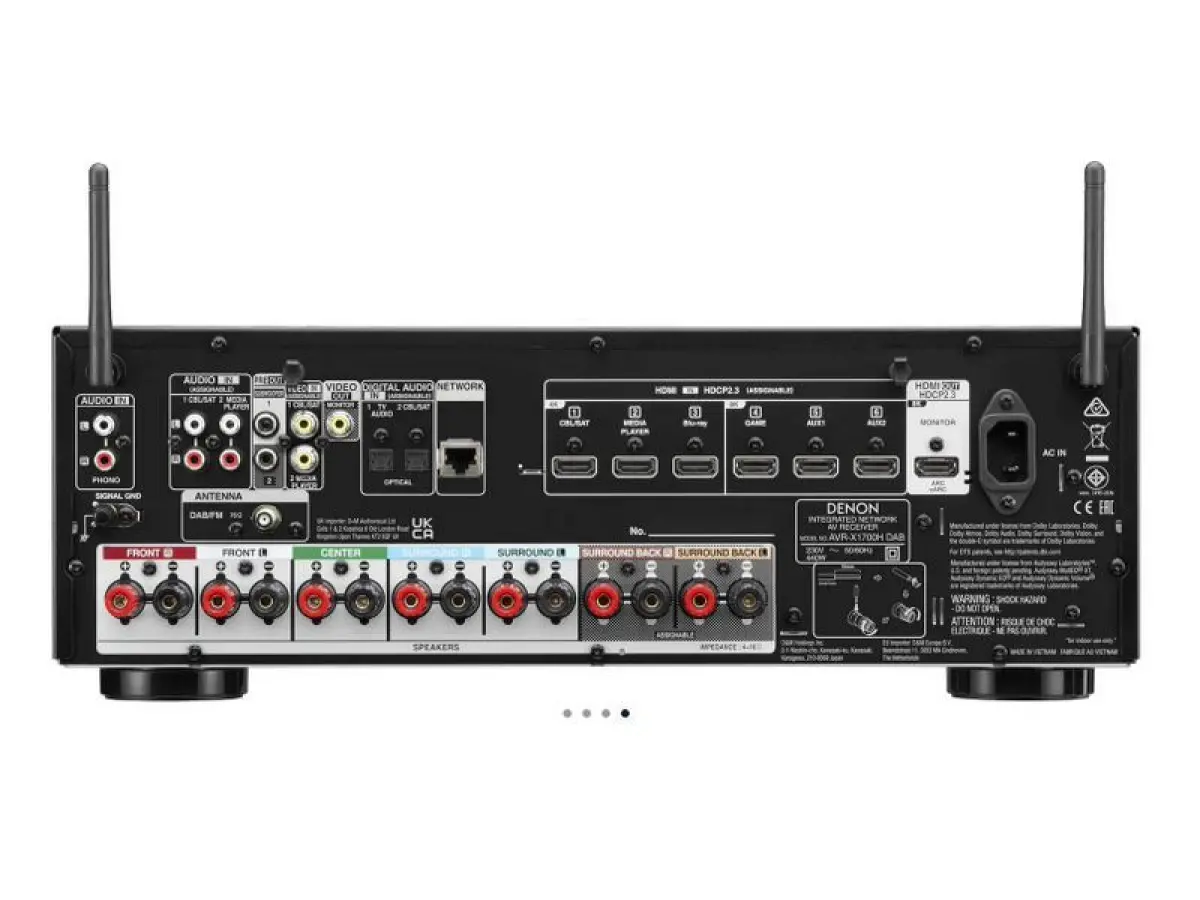

Inputs Outputs
HDMI In / Out     6 / 1
Composite In / Out     2 / 1
Phono (MM) In     Yes
Analogue In/out     2 / No
Digital Optical In/Out     2 / No
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB     No / No / No / No / Yes
Pre-out / Main-in     0.2 ch / no
Multi-Room Speaker Terminal     assignable
Headphone output     Yes
Ethernet     Yes
AM/FM Tuner     Yes
USB Audio / Made for iPod / Made for iPhone     Yes / AirPlay / AirPlay
Bi-amp Drive     assignable
Speaker A / B     assignable
Number of Speaker Terminals     7
Subwoofer Out     2
Multichannel Preout     Yes (0.2)
Digital Outputs: Coaxial / Optical     2 / 0
Digital Coaxial In / Out     2 / 0
DAB / DAB+ tuner     Yes
FM Tuner with RDS     Yes
Multichannel Surround
Max Number of Processing (Preamp) Channels     7.1
DTS HD Master / DTS:X     Yes / Yes
DTS Neo:X / DTS Neural:X     No / Yes
DTS Virtual:X     Yes
Dolby TrueHD / Dolby Atmos     Yes / Yes
Dolby ProLogic Ilz / Dolby Surround     No / Yes
Dolby Height Virtualization     Yes
Multichannel Stereo     Yes
Dialog Enhancer     Yes
Sound Enhancements
Discrete Power Amplifiers     7
Audyssey Dynamic EQ / Dynamic Volume     Yes / Yes
Speaker Setup Presets     2
Audyssey     MultEQ XT
Audyssey APP Support     Yes
Compressed Audio Restorer     Yes
Network
Gapless playback     Yes (FLAC, WAV, ALAC, DSD)
Internet Radio     TuneIn
Compatible with Remote APP for Smart Phones     Android / iOS
Compatible with Remote APP for Tablets     Android / iOS / Amazon Kindle
HEOS Multiroom and Streaming     Yes
Lossy Formats: MP3 / WMA / AAC     Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV     Yes / Yes / Yes
DSD Audio Streaming     up to DSD5.6
FLAC HD 192/24     Yes
WAV 192/24     Yes
ALAC 192/24     Yes
AirPlay 2     Yes
Roon Tested     Yes
Spotify Connect* / Tidal* / Deezer* / others *     Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora*     Yes / Yes
Ethernet Ports     Yes
Wi-Fi     Yes
Bluetooth     Yes
Bluetooth Headphone transmission     Yes

HDMI
HDMI Inputs: Back / Front     6 (3x 8K) / 0
HDMI max Resolution (8k / 4k)     8k/60 - 4k/120
HDMI Outputs: Main / Zone     1 / -
HDMI to HDMI Scaling     up to 8K 60/50
HDCP2.3 support     Yes
HDMI: 8K / 4K / CEC / eARC     Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG     Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR     Yes / Yes / Yes / Yes
HDMI pass-though in standby mode     Yes
Multi-room CI
Multiroom zones     2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog     Yes (2ch) / Yes (2ch) / Yes / Yes
HEOS Multiroom integrated     Yes
TV Sound grouping     Yes
Main room multichanel audio - Zone stereo downmix     Yes
Zone Audio Output: Speaker / Preout     Yes / No
Webbrowser User Interface     Yes
IP Control / RS232 Control / Web Control / App Control     Yes / No / Yes / Yes
Others
Auto Speaker Setup by Microphone     Audyssey MultEQ XT
FL Display     1 line
Graphic User Interface - GUI     Hybrid GUI
GUI Languages     9
Voice Control - Works with Amazon Alexa     Yes
Voice Control - Google Assist / Apple Siri     Yes
Setup Assistent     Yes
Quick Select Plus / Quick Select     Yes / No
Firmware Update by: Network / USB     Yes / Yes
Variable Cross Over     Yes
Optimized Bass Redirection     Yes
ECO Mode     Yes
Auto Power Off     Yes
Sleep Timer     Yes
