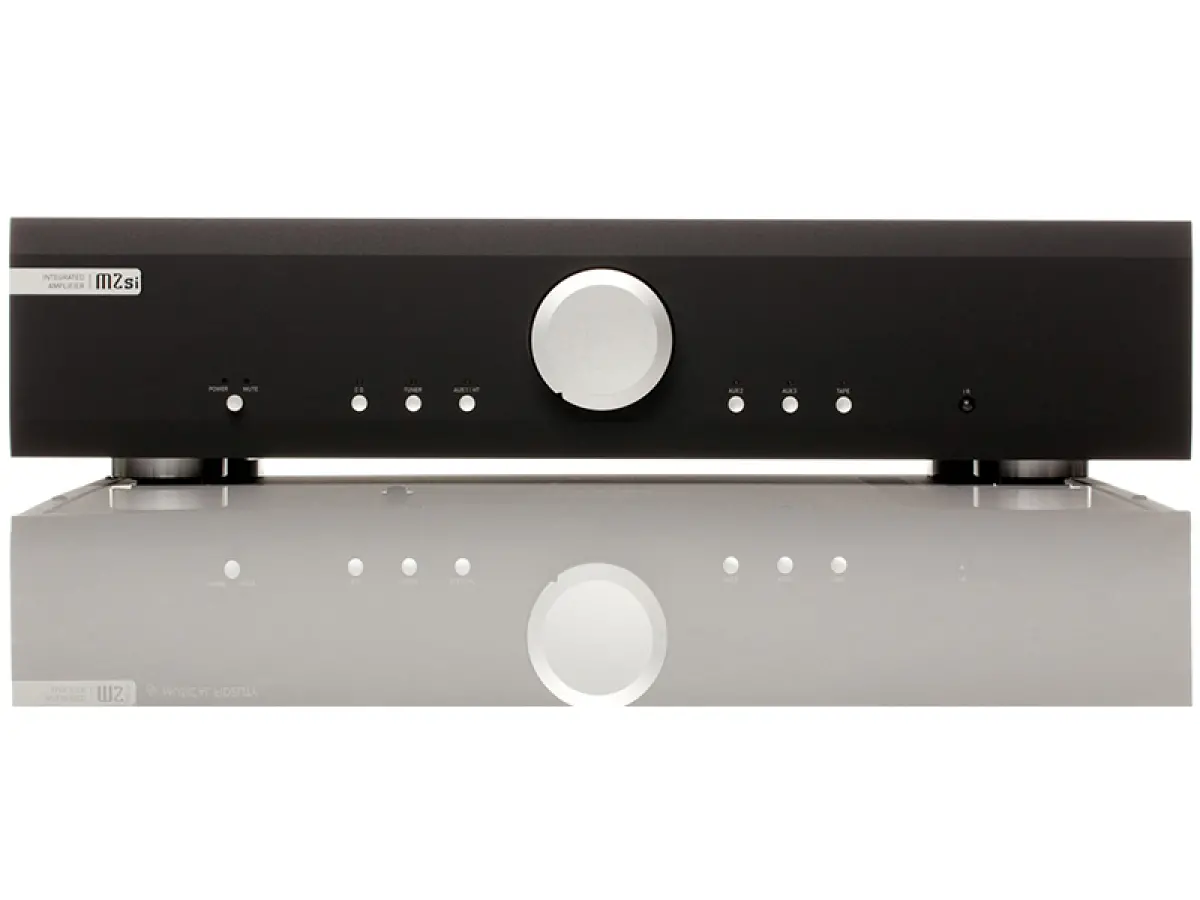

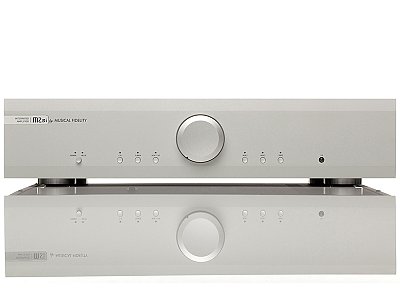

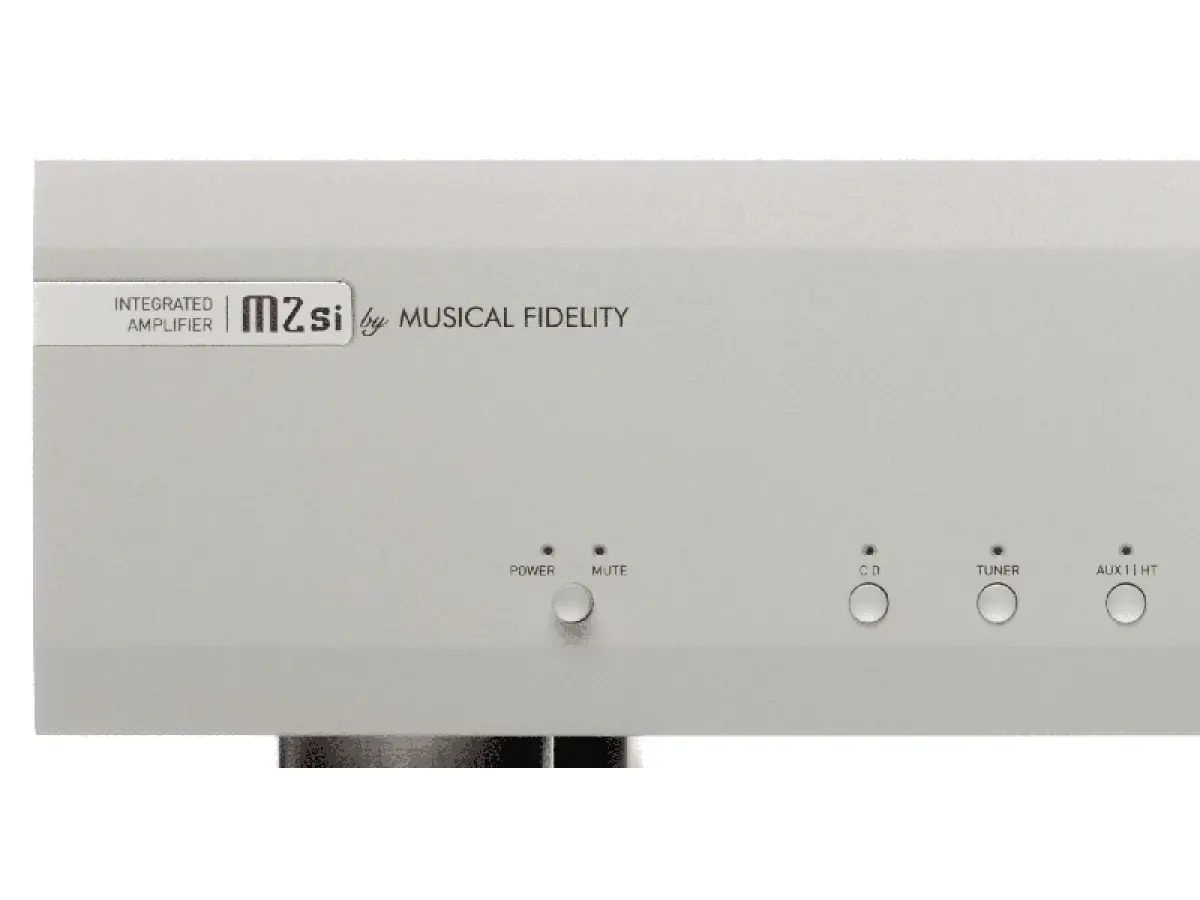

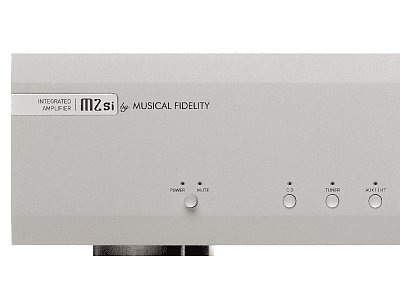

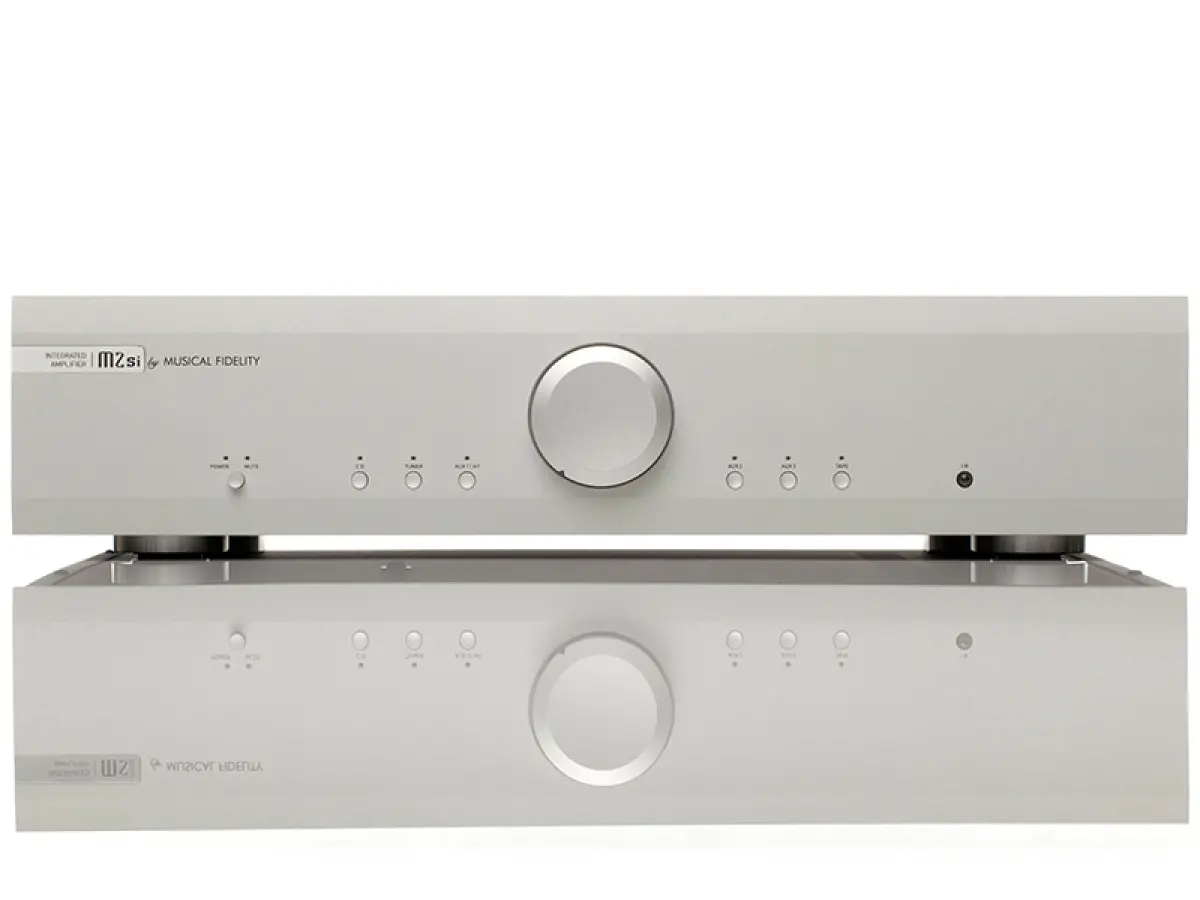

MUSICAL FIDELITY M2SI

Amplificatore integrato. Potenza 2x76W su 8ohm, 2x137W su 4ohm. Stadio di preamplificazione in classe A e finale a discreti. Layout circuitale SMD. 6 ingressi linea. Uscita pre out. Telecomando.

Specifiche tecniche
Output
Power 72 Watts per channel into 8 Ohms (18dBW)
Voltage 22 Volts RMS, 20Hz to 20 kHz; onset of clipping
62 Volts peak to peak
Current 25 Amps peak to peak
Damping factor 36
Output devices 1 pair per channel

Line input
THD+N < 0.014 % typical, 20Hz to 20 kHz
Signal / noise ratio > 96dB ‘A’-weighted
Input impedance 40 k Ohms
Frequency response +0, –0.1dB, 10Hz to 20 kHz

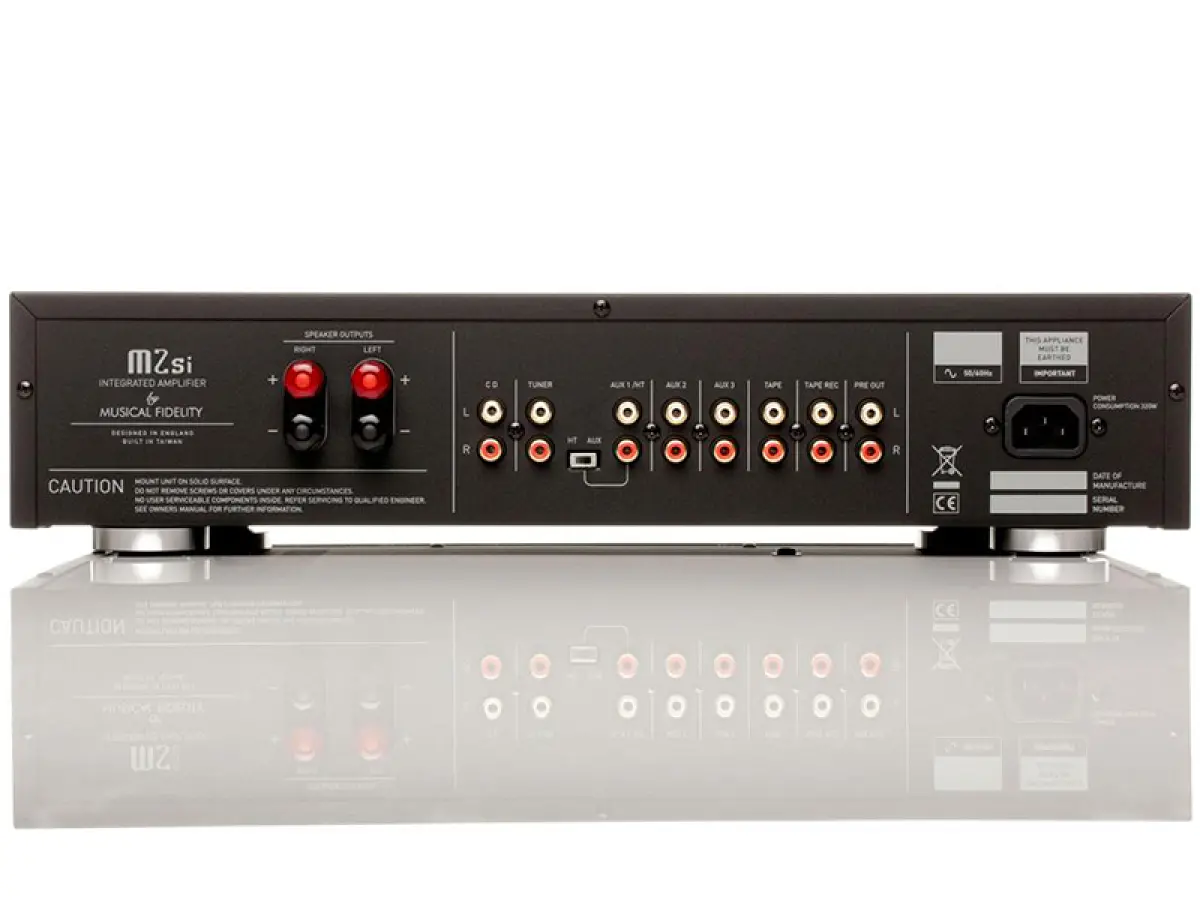

Connections
Line level inputs 6 pairs line level RCA connectors
Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
1 pair line level RCA connectors, preamp outputs for e.g. biamping
Speaker outputs 2 pairs 4mm banana plug/binding posts

Power requirement
Mains voltages 115/230VAC 50/60Hz (factory pre-set)
100VAC 50/60Hz (alternative)
Consumption 320 Watts maximum

Weight
Unit only, unboxed 9.2 kg (20¼ lbs)
In shipping carton 13 kg (30??? lbs)

Dimensions
Wide 440 mm (17???”)
High, including feet 100 mm (4”)
Deep (front to back) including terminals 400 mm (15¾”)
