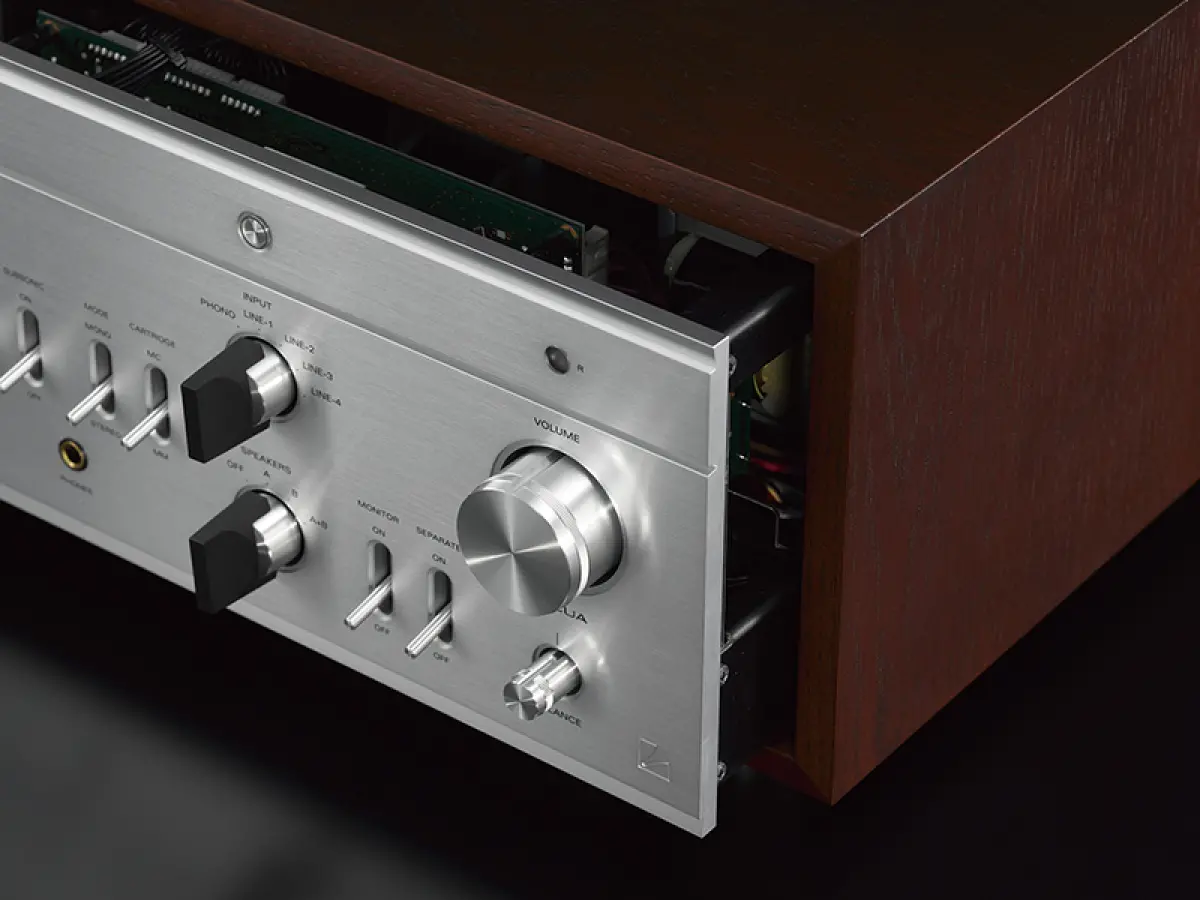

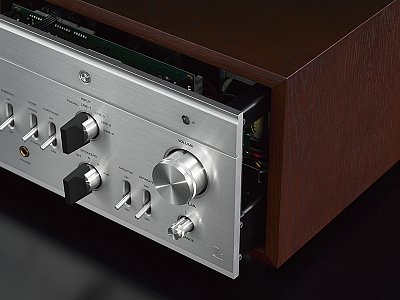

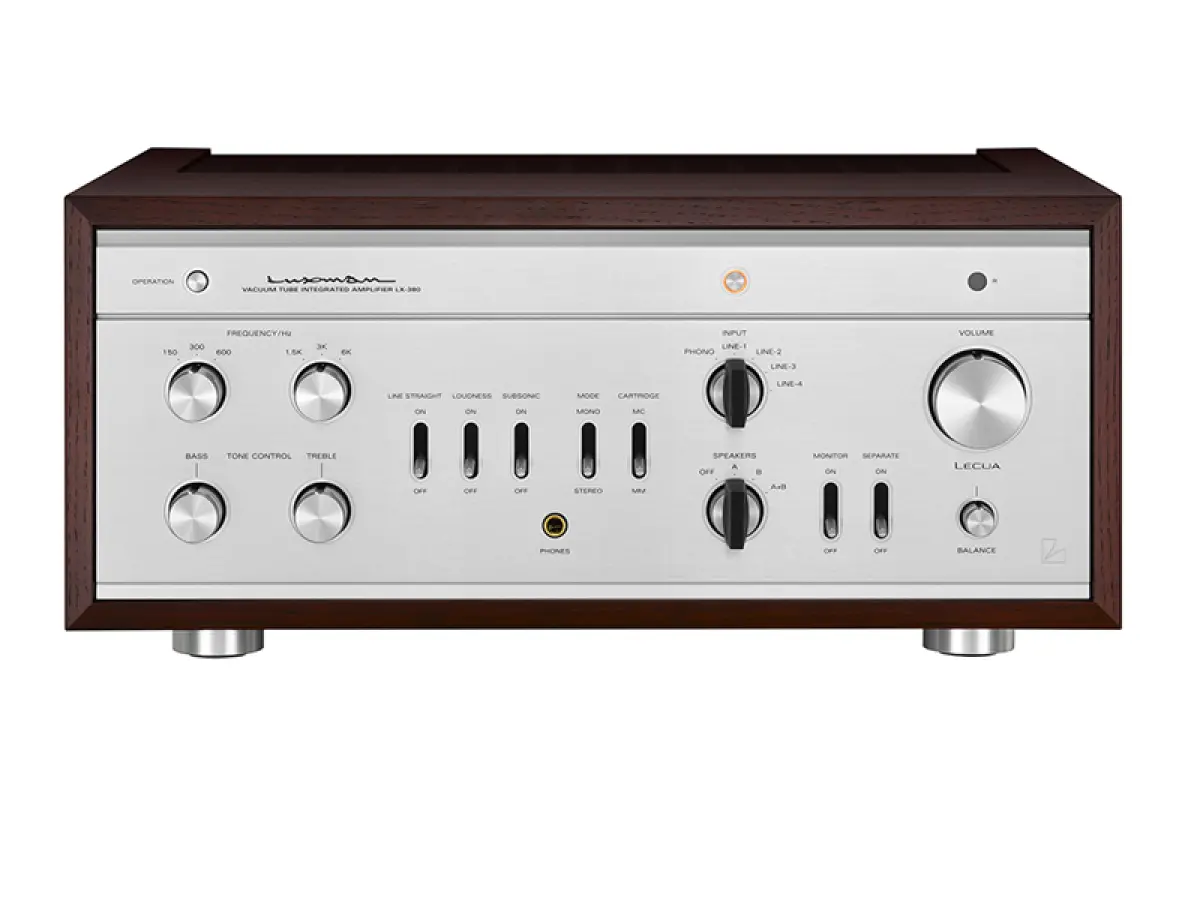

LUXMAN LX-380

Prezzo riferito al prodotto in esposizione

Amplificatore integrato stereo Hi-End a valvole 6L6GC x 4, 18W x 2 su 8 ohm, sensibilità ingresso Phono MM/MC 3mV/0,38mV, Linea 180mV controllo volume LECUA, uscita pre out, rapporto S/R > 95dB (Linea) risposta in frequenza Linea 20Hz-80kHz (+- 0,5dB)/ Phono 20Hz-80kHz (+0, -3.0dB). Dimensioni 440 x 197 x 403mm, peso 17.6 kg. Finitura Silver


Caratteristiche tecniche
Rated output: 20W20W (6Ω), 18W18W (8Ω), 14W14W (4Ω)
Input sensitivity:
PHONOMM 3.0mV / 47kΩ
PHONOMC 0.38mV / 100Ω
LINE  180mV / 47kΩ ã€Â?MAIN IN  690mV / 100kΩ
Frequency response:
PHONO  20HzïÂœÂ?20kHz±0.5dB
LINE  20HzïÂœÂ?80kHz0, -3.0dB
Total harmonic distortion: 1% or less (6Ω, 1kHz)
S/N ratio (IHF-A):
PHONO (MM): 84dB or more, PHONO (MC) : 67dB or more
LINE: 95dB or more
Volume adjustment: LECUA
Circuit Driver : Mullard, Output : beam tetrode connection
Vacuum tubes: 6L6GCx4, ECC82x3
Output configuration: Push-pull
Max. amount of tone control: ±8dB, turnover frequency switch-over system
BASS: 150 / 300 / 600Hz, TREBLE : 1.5k / 3k / 6kHz
Power supply: 230Vã€Âœ(50Hz) / 115Vã€Âœ(60Hz)
Power consumption: 127W
Eternal dimension: 440(W) x 197(H) x 403(D)mm
front side knob of 25mm and rear side terminal of 28mm included in depth
Net weight: 17.6kg (main unit)
