GRAHAM CHARTWELL LS6 CHERRY

Pair of stad-mounted loudspeakers; dedicated stands € 1430,00

Following the success of the Graham Audio LS3/5 & LS5/9, we decided to develop a speaker that had the smoothness of both with the extension and power handling of the 5/9, but in a more compact cabinet.

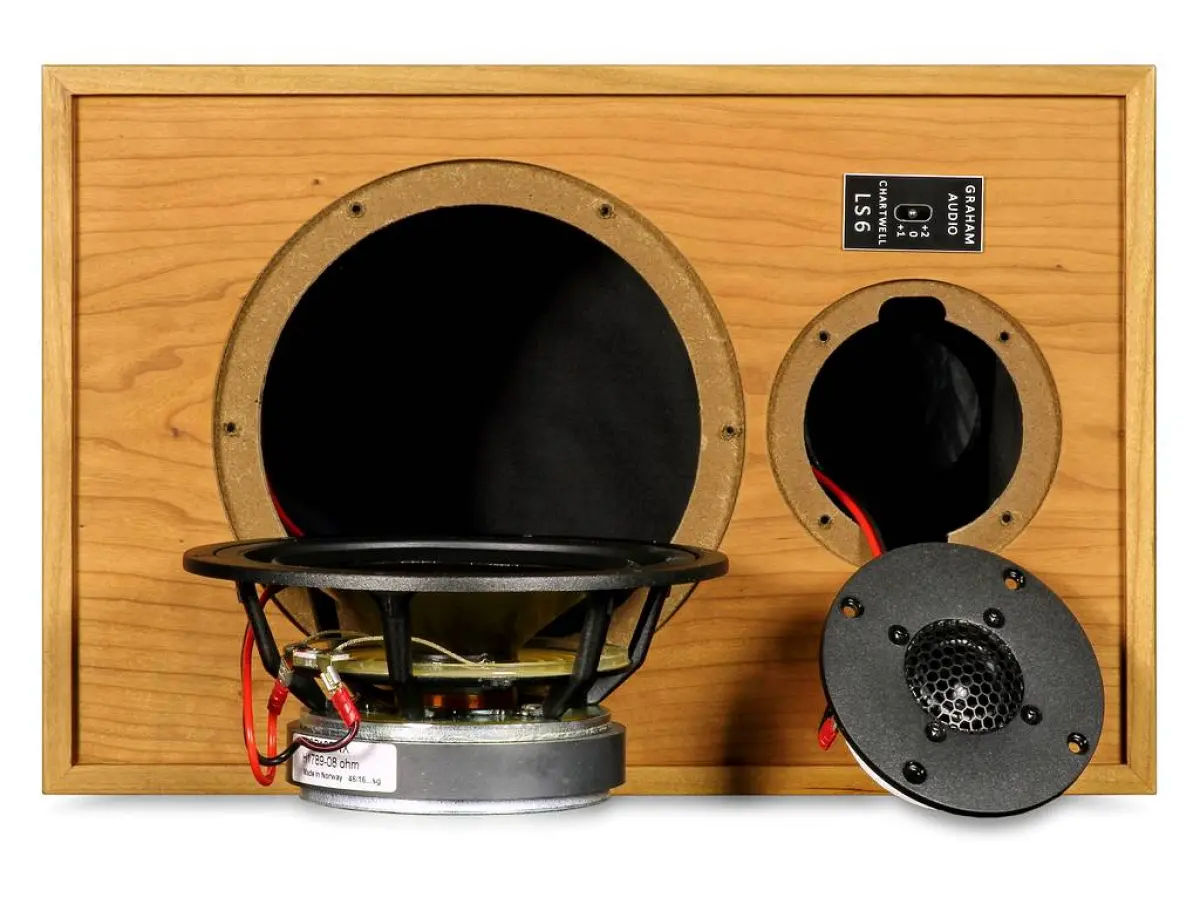

The result is the Chartwell LS6, designed by Derek Hughes it is a 17 litre speaker using a custom built long throw 18cm Polypropylene driver, giving us similar LF power handling as the LS5/9, together with the 19mm tweeter that has been so well regarded in the LS3/5.
A large rear mounted port give deep effortless bass, while keeping the front aspect compact so as to blend easily into typical domestic environments.
A sophisticated crossover network blends the units and equalises the overall response for optimum performance in free space. A switch on the front baffle adjusts the tweeter level to +1 or +2dB. This can be useful for situations where the listening position is off axis to restore the response to optimum.
As with the rest of the Graham Audio range, the cabinet uses the classic BBC "thinwall" construction, where the panels are mass-loaded to ensure that resonances are moved away from the critical mid-range region, and a layer of Rockwool held in place by fabric provides air damping. Hand-matched veneers are applied and finished to a very high standard. The grille is carefully designed to minimise diffraction effects and is held in place by concealed rareearth magnets.


Specifications
System: 2 Way, reflex loading
Enclosure: Thin wall damped construction
Finish: Real wood veneer
Dimensions (w/h/d): 24cm by 37cm by 26cm
Weight: 9.5kg
Frequency response: 45Hz to 20kHz, ±2dB
Nominal impedance: 8??©
Sensitivity: 87dB SPL (2.83V, 1m)
Maximum output: Over 100dB for a pair at 2m
Bass/midrange: 165mm Polypropylene
Tweeter: 19mm Dome tweeter
Recommended amplifier power: 50 to 150 watts unclipped programme
