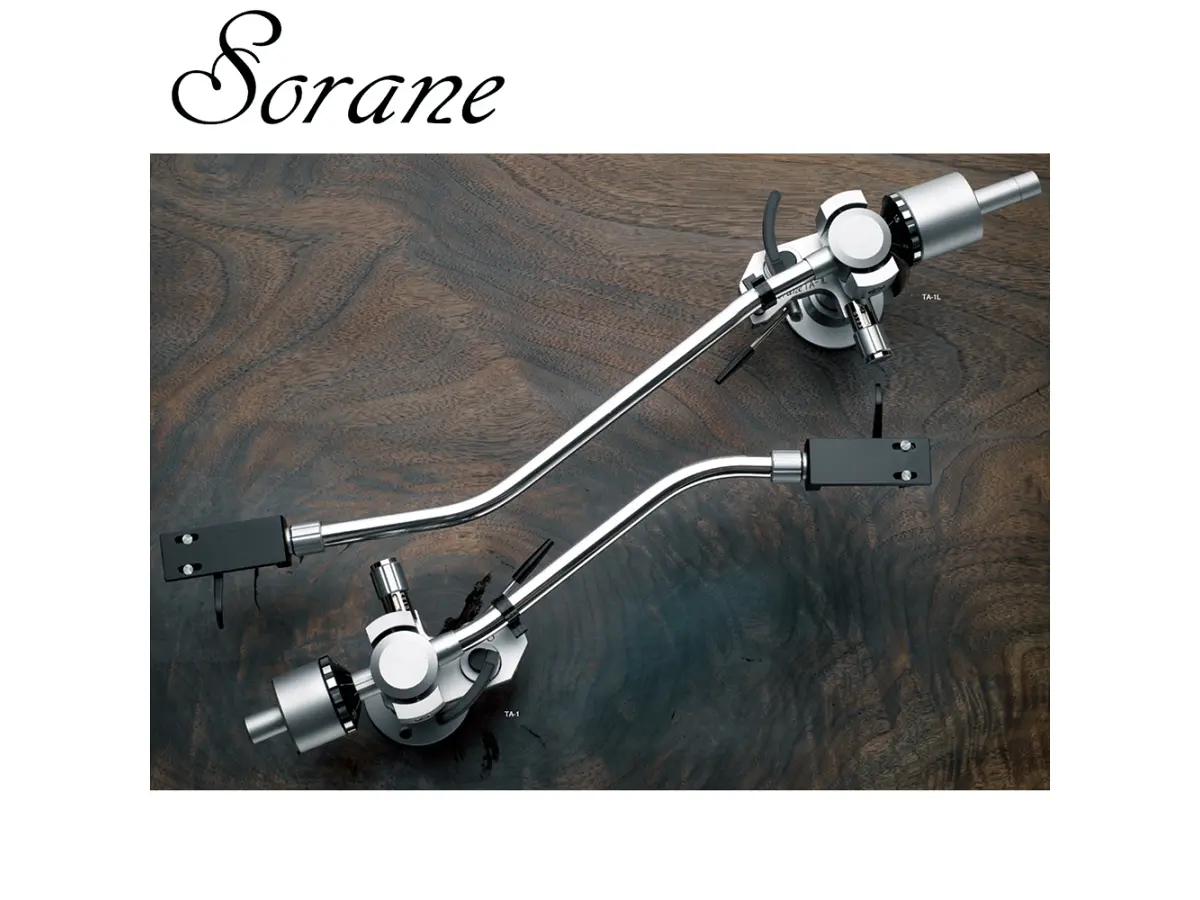

SORANE TA-1L

12 inches silver tonearm

Resistance to movement creates unwanted low frequency noise and cantilever deflection, skewing the image and moving the signal generating coils/magnet out their ideal geometric relationship.  The TA tonearm range use a miniature radial bearing for horizontal movement and a miniature pivot bearing for vertical movement.  Very high performance is achieved at a reasonable price.
The saddle and bearing housing are machine-tooled from billet aluminum, and the arm is formed of high quality tubing.
The hand-assembled, tested and adjusted arm-tube and bearing structures guarantee vibration-free and noise-free reproduction.
Reproduced sound is precise, focused and clean, without bearing noise and inconsistent movements.
The TA1L comes with detachable headshell, phono cable (RCA output plug, or optionally as XLR), screws, washers, wrench and marking pin.
Though a conventional arm in appearance, the careful attention to detail produces an arm of outstanding quality.
A spring activated anti-skating device offers consistent and precise adjustment, cartridgedownforce is via  rear counterweight adjustment. The removable headshell offers azimuth adjustment.
This 12” long tonearm works best with medium to low compliance cartridges, such as Hana or other MC types.

Total length, front to back:  380mm
Spindle to pivot distance: 310mm
Stylus to pivot distance: 322mm
Overhang: 12mm
Cartridge Weight Range: 15-24 grams with headshell
Total Weight: 610grams (with headshell attached: 627g)
Anti-skating: up to 3 grams
