POWERGRIP YG-3

HIGH CAPACITY 16A, 3680W. Good base for any power hungry system. 6 specially designed sockets for amplifiers.

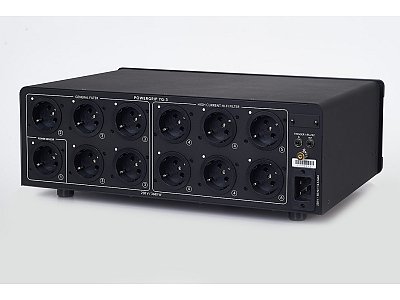

12 SOCKETS All devices in your system will be connected to one power console. 6 groups can be powered on/off separately.

EVEN MORE

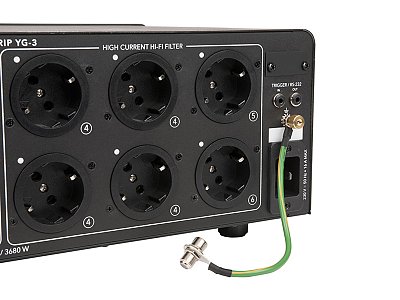

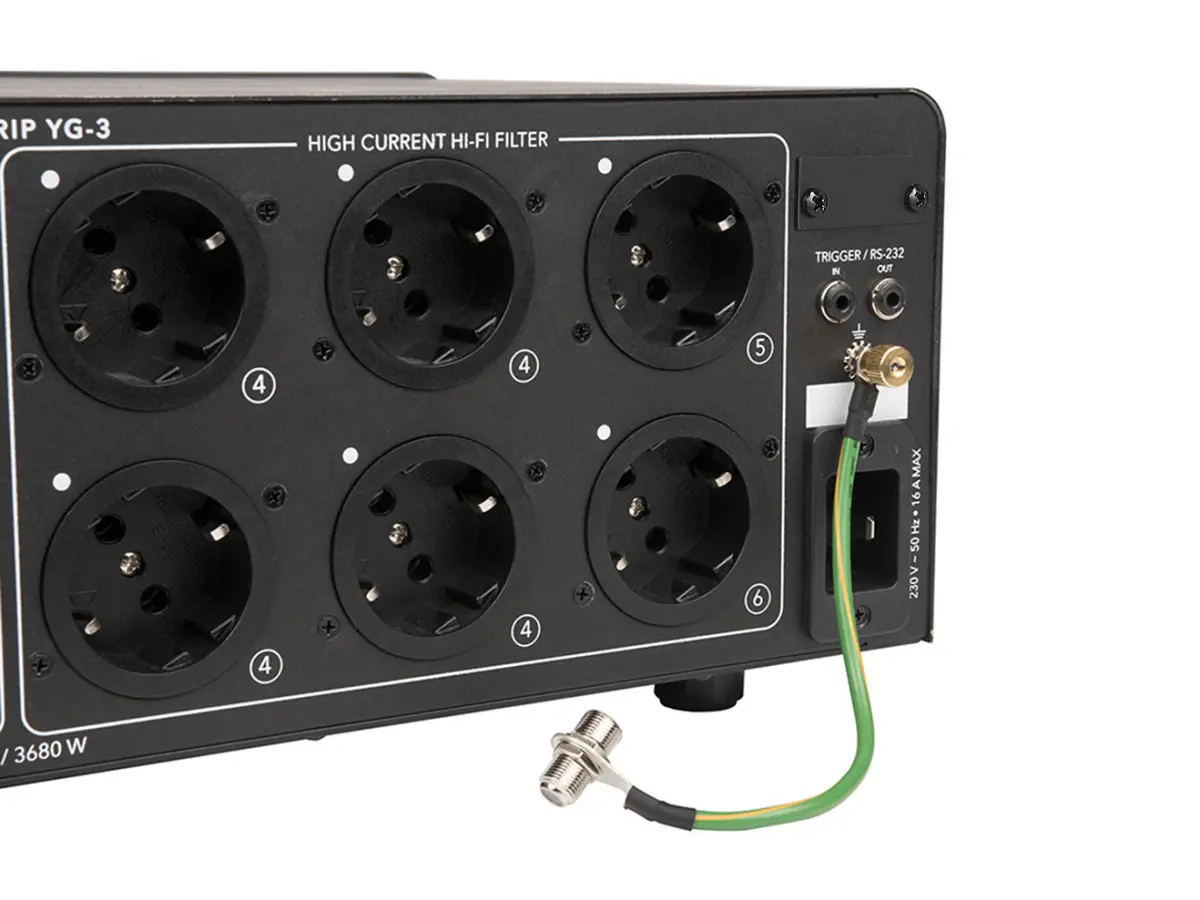

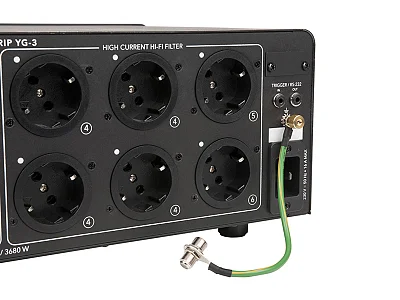

Antenna grounding
Wi-Fi for control
Enhanced settings menu
Configurable filtering
DC filter on demand
Power line monitoring

SIMPLE TO CONTROL
7 sensor buttons.
Mobile App via Wi-Fi.
Power sensor will switched your system on if one of your devices is switched on.
Trigger in/out, RS232 for professional control.

PROTECTION
POWERGRIP YG-3 got most reliable 3 level protection system.
You can be sure no troubles in power line will harm your devices. While keeping your devices in safe, YG-3 itself will keep alive up to 320V! If more than 320V, simple fuse change will bring it to life.

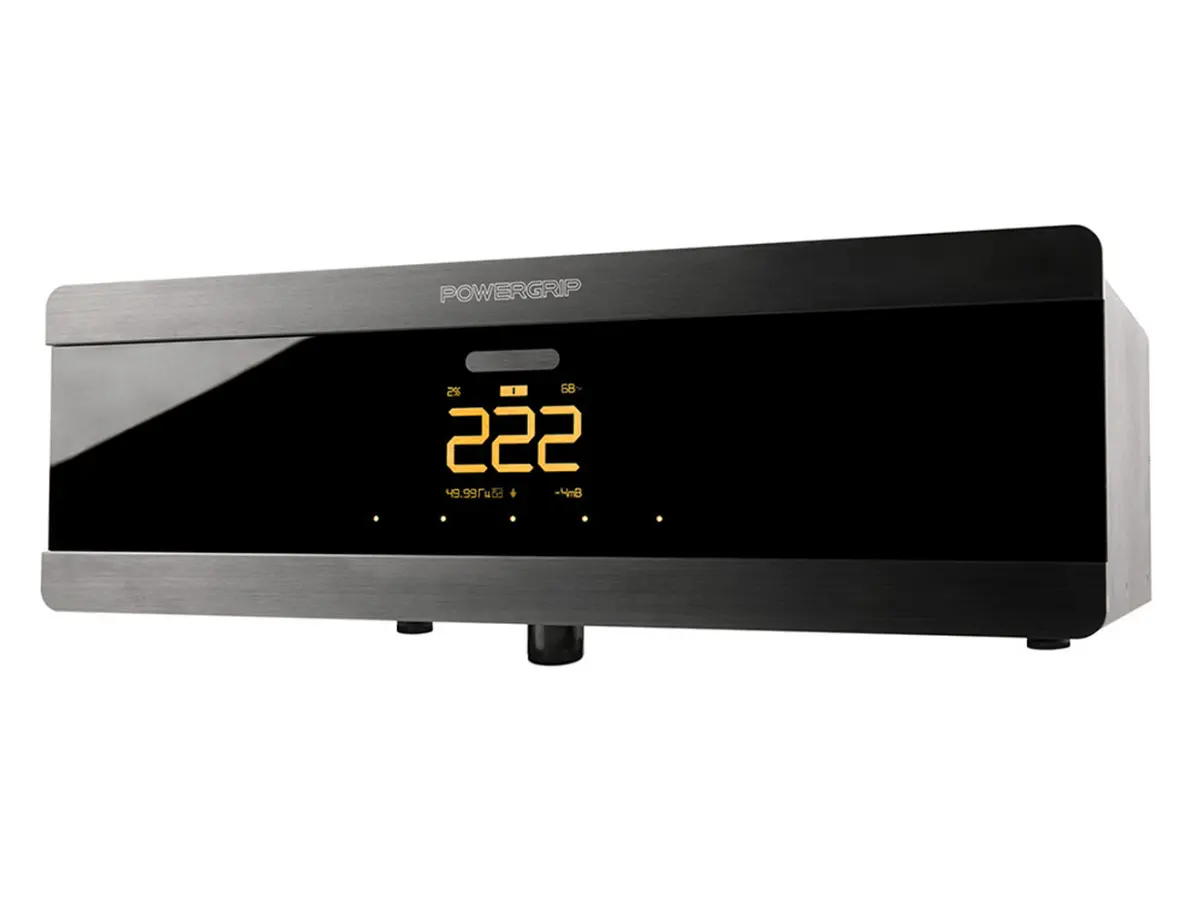

DISPLAY
Any color.
Few styles.
Power line monitoring.
Light sensor controls display brightness till full off state.

CARATTERISTICHE ELETTRICHE
Voltage range for safe continuous operation of YG-3 PSU 160 – 320 V
Maximum current of the internal wiring of the console 25 A
Maximum current of power cord and power socket 16 A
Self power consumption 1.4 W – 20 W depends on used features
?onsumption in case of full power off by button 2 0 W
Neutral pass through resistance < 0.00005 Ohm
Live pass through resistance (high current hi-fi filter without fuse and fuse holder) 0.015 Ohm
Fuse Resistance 0.01 Ohm (with holder), size 5 x 20mm, current 16 A
DC measure range ± 999 mV
Maximum filtering DC value 1.8 V
Maximum on/off delay 60 sec
SETUP AND CONTROL
Controls 7 sensor buttons and full of switch on a bottom
Remote control Wi-Fi (Ewelink APP)
Integration (RTI, ?ontrol4, Crestron etc.) Trigger, RS232, Ethernet (option)
Screen menu Brightness, color, style, filtration, always on sockets, delays
Auto switch on Power sensor (detect connected device power state), light sensor
PACKAGE INCLUDES
PACKAGE Power console
Power cord (2 m)
Rack mounts
Antenna grounding cable
Direct power cord connection blanket
GENERAL DATA
Number of sockets 12
Power cable cross size 3.3 mm²
Cross size of power cables internal wiring 3.3 mm² (High current Hi-Fi section)
Console weight 7.6 kg
Dimensions (H x W x D) 156.5 ? 440 ? 280 mm (incl feet)
PROTECTION PARAMETERS
Protection voltage range (turn off connected devices) low: 190 V, high: 256 V
May be influenced by other parameters like mains distortion to provide best protection and exclude false triggering
High Voltage Surge Protection Varistors
