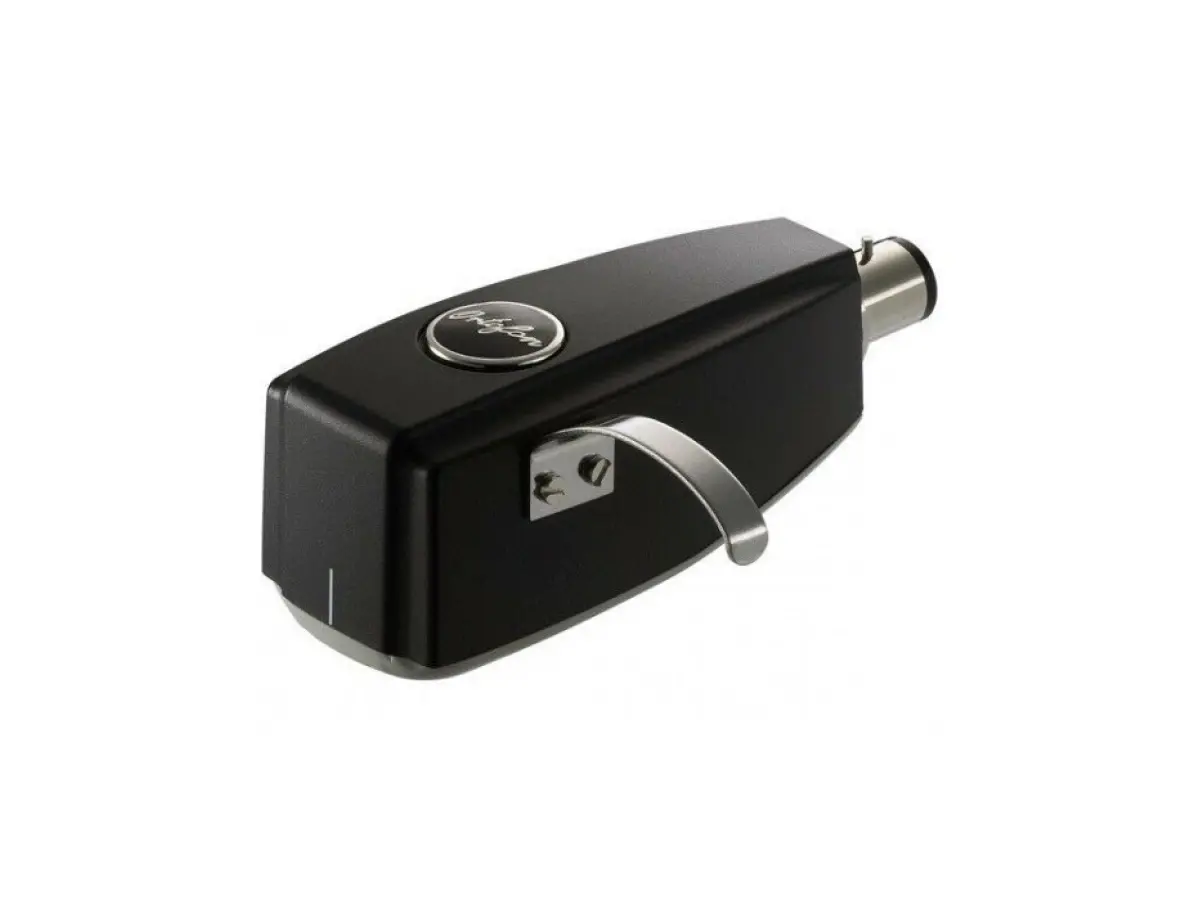

ORTOFON SPU CLASSIC GM MKII
MC Cartridge
Code: 1000050
All our products are covered by Italian warranty.
The SPU Classic GM MkII, known for its dynamic and powerful sound reproduction, is a Moving Coil cartridge with an 18 µm spherical stylus profile.
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
Techical data
Output voltage at 1000 Hz, 5cm/sec.0.2 mV
Channel balance at 1 kHz< 1 dB
Channel separation at 1 kHz> 20 dB
Channel separation at 15 kHz> 10 dB
Frequency range at - 3dB20-25.000 Hz
Frequency response20-20.000 Hz ± 3 dB
Tracking ability at 315Hz at recommended tracking force *)> 65 µm
Compliance, dynamic, lateral8 µm/mN
Stylus typeNude spherical
Stylus tip radiusR 18 µm
Tracking force range3.0-5.0 g (30-50 mN)
Tracking force, recommended4.0 g (40 mN)
Tracking angle20°
Internal impedance, DC resistance6 Ohm
Recommended load impedance> 10 Ohm
Cartridge body material Grinded wood
Coilwire materialHigh Purity Copper (OFC)
Cartridge colourNickel/Black
Cartridge weight31.5 g
