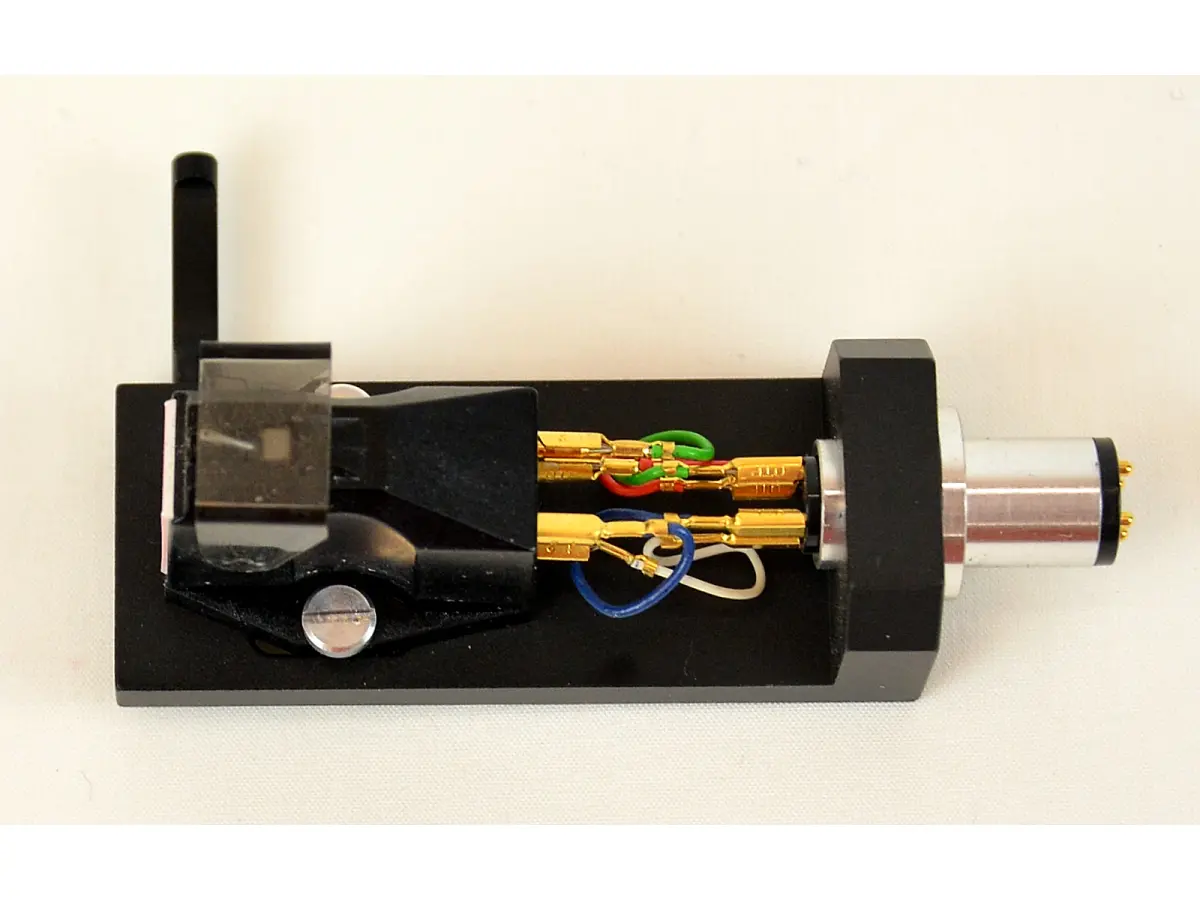

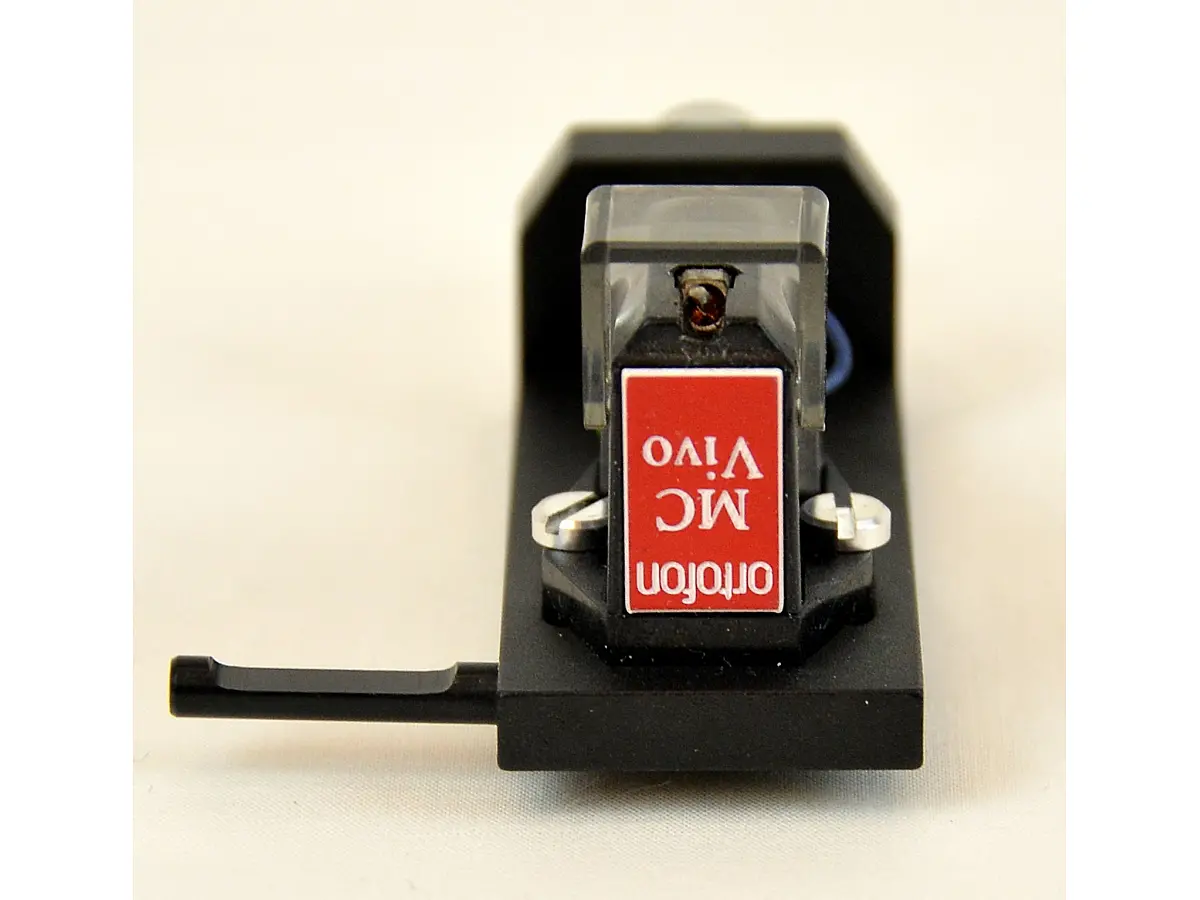

ORTOFON MC VIVO RED

Second-hand cartridge, in good condition.

Cartridge

A special 7-nines (99.9999% pure) copper wire manufactured in Japan.
Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
A special and newly developed polycarbonate based resin, Lexan DMX, in Piano Black is used for manufacturing of the body. This revolutionary material improves rigidity and damping properties and also has a very durable scratch resistant surface. Rigidity is an important performance character as the plastic-body serves as basis for the generato.


Technical data
Output voltage at 1000 Hz, 5cm/sec.0,5 mV
Channel balance at 1 kHz< 1,5 dB
Channel separation at 1 kHz> 23 dB
Channel separation at 15 kHz> 15 dB
Frequency range at - 3dB20-25.000 Hz
Frequency responce20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *)> 65 µm
Compliance, dynamic, lateral13 µm/mN
Stylus typeElliptical diamond on alu cantilever
Stylus tip radiusr/R 8/18 µm
Tracking force range1,6-2,0 g (16-20 mN)
Tracking force, recommended1,8 g (18 mN)
Tracking angle20°
Internal impedance, DC resistance6 Ohm
Recommended load impedance> 10 Ohm
Cartridge body materialLexan DMX
Cartridge colourBlack
Cartridge weight 7 g
