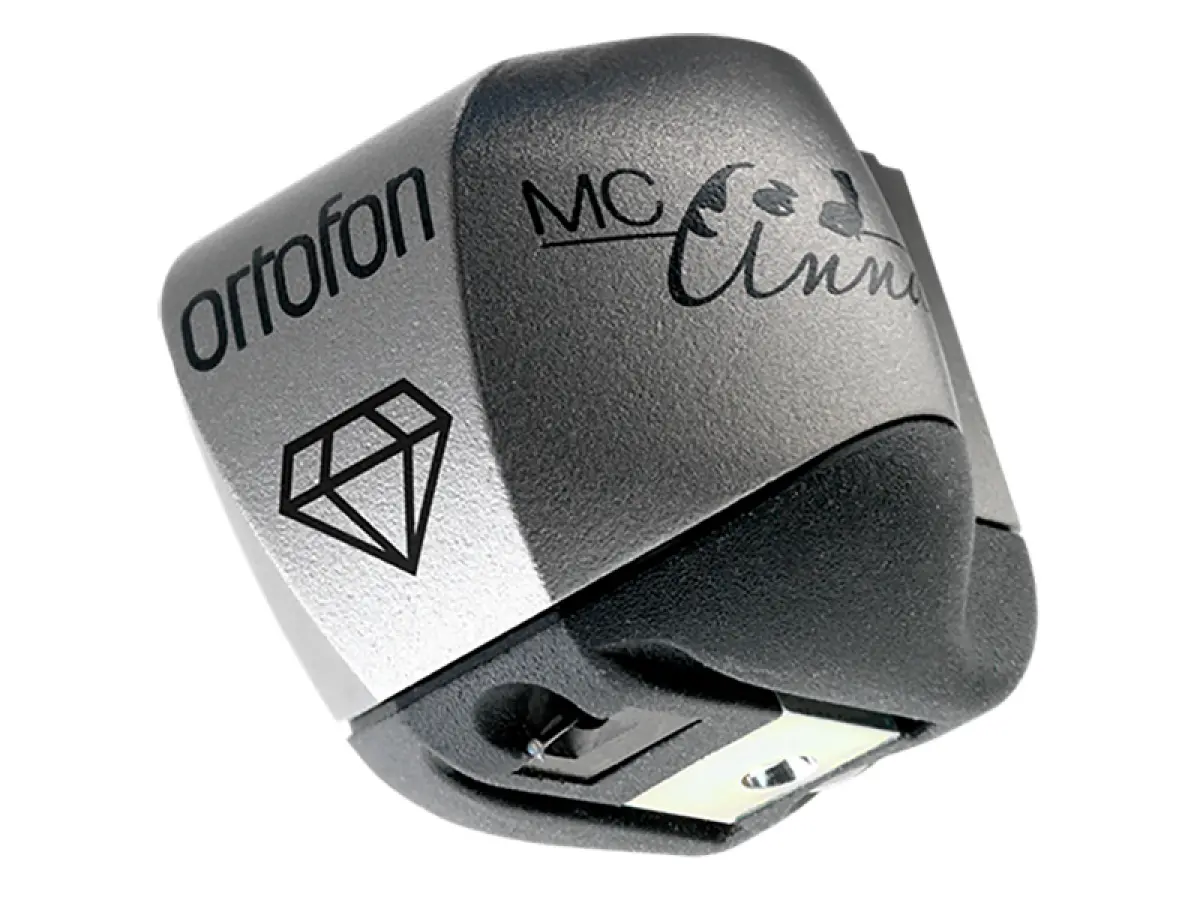

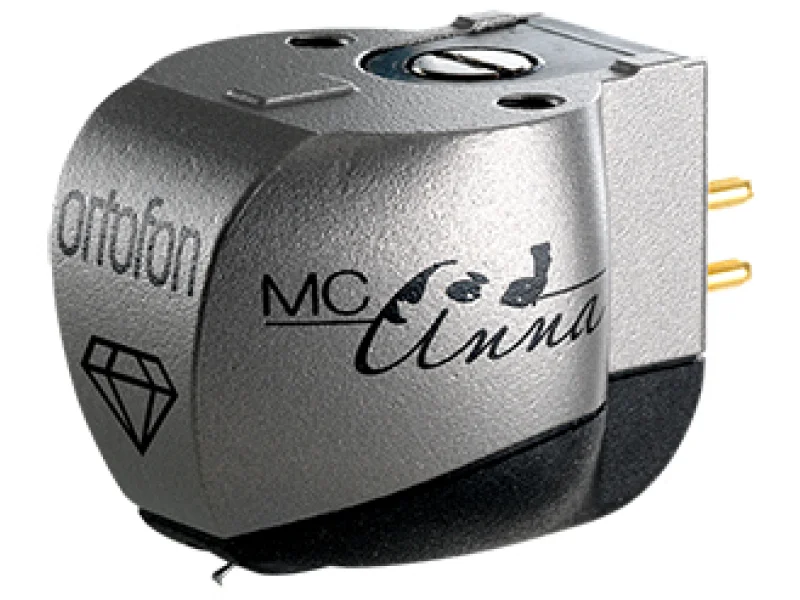

Ortofon ORTOFON MC ANNA DIAMOND

ORTOFON MC ANNA DIAMOND

Hi-end cartridge

€ 8.499,00 € 6.799,00
Product not available, contact us

Code: 28875417

All our products are covered by Italian warranty.

Nuovo
Wishlist

The MC Anna Diamond model represents the highest echelon of Moving Coil cartridges.
As its name suggests, the MC Anna Diamond uses a Diamond cantilever that in combination with Ortofon Replicant 100 diamond offers extreme transparency, speed and responsiveness beyond that of any other combination.
This state of the art product, representative of numerous Ortofon design elements and ideas, is truly exemplary of the highest degree of performance possible in contemporary analogue playback technology.

Technical data
Output voltage at 1000 Hz, 5cm/sec.  -  0.2 mV
Channel balance at 1 kHz  -  0.5 dB
Channel separation at 1 kHz  -  25 dB
Channel separation at 15 kHz  -  22 dB
Frequency response  -  20 Hz - 20 kHz +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force  -  80 µm
Compliance, dynamic, lateral  -  9 µm/mN
Stylus type  -  Special polished Nude Ortofon Replicant 100 on Diamond Cantilever
Stylus tip radius  -  r/R 5/100 µm
Tracking force, recommended  -  2.4 g (24 mN)
Tracking angle  -  23°
Internal impedance, DC resistance  -  6 Ohm
Recommended load impedance    > 10 Ohm
Cartridge body material  -  SLM Titanium
Cartridge colour  -  Silver/Black
Cartridge weight  -  16 gram
