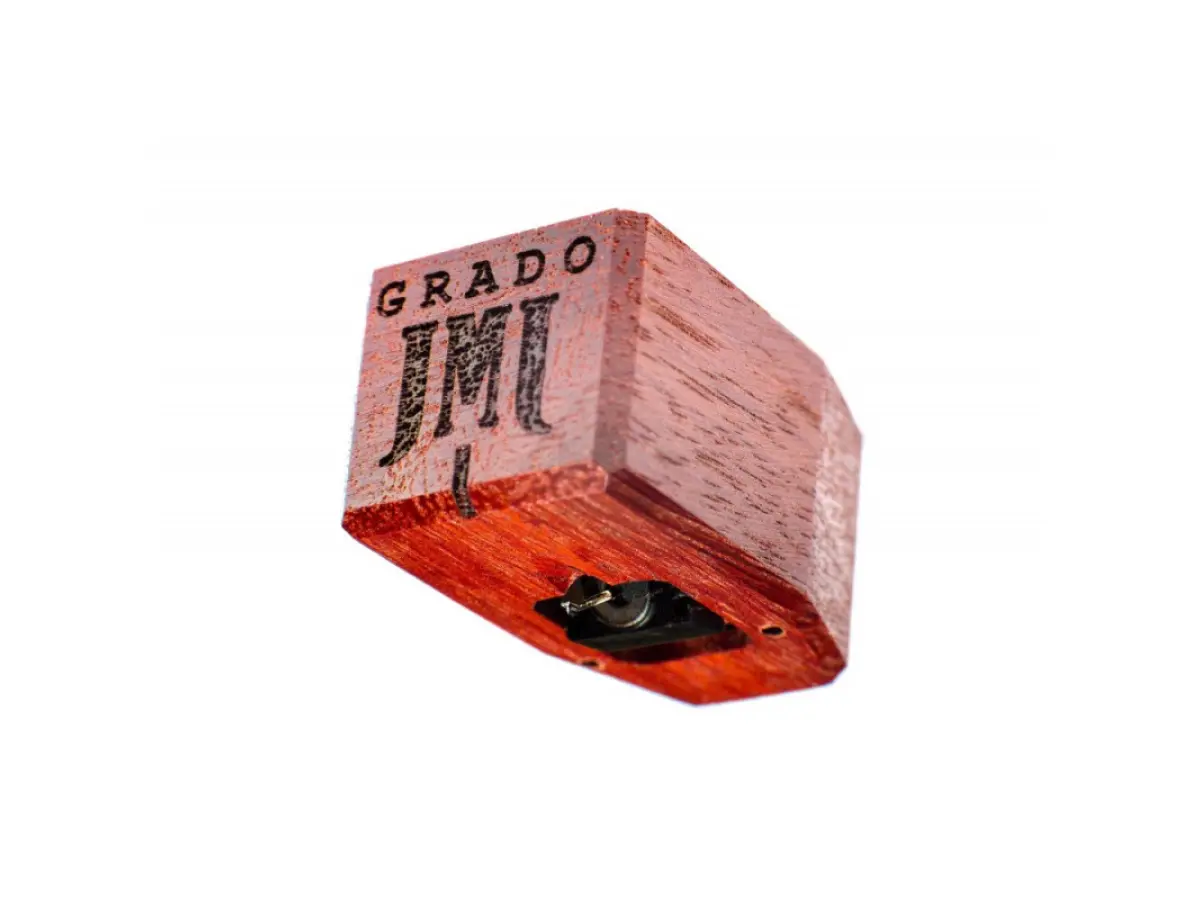

GRADO REFERENCE PLATINUM 3

The Platinum3 and Sonata3 models use a modified four piece OTL cantilever technology achieving a 10% tip mass reduction over the Prestige series and ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Platinum3 model uses Grado's specially designed elliptical diamond, and the Sonata3 model uses Grado's specially designed nude elliptical diamond.

Body: Australian Jarrah Wood
Cantileaver: Aluminum / Elliptical Diamond
Output:
High 4.0mV @5 CMV (45)
Low 1.0mV @5 CMV (45)
Inductance:
High Output 55mH
Low Output 6mH
Resistance:
High Output 660 ohms
Low Output 70 ohms
Input Load: 10k-47k ohms
Cartridge Weight: 9 grams
Tracking Force: 1.6-1.9 grams
Compliance 20?m/mN
Channel Separation: Average 30db - 10-30k Hz
Controlled Frequency Response: 10-60 KHz
Non-Sensative to Capacitive Load
