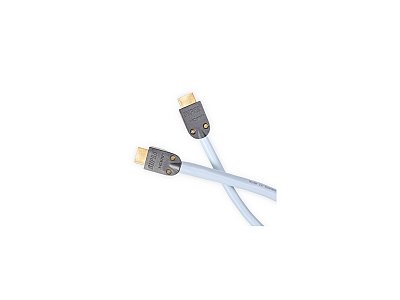

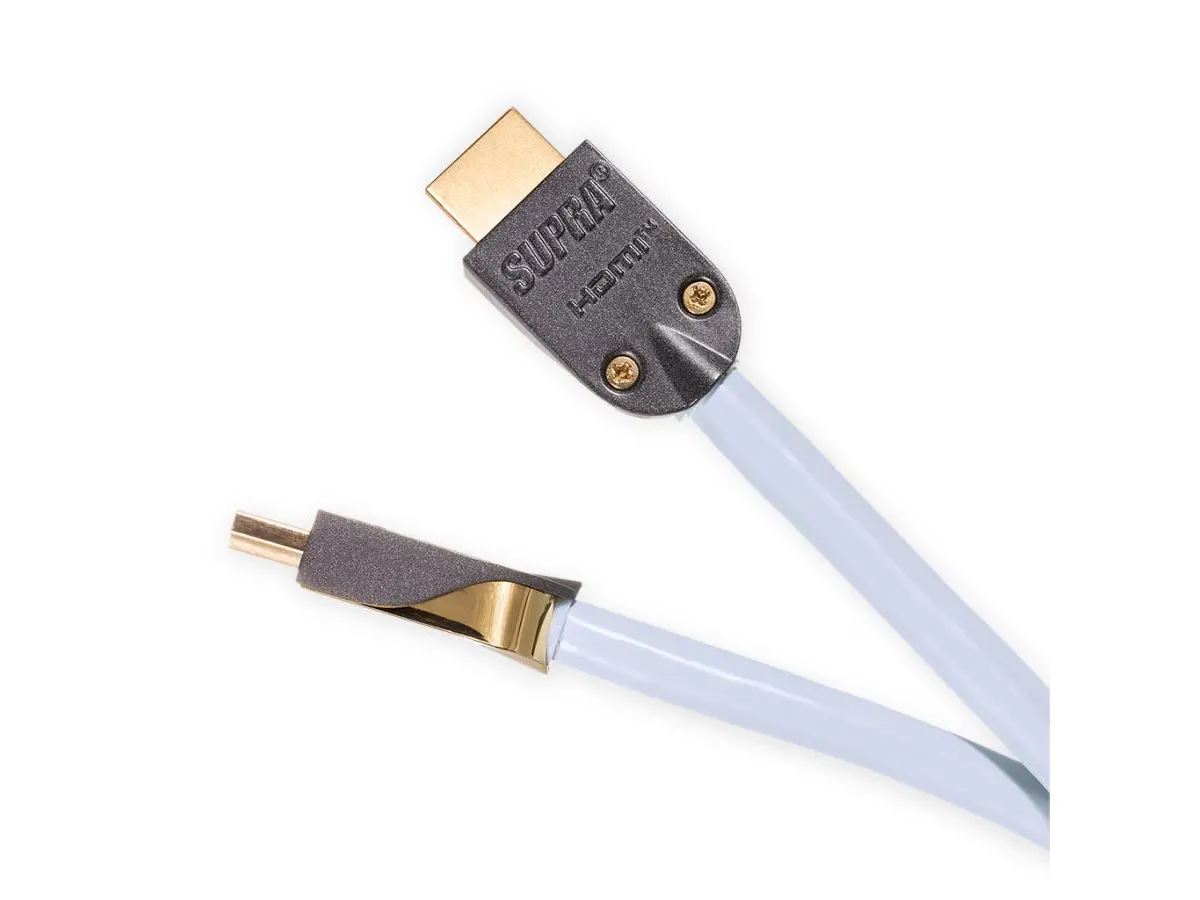

SUPRA CABLES HDMI-HDMI UHD8K (7mm)

UHD8K HDMI Cable (7mm)
HDMI Ultra High Speed with Ethernet Cable
HDMI cables 0.5m to 5m is assembled with UHD8 slim cable. Approved for HDMI v2.1 8K/HDR up to 5m.

From the start and on, we have delivered trustworthy HDMI cables, hence our reputation on the installation market, where we supply large quantities to hotels, conference facilities and similar, and where no one overlooks sub-standard performance. Nine years of continuous product development has resulted in the Supra HD5 HDMI Met-S/B, which (according to us) is the best passive HDMI cable there is, offering HDMI High Speed with Ethernet & 8K resolution.

Ultra High Speed HDMI with Ethernet transmission
SUPRA launched its first HDMI cable in 2004. Already from the very beginning, the HDMI standard and its contact gave most manufacturers a hard time to achieve perfect performance. Yet many cables were launched claiming fluent transmission, a fact many customers soon found reason to doubt. When we at Supra started our development, we knew how challanging this would become and left nothing to chance.

We know also the burden of proof, why we test and approve in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA - a quality assurance treat to our customers.

With the addition of our smart contact Supra Met-B/S, the cable is now possible to route in 20 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.

ULTRA HDxv Color
The Trick
How you get a bent and too big connector through a small conduit pipe (minimal Ø 20mm for conduit pipe and 25mm for conduit tube).

1. Can you pull this connector through a conduit pipe
2a. All parts are easily detachable.
2b. These are the parts of the dis-assembled connector.
2c. The soldered part is overmoulded for protection.
3. Nylon braid is used as an aid to pull the cable through the conduit. Fasten the braid to the pulling tool with a knot.
4. Picture showing how much space there is left in a 20mm pipe.
5. As you can see, despite the sharply bent pipe, the cable got through, effortlessly.
6. Assembled cable and connector ready for use.

SUPRA HDMI Features & benefits
Transmits today’s challenging formats flawlessly
Future proof - Meets today’s HDMI standard and known requirements of tomorrow
Sturdy design - Withstand the normal installation abuse
up to 23AWG leads - For minimum losses
Triple screen technology - Provides for long distance clearance hence freedom of installation with maintained signal integrity
Made in Sweden, three step quality plan - Unsurpassed quality and reliability

High resolution picture and sound
We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream? Yes, it is a stream of digital bits. Yes, it does matter. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.

SUPRA Ultra High Speed HDMI with Ethernet Cable (v2.1) in short:
TMDS Bandwidth: 48 Gbit/s
Color Depth: 48 bit (16 bit per color channel)
Maximal resolution: 8K/HDR 7680×4320@60Hz
Deep Color, x.v.Color
Auto Lip Sync
Dolby TrueHD, DT-HD Master Audio
3D over HDMI
Audio Return Channel
Ethernet Channel

Specifications
HDMI standard v2.1, Ultra High speed with Ethernet
Connection configuration Single-Link
Connectors HDMI-HDMI Met-S
Signal direction Bi-directional
Included HDMI connectors 2 x Supra Met-S (straight)
Additional connectors Supra Met-B (bent housing sold separately)
Applications e.g. Bluray / Projector / TV / DVD / TV-decoders
Max resolution for cable length interval in passive appliances
8K @ 60Hz w / HDR: up to 5 meter

Solder tin Almit SR-34 Super
Cable clamping Molded connector body fitted in aluminum housing
Cable UHD
Lead area, 0.5 - 5m: 5xTMDS 0.128 / 26 (HD5 / S) mm2 / AWG
Lead material Solid strand oxygen-free copper
Di-electric (insulation) Air-injected PE foam for minimal capacitance
Inner shield / coverage: Aluminized PET foil / 100%
Communication leads (UHD8) 5 x 0.081 / 28 (di-electric: PE) mm2 / AWG
Outer shield / coverage: Aluminized PET foil and braid / 100%
Jacket Heat an age resistant PVC
Flame retardancy: No, see FRHF Version
Cable outer dimension 7 mm

Electrical performance
Resistance Rev. Ohm / km
Capacitance Rev. pF / m
Characteristic impedance 100 Ohm
Velocity factor 0.8 x C (speed of light)

Caratteristiche
Connettore 1    HDMI Type A (Standard)
Connettore 2    HDMI Type A (Standard)
