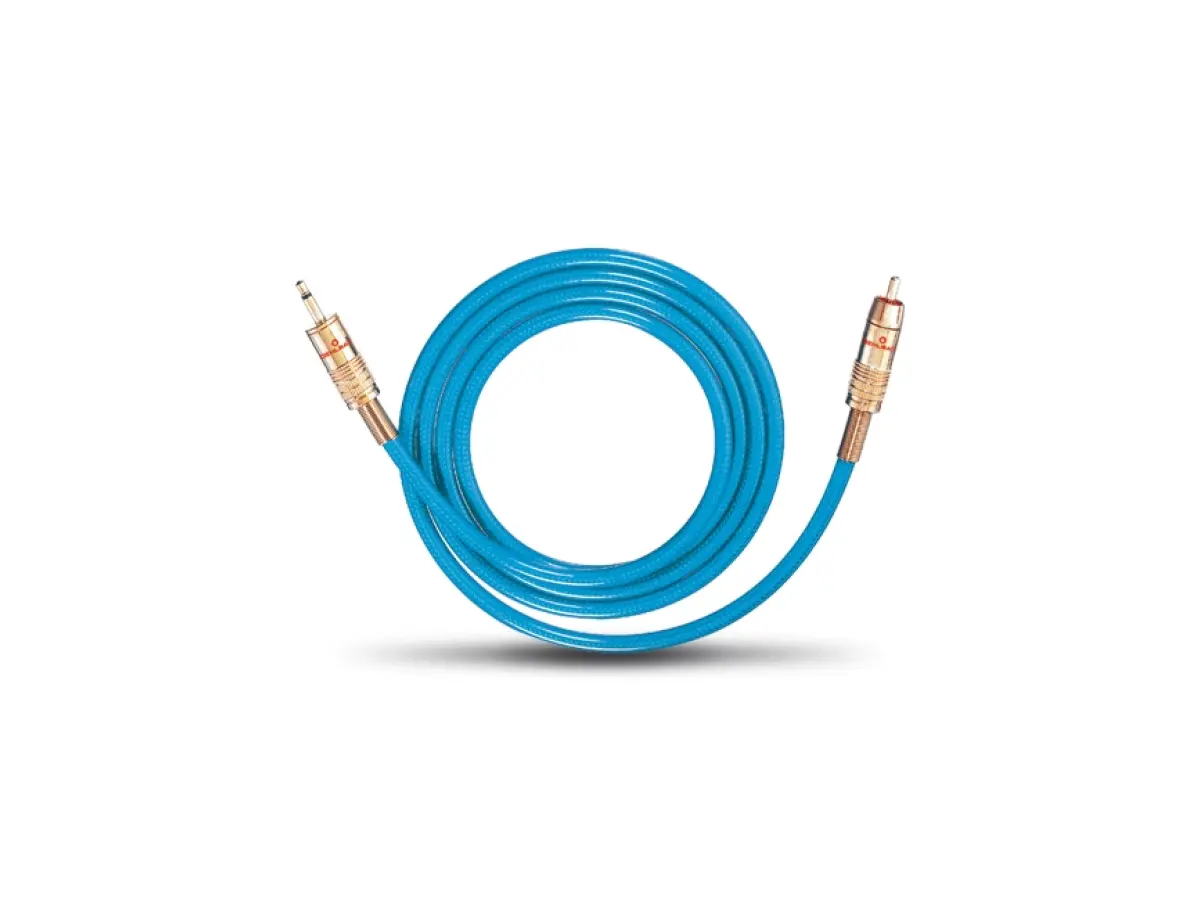

OEHLBACH NF 113

LF audio cable, 3.5 mm audio jack to RCA
Excellently made preassembled digital-electrical audio cable for connecting digital soundcards
(PCs) to hi-fi and home-cinema systems! The constant impedance of 75 ohm and the particularly
high-quality inner conductor made from oxygen-free copper (OFC) mean that the particularly
stable and true-to-life transmission of signals can be achieved with this Oehlbach cable. Metal
cinch plugs and audio jacks plated with 24-carat gold guarantee perfectly reliable contact and
pleasant handling. The robust and flexible outer sheath makes this cable fit for all purposes
while simultaneously guaranteeing long life spans.

Features
Robust plastic sheathing
Solid full-metal plug
24- carat gold-plated contacts
OFC - oxygene free copper
Coaxial cable layout
75 ohm wave impedance

Technical Data
Designation Art. No. Unit Colour
NF 113 / 150 9055 1.5 m Blue
NF 113 / 300 9057 3 m Blue
NF 113 / 500 9058 5 m Blue
Inner conductor material OFC - oxygene free copper
Cable sheathing plastic
Shielding quantity double shielding
Shielding material 1 x aluminium foil + 1 x copper braid
Plug design Full-metal screw-type plug
Special length Also available in individual customised lengths
Cable geometry Round
Characteristic wave impedance 75 ?
Plug type Straight
