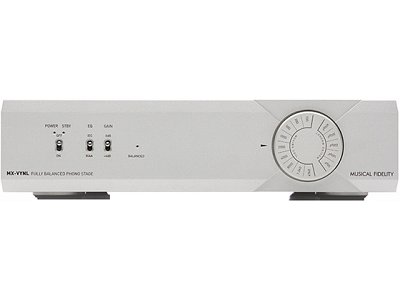

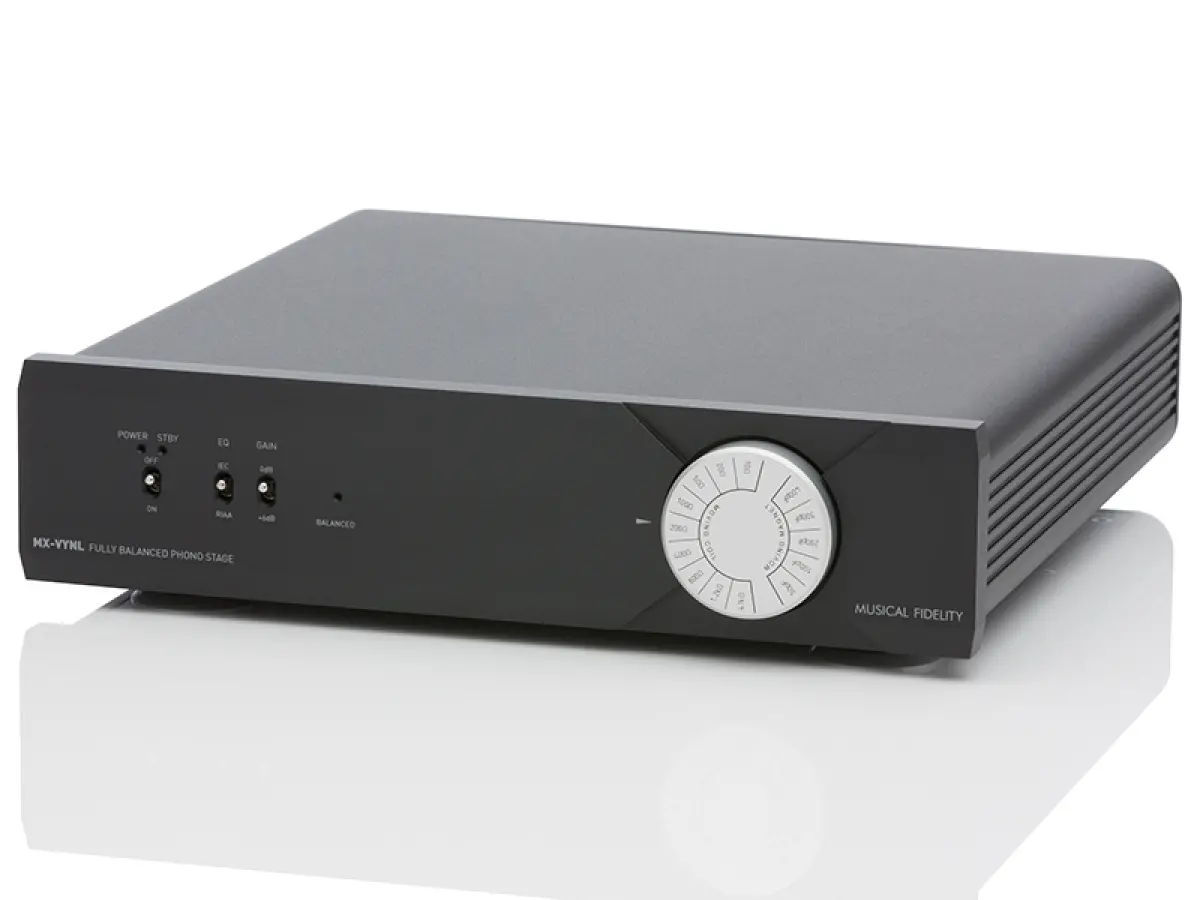

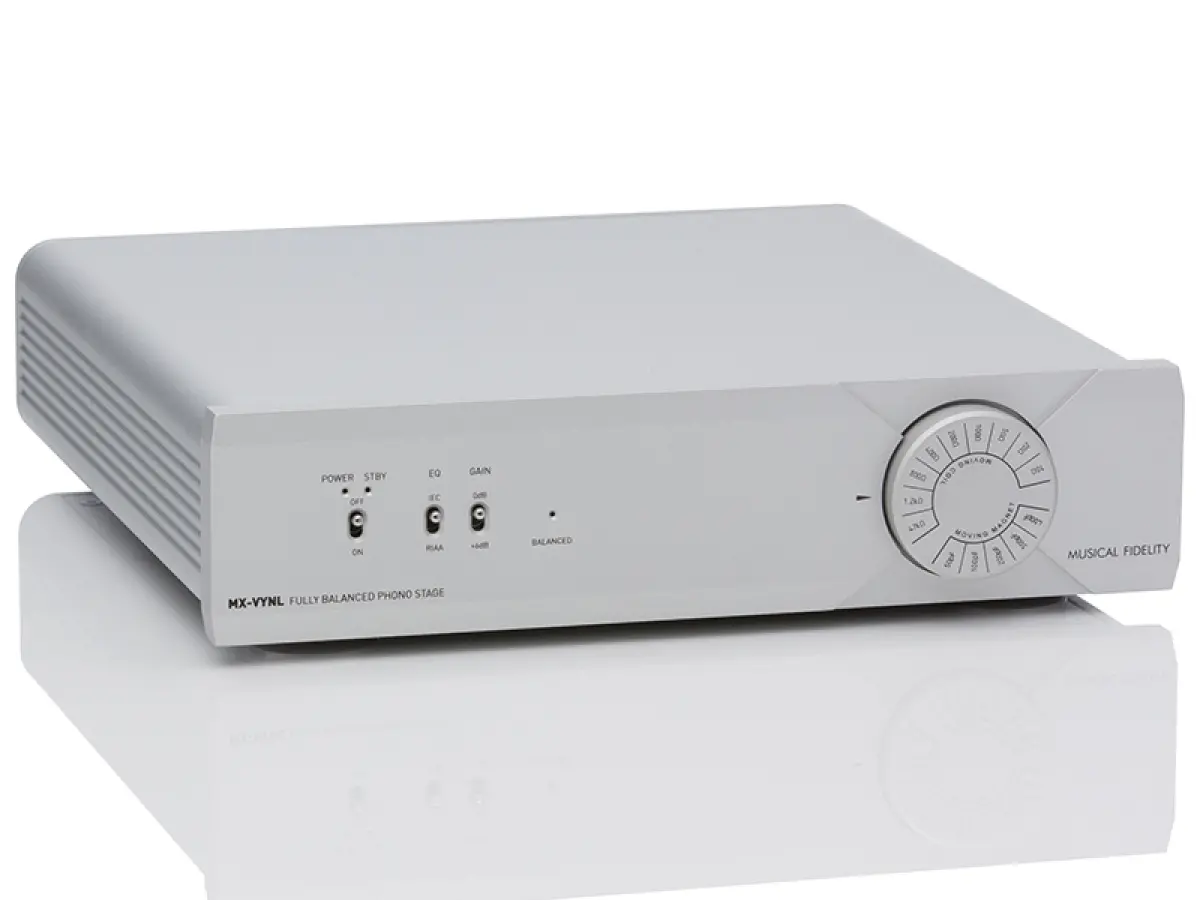

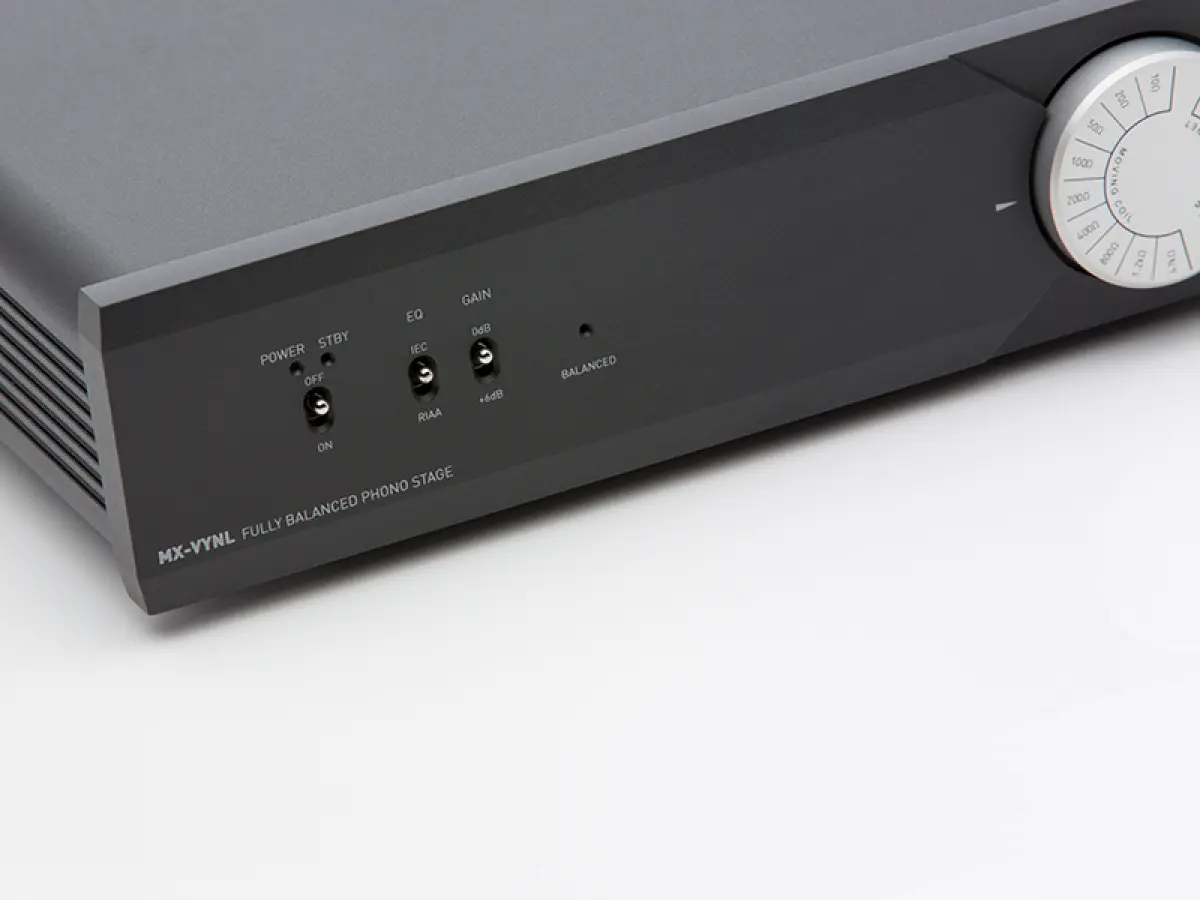

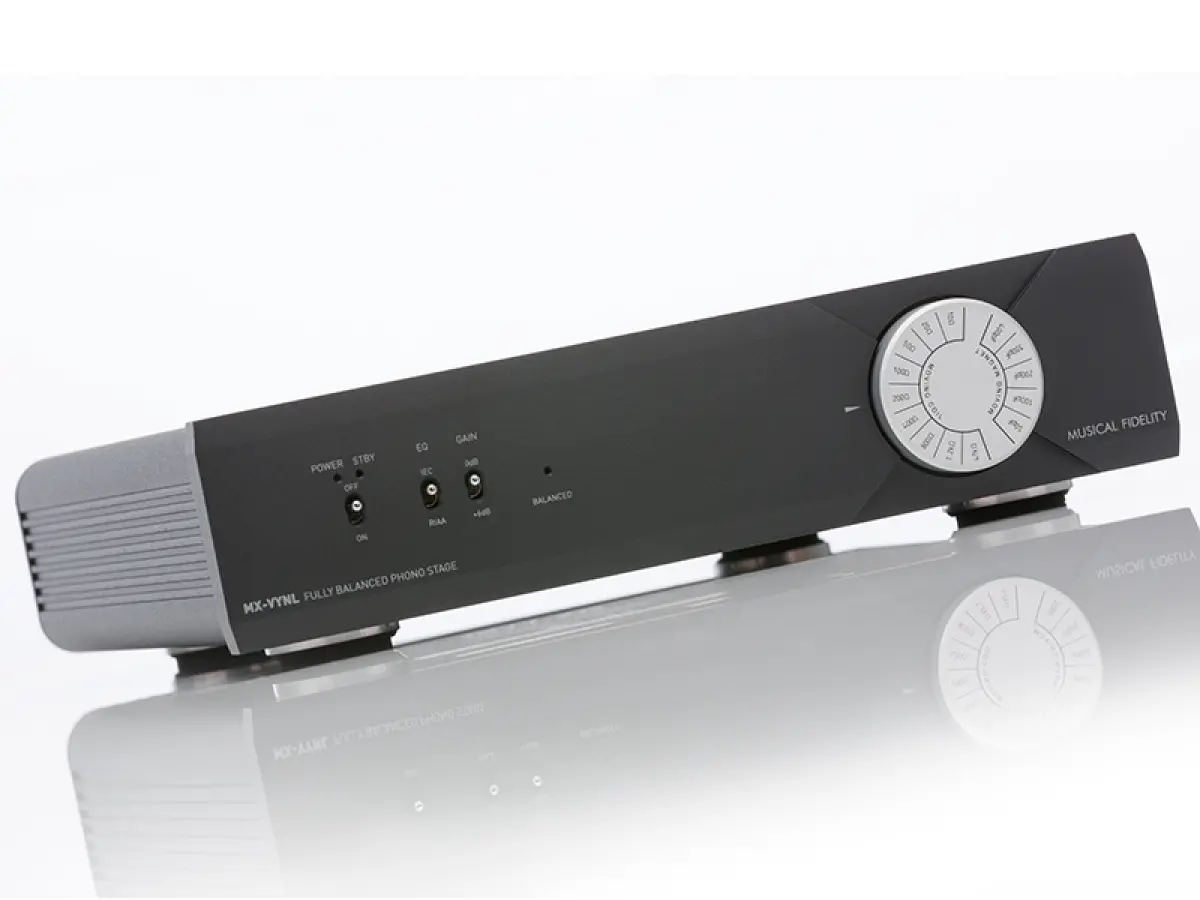

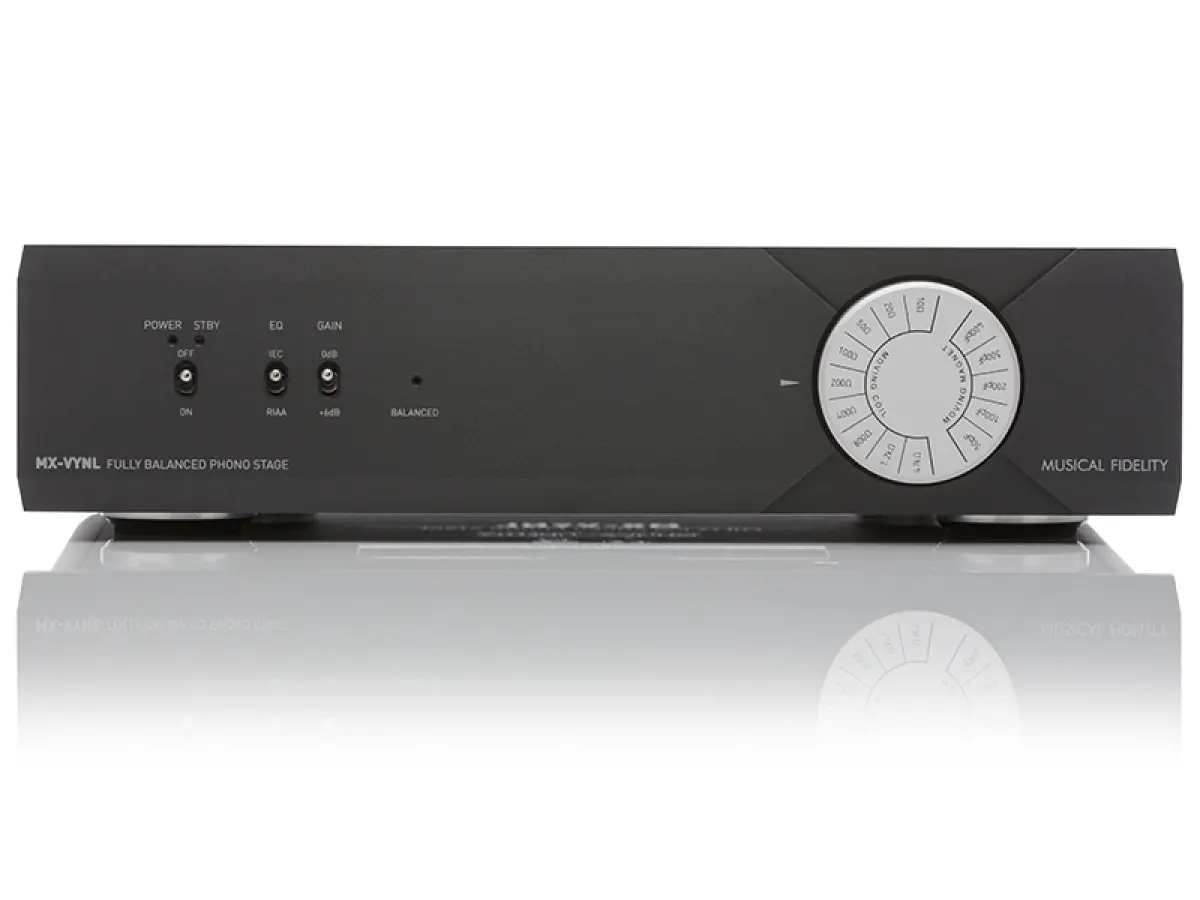

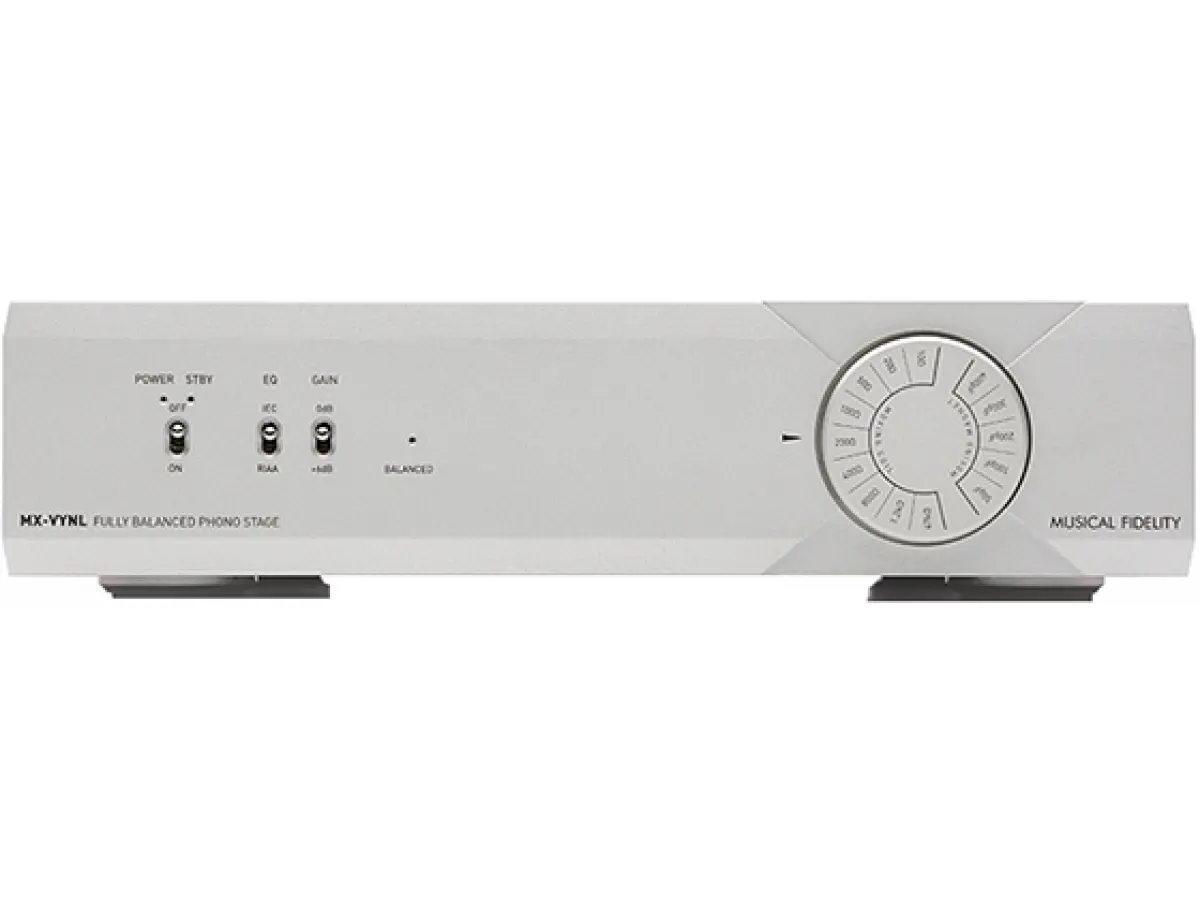

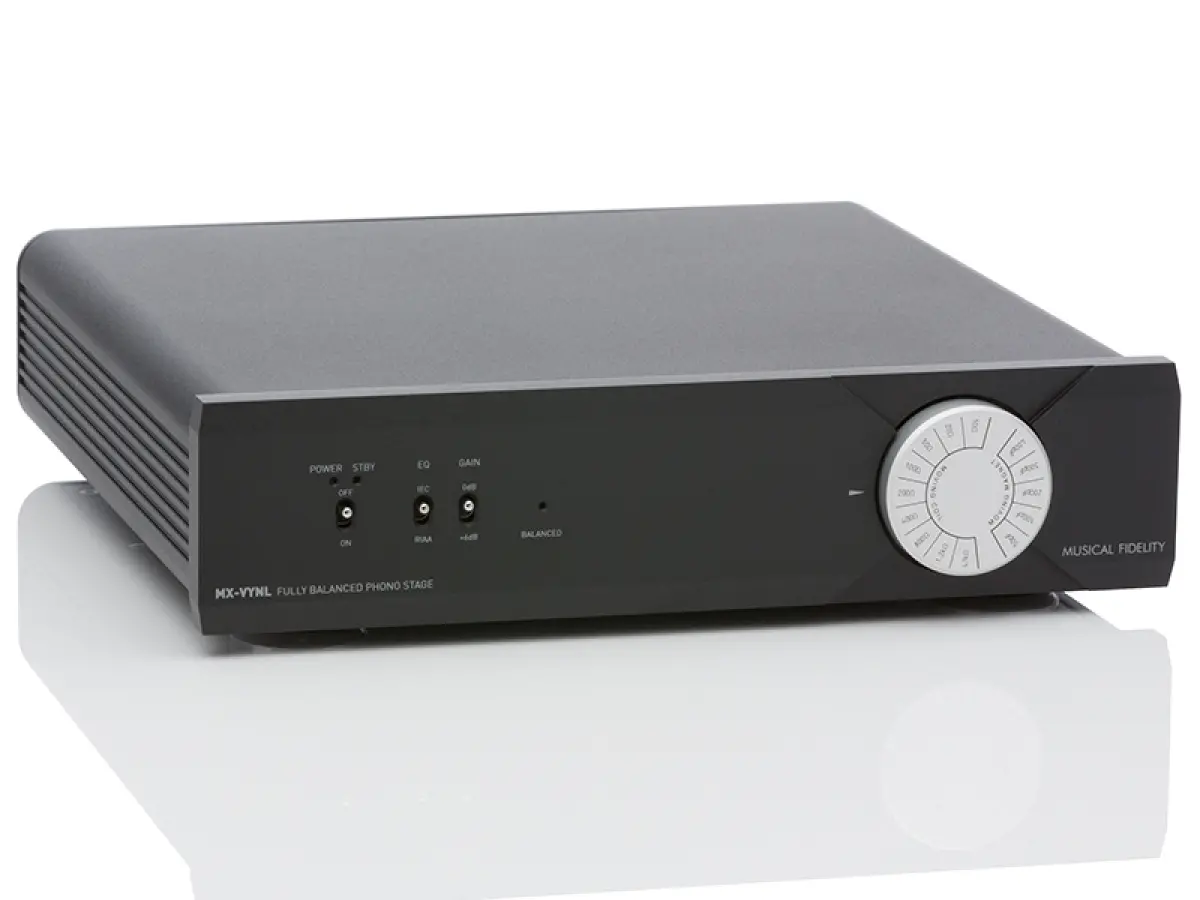

MUSICAL FIDELITY MX-VYNL

The MX-VYNL is a fully balanced, very high performance phono stage, able to operate with virtually any moving coil or moving magnet cartridge. With both traditional RCA inputs and our unique XLR fully balanced connection the MX-VYNL can be connected to 2 turntables simultaneously.
The MX-VNYL offers a wide range of input impedance settings for moving coil cartridges as well as several capacitance settings for moving magnet units. Unlike many of our competitors units the MX-VYNL allows easy adjustment of these settings while playing. This allows easy experimentation and tuning to find the optimum setting for all your equipment.
The MX-VYNL also includes our renowned RIAA correction that offers extremely accurate results to beyond 80kHz. That may sound extreme, but there is a good deal of information above 20 kHz that needs correction. If it isn’t corrected, it will show itself as ringing and overshoot.
With both extraordinarily low noise and exceptional overload margin the MX-VYNL can comfortably handle even the most demanding of cartridges and satisfy the most discerning of listeners.

Features:
Fully balanced XLR and traditional RCA inputs
Fully balanced XLR and traditional RCA outputs
Fully isolated inputs allow for switching between two turntables at once
Adjustable input impedance on MC whilst it is playing
Adjustable capacitance on MM whilst it is playing
Very wide overload margin
Accurate RIAA to beyond 80kHz
Incredible noise ratio
Low impedance output
State of the art SMD technology
Beautiful aesthetics and build quality


Specifications

Output
4 Volts RMS single ended from RCA sockets
8 Volts RMS balanced from XLR sockets

Performance
Frequency response: RIAA ±0.1dB IEC ±0.1dB

MM:
Channel separation: < -86dB
SNR A-wtd: < -101dB
THD: < 0.007%
XLR input: 5mV / 2.5mV selectable
70mV max (23dB headroom)

MC:
Channel separation: < -83dB
SNR A-wtd: < -98dB
THD: < 0.01%
XLR input: 0.8mV / 0.4mV selectable, 12mV max (24dB headroom)

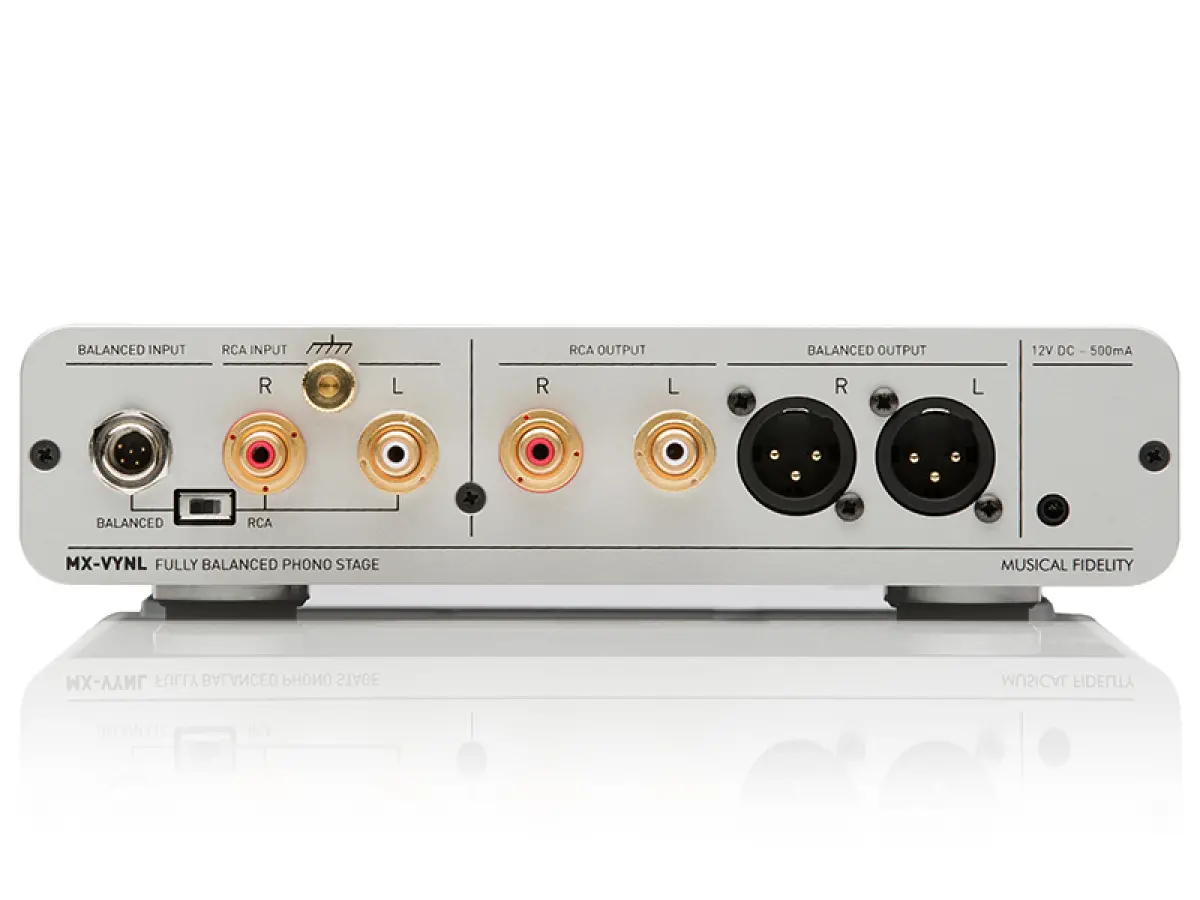

Inputs
Balanced Mini-XLR
RCA 1 pair RCA sockets

Outputs
Balanced XLR male sockets EIA Standard RS-297-A
RCA 1 pair RCA sockets

Power
Connector: 1.3mm pin DC power jack
Outboard power supply: 12V/500mA DC
Mains voltages 100-240VAC 50-60Hz universal worldwide supply
Consumption < 8 watts

Weight
Weight (unpacked / packed): 1.9Kg / 2.4 Kg

Dimensions
Width 220 mm (8???”)
Height (including feet) 53 mm (2”)
Depth (front to back) 215 mm (8½”)

Included accessories
Mains adaptor
