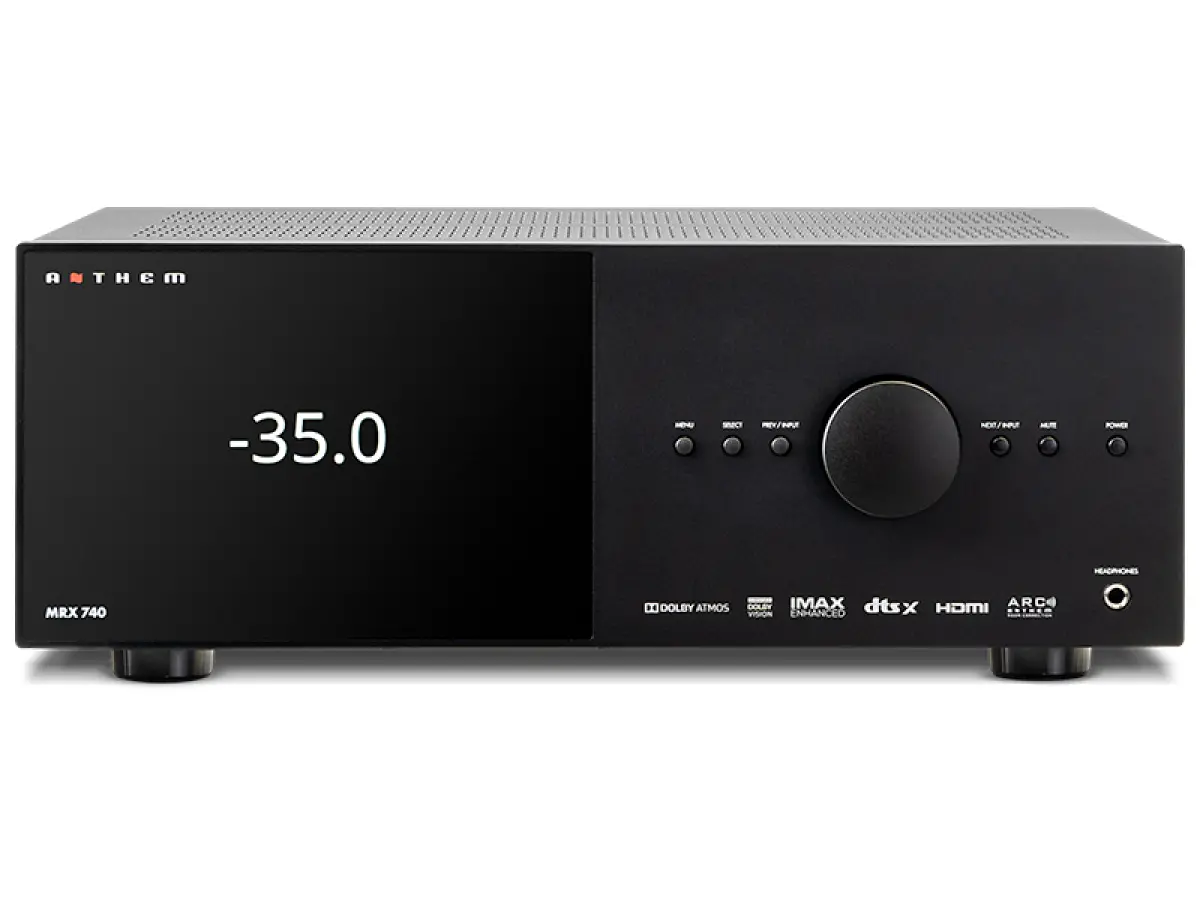

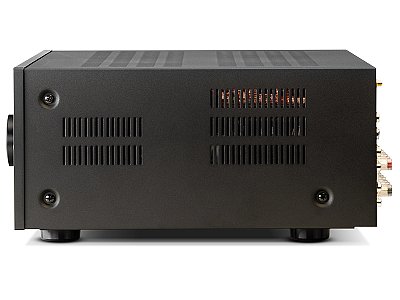

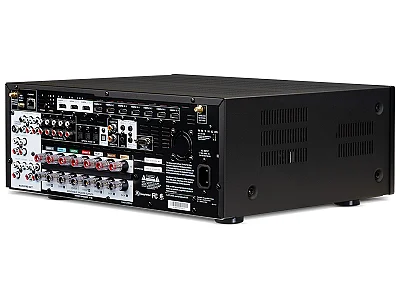

ANTHEM MRX 740 8K

ANTHEM – PURE PERFORMANCE, PURE VALUE
Anthem’s MRX A/V Receivers are about maximizing performance for the money. Building on the feature set of our previous models, we’ve added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.
The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 HDMI inputs and 2 outputs, plus eARC. Ultra HD signals are passed through unaltered up to 18.2 Gbps with Dolby Vision, HDR and Hybrid Log Gamma support.

Explore The New MRX Series
New features, capabilities and robust integration position Anthem MRX Series as the ultimate power center of premium home theater and audio.
Feel the story’s full emotional impact, bringing your entertainment to life with an ultravivid picture, brighter highlights, and darker shadows.
Sound has never sounded this good. Feel a deeper connection to the stories and music you love with sound that moves all around you with breathtaking realism.
DTS:X is the next generation audio codec from DTS that leverages object-based audio to enable new audio experiences in immersion and interactivity.
IMAX ENHANCED is the only way to experience IMAX’s signature picture, sound and scale in the home, IMAX Enhanced combines digitally remastered 4K HDR content and DTS audio technologies with best-in-class consumer electronics products and streaming platforms.

Introducing anthem Web User Interface
Anthem Web User Interface is now built in to all MRX Receivers and AVM Processors. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the main or second zone on and off, adjust volume, change audio modes or tweak channel trims for a perfect surround sound experience. Web UI can also be used to calibrate speaker delays and levels and configure network settings/control options. Source devices can be renamed, simplifying set up by enabling the elimination of unused inputs. Installers can import and export files to make remote management simple and convenient.

Channel Re-Assignment
MRX Series Receiver channels can be assigned in many ways. Unused amplifier channels can be re-assigned to Bi-Amplify demanding front speakers, power surrounds, presence speakers, or a second zone (Available on MRX 1140 and MRX 740).
Configure amplifier channels for your system's needs, then perfect the presentation with ARC Genesis.

Design
At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.

The Anthem Advantage
Backed by over 35 years of home-grown,hands-on design, and innovative audio engineering experience, Anthem products provide an unprecedented level of reliability and functionality; delivering one of the industry’s highest performance/price ratios. This is just one reason why Anthem electronics are the choice of knowledgeable audiophiles, professional musicians and engineers the world over.


PREAMPLIFIER
Maximum Output (<0.1% THD)     5.2 VRMS, 7.1VRMS
Frequency Response     20Hz - 30KHz +/-0.2dB
Frequency Response, Analog-Direct     N/A
THD+N (2 Vrms output)     -100 dB
S/N Ratio (2 Vrms output, IEC-A filter)     110 dB
PREAMPLIFIER + AMPLIFIER (1 W output)
MRX 1140 / MRX 740     SNR: 91 dB ch 1-5, 86dB others
MRX 540     SNR: 91 dB ch 1-5
SPEAKER IMPEDANCE
Compatible with 4 Ohms or higher impedance.
MAXIMUM CONTINUOUS OUTPUT (1% THD)
      MRX 1140     MRX 740     MRX 540
Channels 1-5, Two Driven into 8 Ohms     140 W     140 W     100 W
Channels 1-5, Two Driven into 6 Ohms     170 W     170 W     130 W
Remaining Channels, Two Driven into 8 Ohms     60 W     60 W     n/a
Remaining Channels, Two Driven into 6 Ohms     75 W     75 W     n/a
POWER CONSUMPTION
      MRX 1140     MRX 740     MRX 540
Typical Load     570 W     485 W     365 W
Standby     0.3 W     0.3 W     0.3 W
Standby IP Control Enabled     1.8 W     1.8 W     1.8 W
Standby HDMI Bypass Enabled     4.9 W     4.9 W     4.9 W
DIMENSIONS
Height (without feet)     6" (15.24 cm)
Height with Rackmount Kit     4U
Width     17" (43.18 cm)
Depth (including wifi ant not power cord)     14-1/2" (36.4 cm)
WEIGHT
MRX 1140     33.6 lb (15.2 Kg)
MRX 740     33.2 lb (15.1 Kg)
MRX 540     28.2 lb (12.8 kg)
POWER REQUIREMENT
120 V version:     In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version:     In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
