PROJECT HEAD BOX S2 DIGITAL

High performance DAC and headphone amplifier

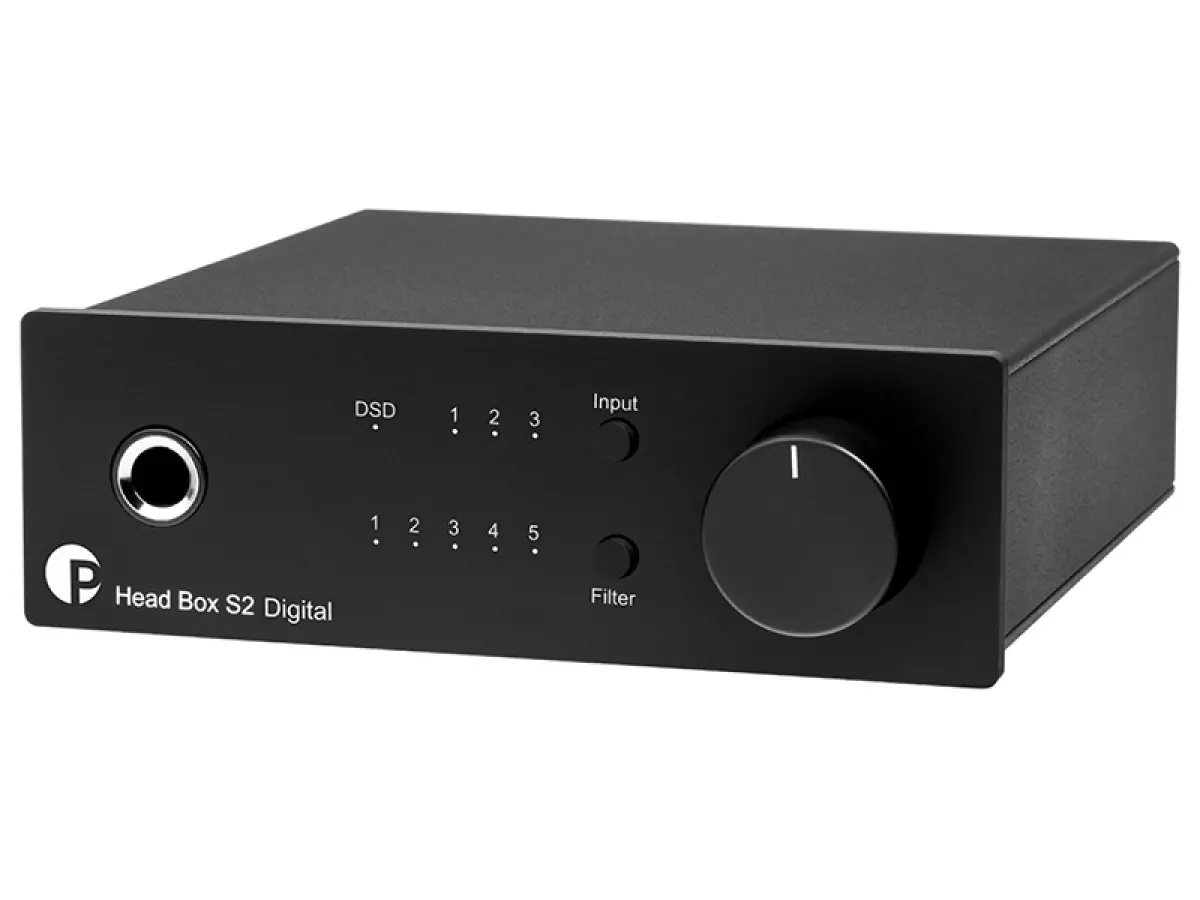

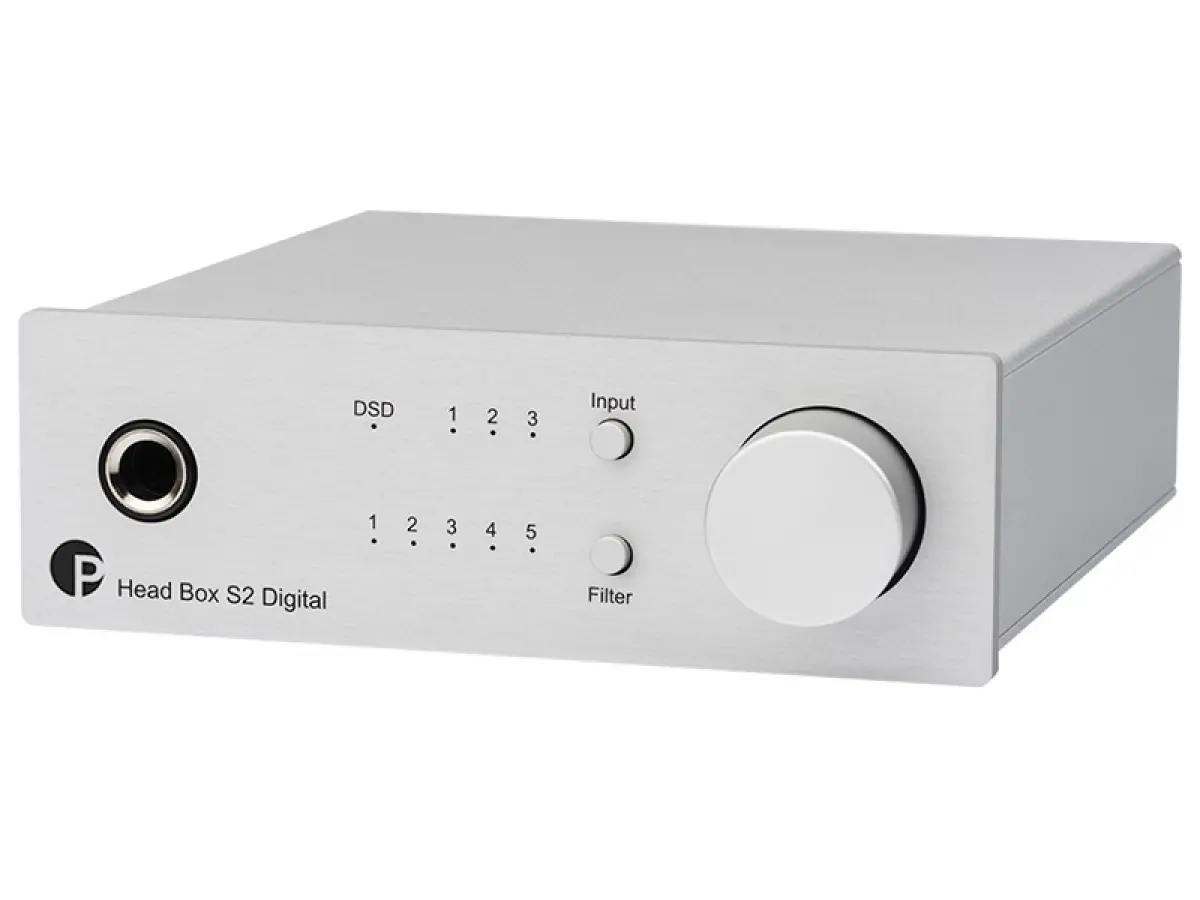

Head Box S2 Digital comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). Head Box S2 Digital also comes with five digital filters for soundshaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution data up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. The front seated 6.35mm headphone output delivers a clean and precise sound with a musical touch. Unwanted noise coming in through USB is double filtered to surpress them to a level where it can’t affect audio to realize an undisturbed listening experience. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference! Head Box S2 Digital comes in silver or black.

Features
High end ESS Sabre ESS9038 DAC
Proprietary clock circuity design
Organic polymer capacitors and thin film miniMELF resistors
32bit / 768kHz decoding
DSD64, DSD128 & DSD256 (DSD over PCM)
Up to 24bit/192kHz for optical & coax inputs
5 selectable digital filter characteristics
1 proprietary optimum transient digital filter
Headphone output on the front (6.3mm)
Synchronization of all internal oscillators
Jitter as low as 100 Femtoseconds!
Gold plated four layer PCB
Full alu/metal sandwich casing in silver or black

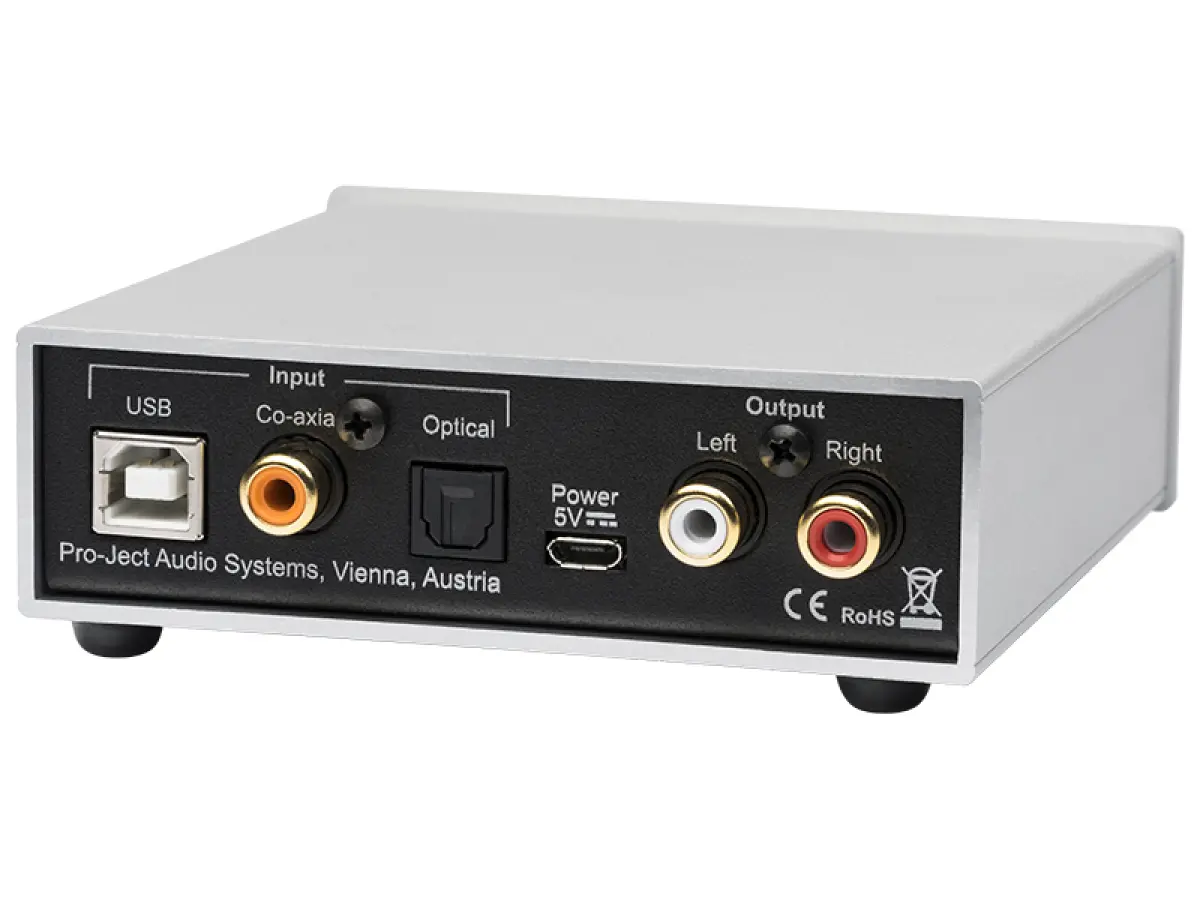

Digital inputs    1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
D/A-converter    1x ESS9038Q2M 32 bit
USB    up to DSD256, PCM up to 32b/768kHz
Coaxial    PCM bis 24 b / 192 kHz
Optical    PCM bis 24 b / 192 kHz
Filter settings    5 different selectable on front
Frequency response    20 Hz - 20 kHz
Analogue outputs    6.3mm Headphone (front), 1x Pre Out (RCA)
Output voltage    2,05 Veff
Headphone output power    68 mW /32 Ohm, 6.6 mW / 600 Ohm
THD    0,0007% at 0 dB, 2 V RMS, 1 kHz
Dynamic range    120 dBA
Outboard Power supply    5 V /1 A DC (included)
Dimensions W x H x D     103 x 37 x 122 (including knob and connectors)
Weight    360 g without power supply
